CORIO: A New Generation of Laboratory Circulators

23 Aug 2017

Emily Adam

Publishing / Media

The circulators of the CORIO series give users improved performance specifications, expanded functionality, and high value for the money. CORIO circulators from JULABO simplify daily work and routine tasks in laboratories, such as during basic research or materials testing. The new series includes a variety of models ranging from immersion circulators, open heating bath circulators, heating circulators as well as powerful refrigerated/heating circulators. An extensive range of accessories, such as inserts, tubes, adapters, and more ensures that CORIO units are readily adaptable to individual applications.

The Refrigerated/Heating Circulators of the new generation CORIO

The CORIO refrigerated/heating circulator models CD-601F, CD-900F, CD-1000F, and CD-1001F offer very high value for the money. With the addition of stepless, automatic adaptation of cooling capacity to the working temperature, they are very energy-efficient. With a working temperature range of -40 °C to +150 °C and heating capacity of 2 kW, the CORIO CD series is ideal for routine work and standard tasks. Depending on the unit, the stainless steel bath tanks have a filling volume of 5 to 56 liters. Pump capacity of all units is 15 l/min and 0.35 bar. As a result, these new refrigerated circulators have all the power they need to control the temperature of a wide variety of samples and applications.

The CORIO Heating Circulators

CORIO Heating Circulators feature professional technology for routine laboratory tasks. The portfolio permits a wide range of applications and includes immersion circulators, open heating bath circulators, and heating circulators. The CORIO C is the basic model of the CORIO circulator portfolio with a working temperature range of +20 °C* to +100 °C and pump capacity of 6 l/min and 0.1 bar. The bath attachment clamp is included in delivery and facilitates mounting of the circulator on any bath tank up to 30 liters. In addition to the advantages of the CORIO C Circulator, the CORIO CD Immersion Circulator can be equipped with an optional pump set for temperature control of external applications. With a working temperature range of +20 °C* to +150 °C and pump capacity of 15 l/min and 0.35 bar.

The Open Heating Bath Circulator of the CORIO series feature durable, high-quality transparent bath tanks or high-quality bath tanks made of stainless steel and pump connections. CORIO Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.

CORIO CD-601F

Refrigerated Circulator for internal and external applications with a great price-to-performance ratio.

Working temperature range -40 °C … +150 °C
Temperature stability ± 0.03 °C
Pump capacity 15 l/min and 0.35 bar
Heating capacity 2 kW
Filling volume: 8 … 10 liters
Bath opening / Bath depth: 22 cm x 15 cm / 20 cm
Dimensions: 36 cm x 46 cm x 74 cm

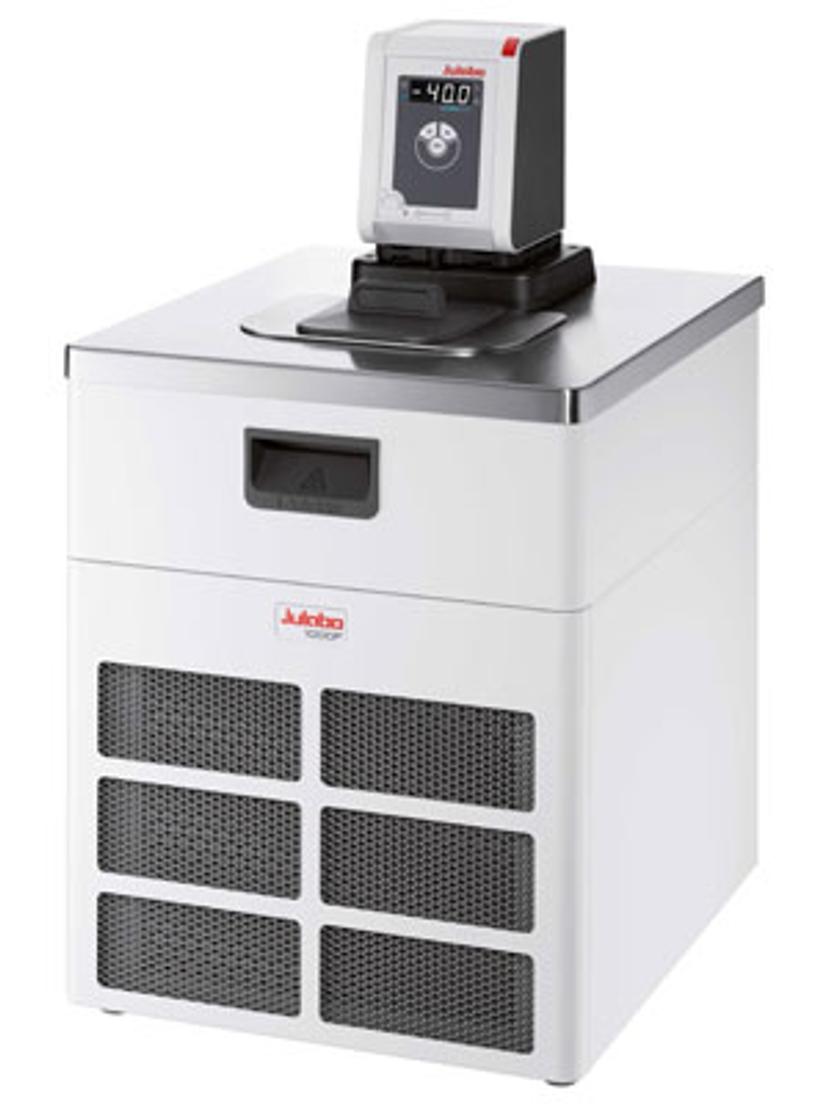

CORIO CD-1000F

Refrigerated Circulator Refrigerated Circulator for internal and external applications with a great price-to-performance ratio.

Working temperature range -40 °C … +150 °C
Temperature stability ± 0.03 °C
Pump capacity 15 l/min and 0.35 bar
Heating capacity 2 kW
Filling volume: 5 … 7.5 liters
Bath opening / Bath depth: 22 cm x 15 cm / 15 cm
Dimensions: 42 cm x 49 cm x 70 cm

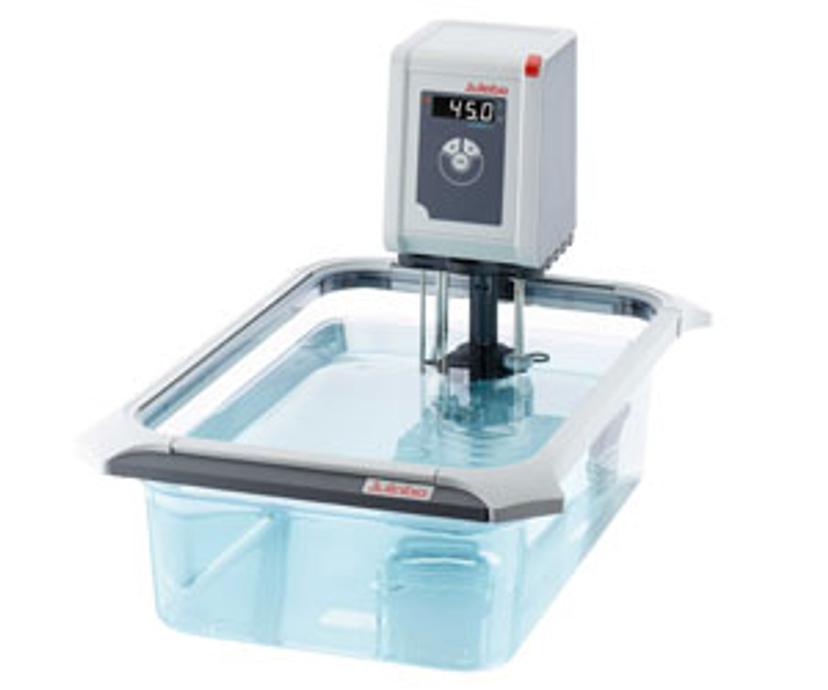

CORIO C-BT19

Open Heating Bath Circulators for internal temperature applications with durable, high-quality transparent bath tanks.

Working temperature range +20 °C* … +100 °C.
Temperature stability ± 0.03 °C
Pump capacity 6 l/min and 0.1 bar
Heating capacity 2 kW
Filling volume: 14 … 19 liters
Bath opening / Bath depth: 30 cm x 35 cm / 15 cm
Dimensions: 38 cm x 58 cm x 38 cm

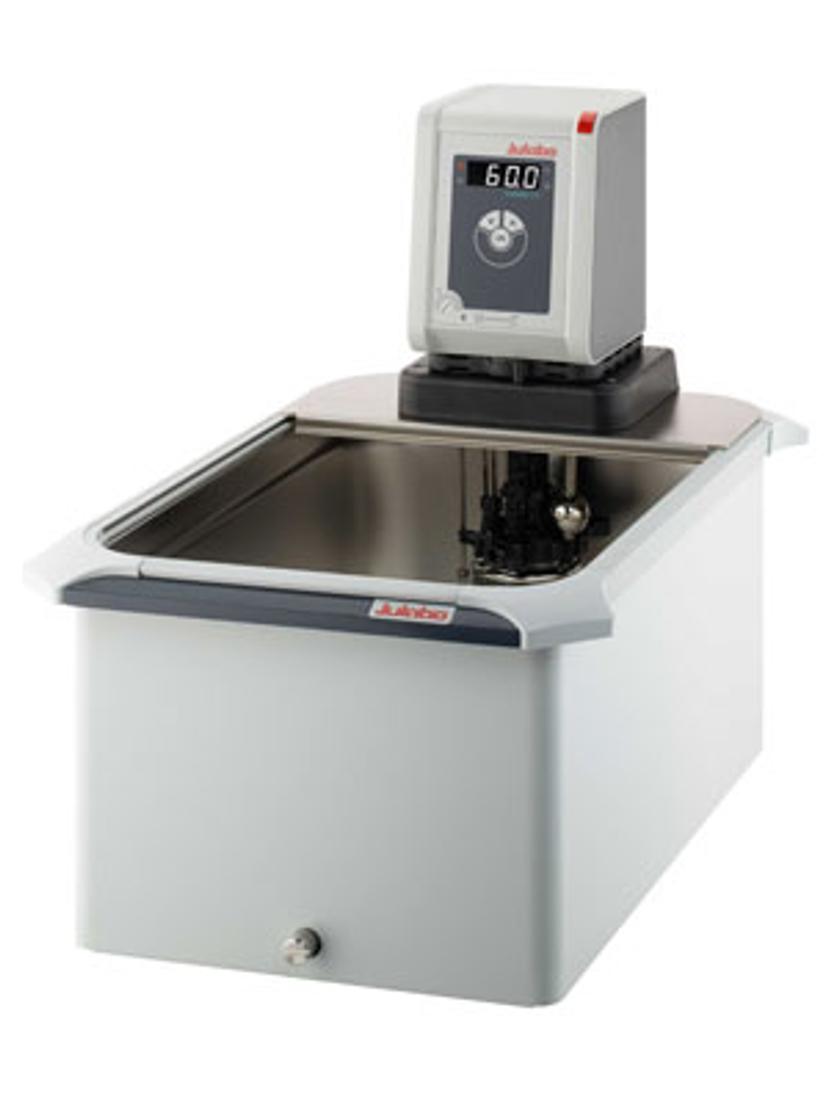

CORIO CD-B27

Open Heating Bath Circulators for internal and external temperature applications with high-quality bath tank made of stainless steel and with pump connections.
