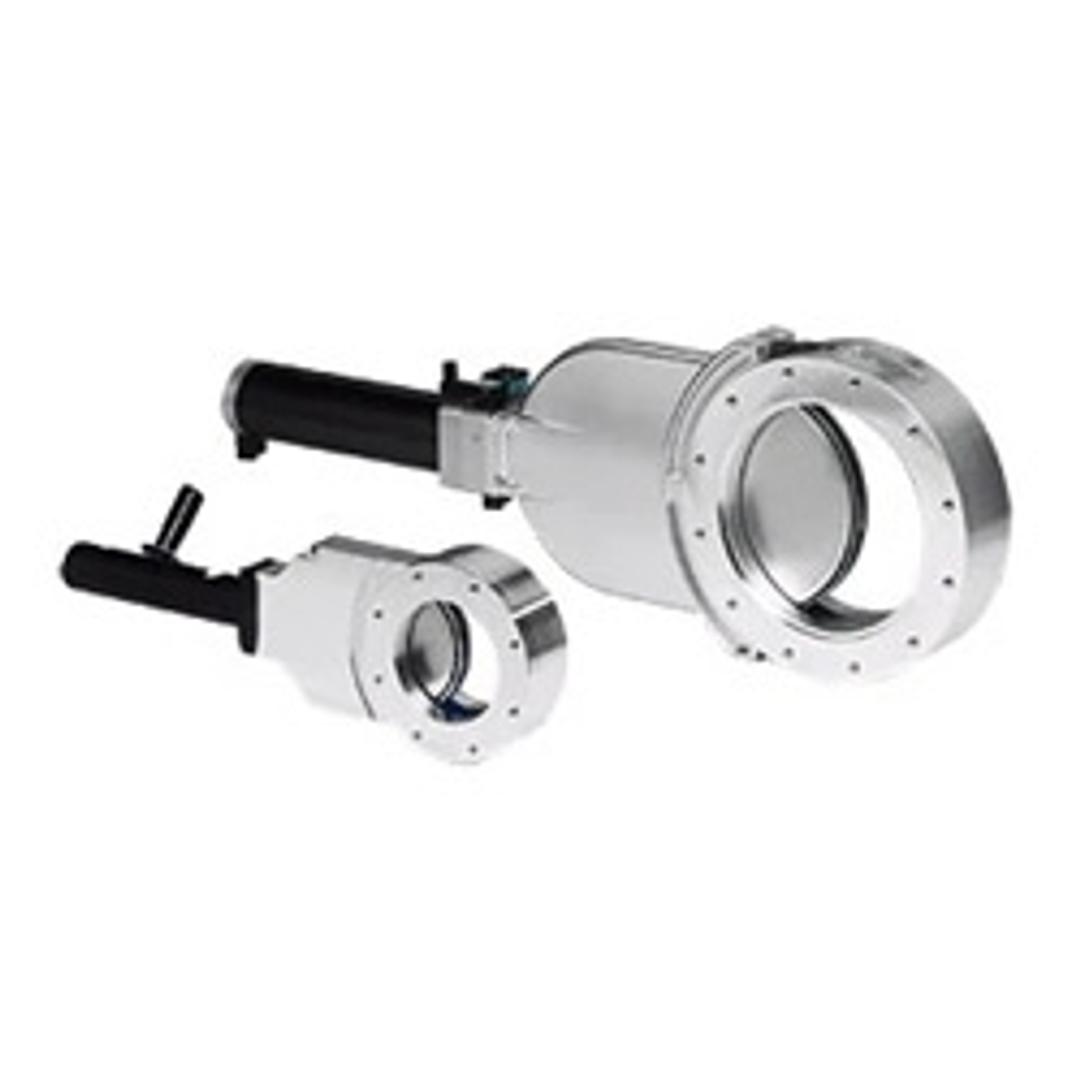

Aluminum Gate Valves Series 12
Agilent is pleased to offer Series 12 aluminum gate valves in partnership with VAT. The Series 12 valves provide a cost effective, low-particle, low-profile means of isolating a high-vacuum pump, and are a less expensive alternative to stainless steel valves. Series 12 valves are clean, economical, and smoothly actuated.
Receive your quote directly from the manufacturer.
Agilent is pleased to offer Series 12 aluminum gate valves in partnership with VAT. The Series 12 valves provide a cost effective, low-particle, low-profile means of isolating a high-vacuum pump, and are a less expensive alternative to stainless steel valves. Series 12 valves are clean, economical, and smoothly actuated.
The aluminum gate valve has a small flange face-to-face profile that makes it easy to install and maintain. The valves are available in manual, push-rod, and double-acting pneumatic operation. The pneumatic valves are available with solenoid (pilot) valves at 115 VAC, 220 VAC, and 24 VDC, and a position indicator.
Features:
- Offered in ISO-63, 100, 160, 200 and 250 versions
- Pressure range: 7.5 x 10-8 Torr- 23 psi/1 x 10-7 Millibar- 1.6 Bar (abs)
- Available in hand-operated and air-operated versions
- Polymeric seal for lower cost in multiple applications
- Split body for easy cleaning and shorter maintenance cycles
- VATLOCK sealing configuration provides fast, positive sealing and low vibration operation
- Position indicators and air-control solenoid valves for 115 VAC, 240 VAC, and 24 VDC service are optional
