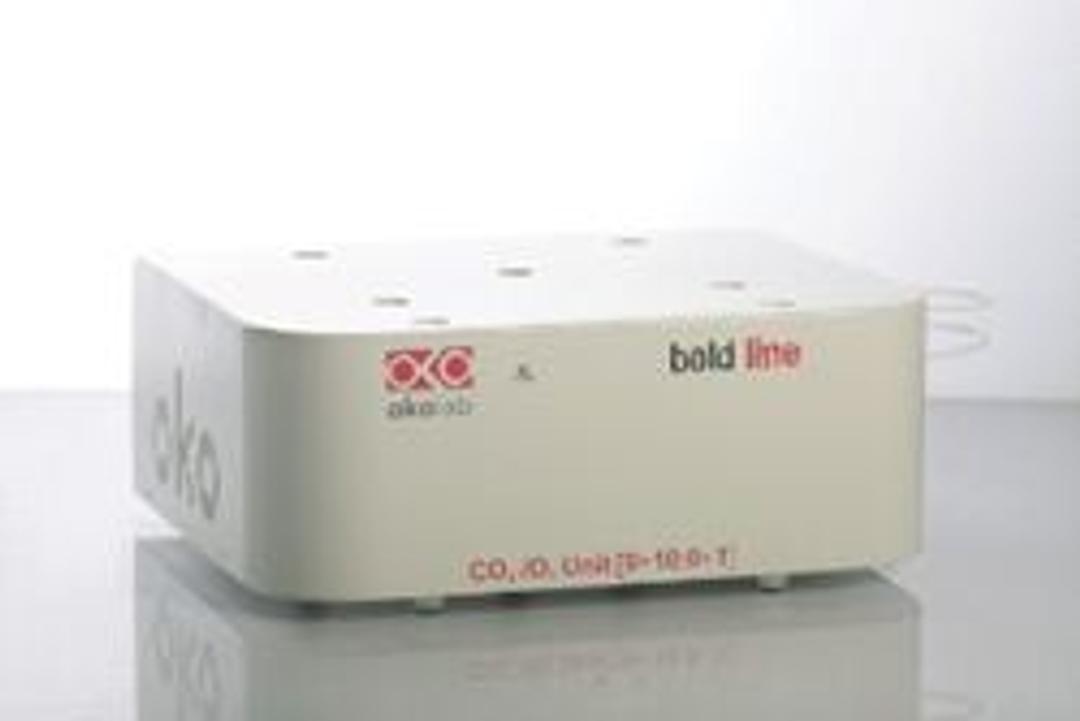

Bold Line CO2 - O2 Unit [0-10; 0-1] - Gas Controller

Bold Line CO₂ - O₂ Unit [0-10;0-1] Controller for very low oxygen concentrations. The Bold Line Controllers can be operated as standalone units or in combination with each other through cabeless connection.

Bold Line CO₂ - O₂ Unit [0-10;0-1] Controller Features:

• CO₂ range: 0-10% - O₂ range: 0-1%
• Adds CO₂ and Air to N₂
• CO₂ range: 0-10%
• O₂ range: 0-1%
• CO₂ accuracy: ± 5% of CO₂ concentration, i.e. ± 0.25% at 5% CO₂
• O₂ accuracy 0.02% at 1% O₂ after sensor calibration against a span gas with an Oxygen level within the range 0.5-1%. Optimal Calibration gas accuracy 2% of Oxygen concentration.
• CO₂ repeatability: better than 0.1%
• O₂ repeatability: 0.01% of O2
• Set Point Resolution: 0.1%
• Oxgen Reading Resolution 0.01%
• Total flow rate: 0.2-0.8 Nl/min
• Outlet pressure: ambient
• CO₂ consumption (at 5% of CO2 and 0.4 Nl/min): 0.02 Nl/min
• Air consumption (at 0.5% of O2 and 0.4 Nl/min): 0.0095 Nl/min
• N₂ consumption (at 0.5% of O2 and 0.4 Nl/min): 0.37 Nl/min
• CO₂ sensor: 10 year-life Non Dispersive InfraRed (NDIR) dual wave length detector
• O₂ sensor: 9-12 Months –life electrochemical sensor
• Sensor calibration with automatic routine via touch screen using a calibration gas
• Oko-Touch for intuitive touch screen operation
• Smart Box for data logging and remote operation
• Cabless connection to other units and to Smart Box
• Web operation through Smart Box
• SDK available for integration in third party software
• Filtering device: PTFE membrane with 0.2 μm pores
