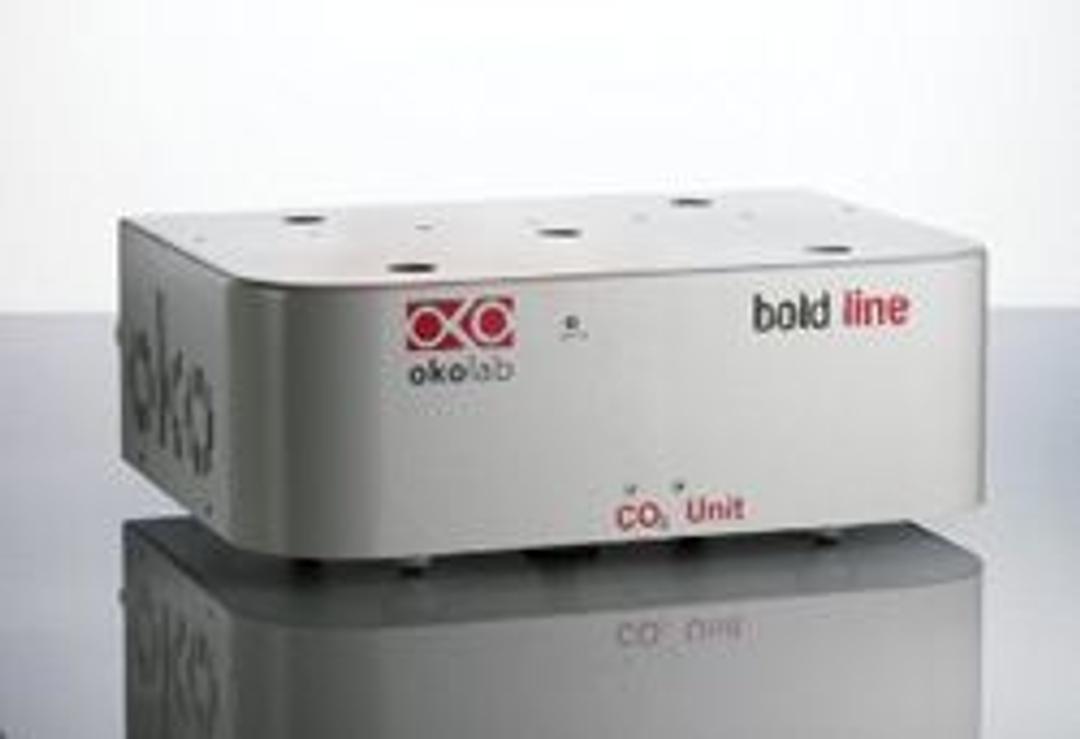

Bold Line CO2 Unit - Gas Controller
Bold Line CO2 Unit, controls both air and CO2. The Bold Line Controllers can be operated as standalone units or in combination with each other through cabeless connection. Bold Line CO2 Unit Controller Features: Adds CO2 in Air or in N2 Range: 0-18% Accuracy: ± 5% of CO2 concentration, i.e. ± 0.25% at 5% CO2 Set Point Resolution: 0.1% Repeatability: better than 0.1% Total flow rate: 0.2-0.8 Nl/min Outlet press…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Bold Line CO2 Unit, controls both air and CO2. The Bold Line Controllers can be operated as standalone units or in combination with each other through cabeless connection.
Bold Line CO2 Unit Controller Features:
- Adds CO2 in Air or in N2
- Range: 0-18%
- Accuracy: ± 5% of CO2 concentration, i.e. ± 0.25% at 5% CO2
- Set Point Resolution: 0.1%
- Repeatability: better than 0.1%
- Total flow rate: 0.2-0.8 Nl/min
- Outlet pressure: ambient
- CO2 consumption (at 5% and 0.4Nl/min): 0.02 Nl/min
- CO2 sensor: 10 year-life Non Dispersive InfraRed (NDIR) dual wave length detector
- Sensor calibration with external meter or calibration gas
- Oko-Touch for intuitive touch screen operation
- Cabless connection to other units and to Smart Box
- Filtering device: PTFE membrane with 0.2 μm pores
- Web operation through Smart Box for data logging, video streaming and remote operation
- PC operation through NIS Elements and Micro Manager, SDK available for integration in third party software
- Can be attached to O2 Unit-BL [1-20] to control both CO2 and O2 within the range 0-10% and 0-18%, respectively.
