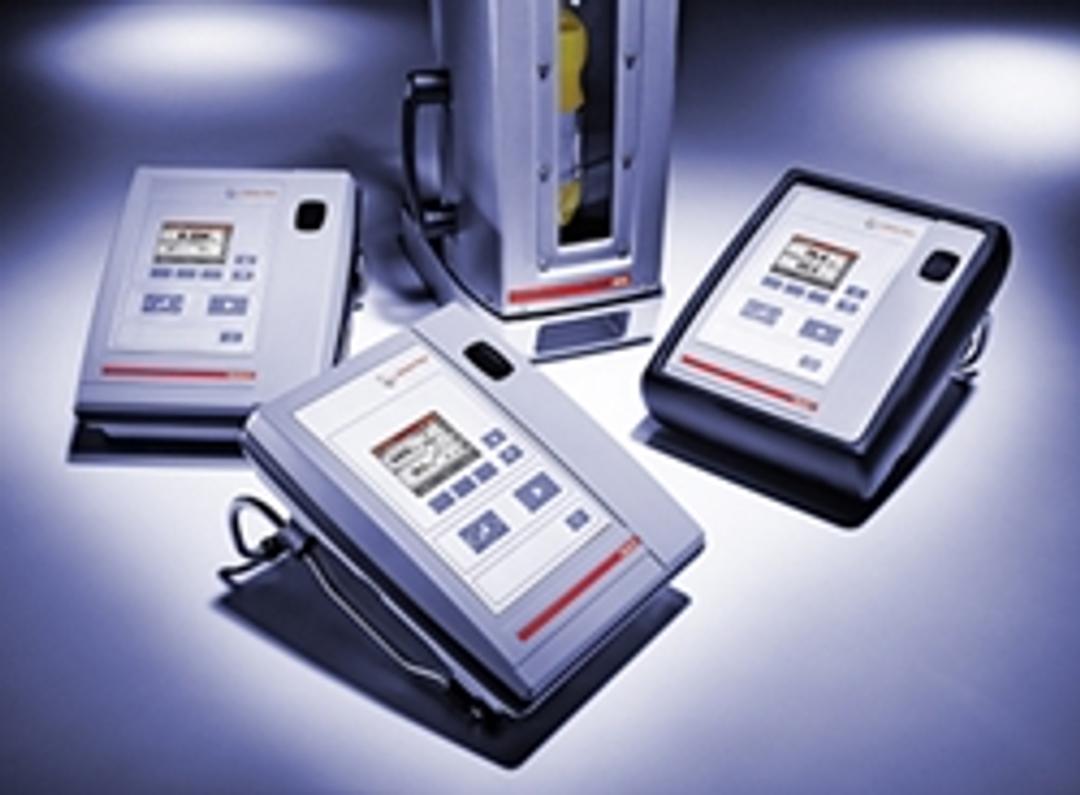

CO2 Meter: CarboQC Lab and At-line

CarboQC is the precise CO2 meter which allows reliable QC on finished packages as well as highly accurate measurements in the laboratory for product development.

It gives you fast, accurate and reliable determination of dissolved carbon dioxide in beverages. When combined with Anton Paar’s PFD filling device, sample is taken directly from the package into the measuring chamber of CarboQC - with no loss of dissolved carbon dioxide during sample transfer. CarboQC for the laboratory provides reliable CO2 results, even out of very small packages.

CarboQC Lab Features:

• CO2 measurement based on the patented Multiple Volume Expansion method guarantees repeatability standard deviations of 0.005 vol.
• No influence of other dissolved gases such as air or nitrogen
• Low sample volume of around 100 mL provides reliable CO2 results, even out of very small packages
• PFD filling device transfers sample from the package into the measuring chamber without any loss of CO2
• CO2 results after only 55 seconds
• FillingCheck™: automatically detects filling errors and generates a warning message
• Extend or build your own measuring system in the future by connecting a DMA Generation M density meter or Soft Drink Analyzer M (with software release 2.40) with further Anton Paar modules and measure up to seven parameters in one measuring cycle
• Bluetooth interface for wireless printing
• USB interface for data transfer to a PC
• RFID interface for changing measurement settings quickly by reading RFID tags

CarboQC At-line is the portable CO2 meter for measurement directly from process lines, tanks, kegs and casks during production and bottling. For the utmost flexibility, the instrument’s new and robust design is small, compact and lightweight and therefore fully protected for harsh environments.

It provides a battery life of up to ten hours. The integrated CO2 Data Logger function enables continuous measurements from the line or tank. CarboQC At-line is therefore ideal for checking the production process of beverages and verifying the CO2 results measured by process equipment.

CarboQC At-line Features:

• Fully protected from harsh environments thanks to the robust and IP67 leakproof design
• CO2 results after only 55 seconds
• Data Logger function: enables continuous CO2 measurements from the line or tank
• FillingCheck™: automatically detects filling errors and generates a warning message
• Integrated rechargeable battery provides up to 10 hours at-line operation
• Bluetooth interface for wireless printing
• USB interface for data transfer to a PC
• RFID interface for changing measurement settings quickly by reading RFID tags
