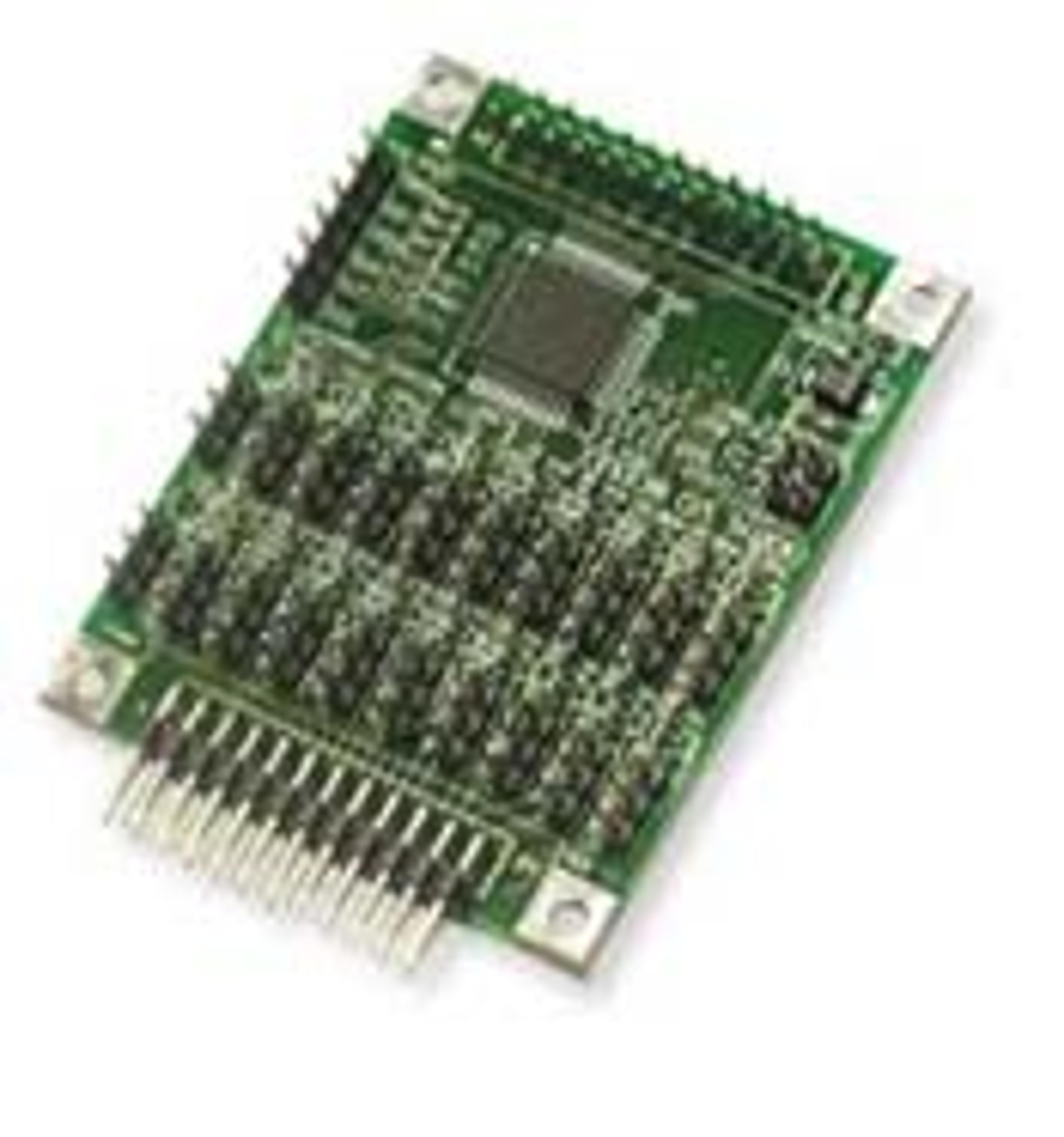

Digital I/O Wildcard
The Digital I/O Wildcard adds plenty of programmable digital I/O to any Mosaic Controller. In addition to 4 dedicated digital inputs, you can configure up to 16 more channels for either input or output. Each I/O line is also easily configured for pull-up, pull-down, or tri-state operation. This allows you to set the appropriate level of each I/O line in the interval between power-up and software initialization. Pre-coded soft…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The Digital I/O Wildcard adds plenty of programmable digital I/O to any Mosaic Controller. In addition to 4 dedicated digital inputs, you can configure up to 16 more channels for either input or output. Each I/O line is also easily configured for pull-up, pull-down, or tri-state operation. This allows you to set the appropriate level of each I/O line in the interval between power-up and software initialization.
Pre-coded software drivers allow you to configure the I/O lines as either inputs or outputs in groups of four, initialize, read from, and write to the lines.
Output sink capability is sufficient to directly drive LEDs and other low power devices
