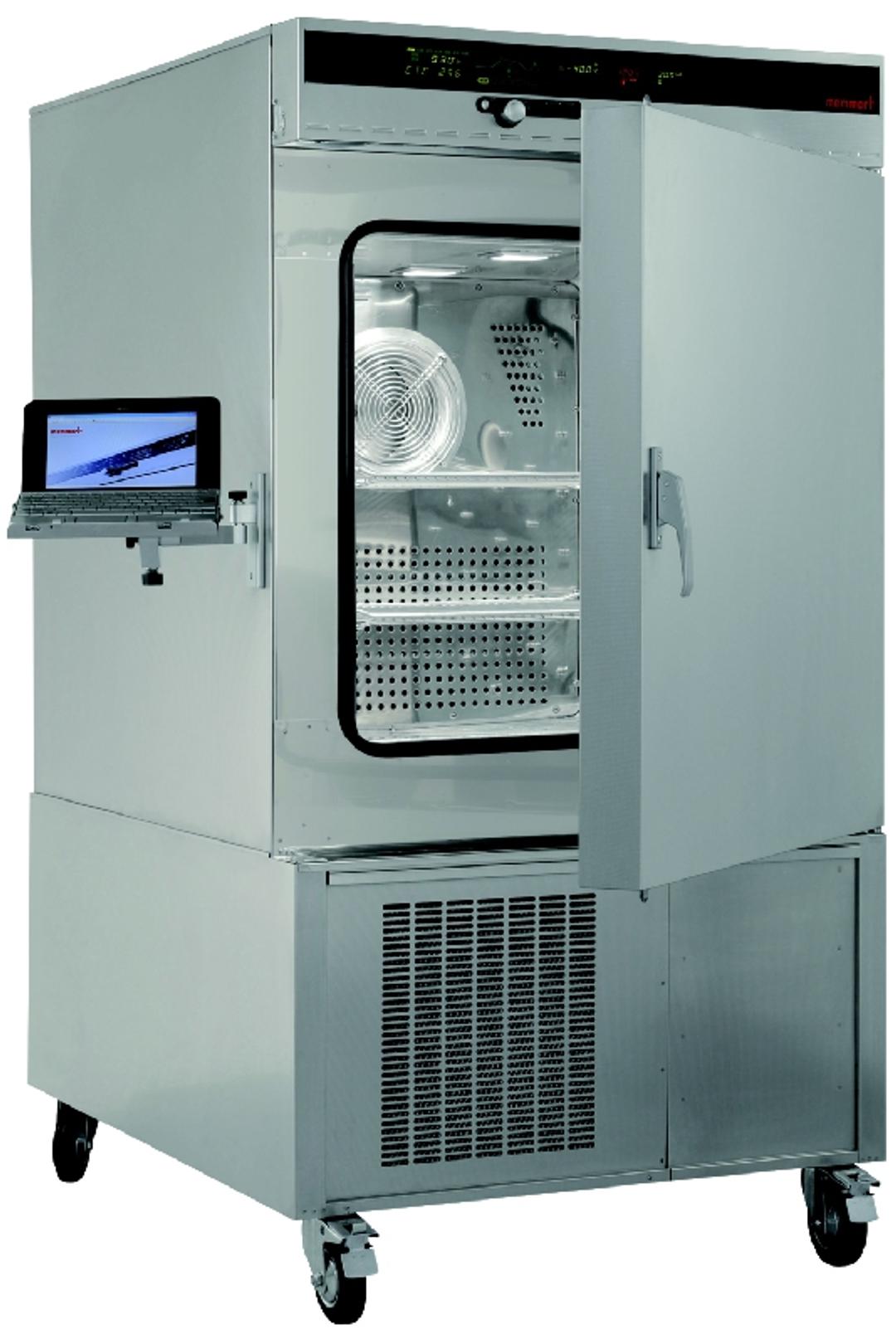

Environmental test chambers CTC/TTC

Engineered for rapid, precise and energy-saving temperature changes, along with fast humidity recovery times. Temperature test chamber TTC and climatic test chamber CTC with humidity unit are the perfect duo for controlled material testing, function tests, ageing tests or climate tests on composites, concrete, plastics or electronic components in material technology, the automotive and aerospace industries, and electronics. With a rated power of 7000 Watts, both test chambers are extremely powerful due to the optimally coordinated heating and cooling technology. At the same time they work energy-efficient as well as comparatively noise-reduced. With a chamber volume of 256 litres, they provide plenty of space, yet have a low floor space requirement because of their narrow and compact construction. In addition, the appliances can be conveniently moved on castors through any standard laboratory doors.

The basic facts:

• 1 model size (256 litres volume)
• Electronically controlled active humidification from dehumidification from 10 % to 98 % rh
• Specifically suited for tests in accordance with IEC 60068
• High-tech insulation system for permanent insulation capacity and energy efficiency
• Temperature change rate in heating operation according to IEC 60068-3-5: 10 K/min (-40°C to +180°C; measured at an ambient temperature of 22°C)
• Temperature change rate in cooling operation according to IEC 60068-3-5: 3 K/min (from +180°C to -40°C; measured at an ambient temperature of 22°C)
• Refrigerant R449A
