eQCM-I Mini Quartz Crystal Microbalance
With Impedance Measurement and Dissipation. Both frequency and quality of resonance are measured.
eQCM-I Mini Quartz Crystal Microbalance

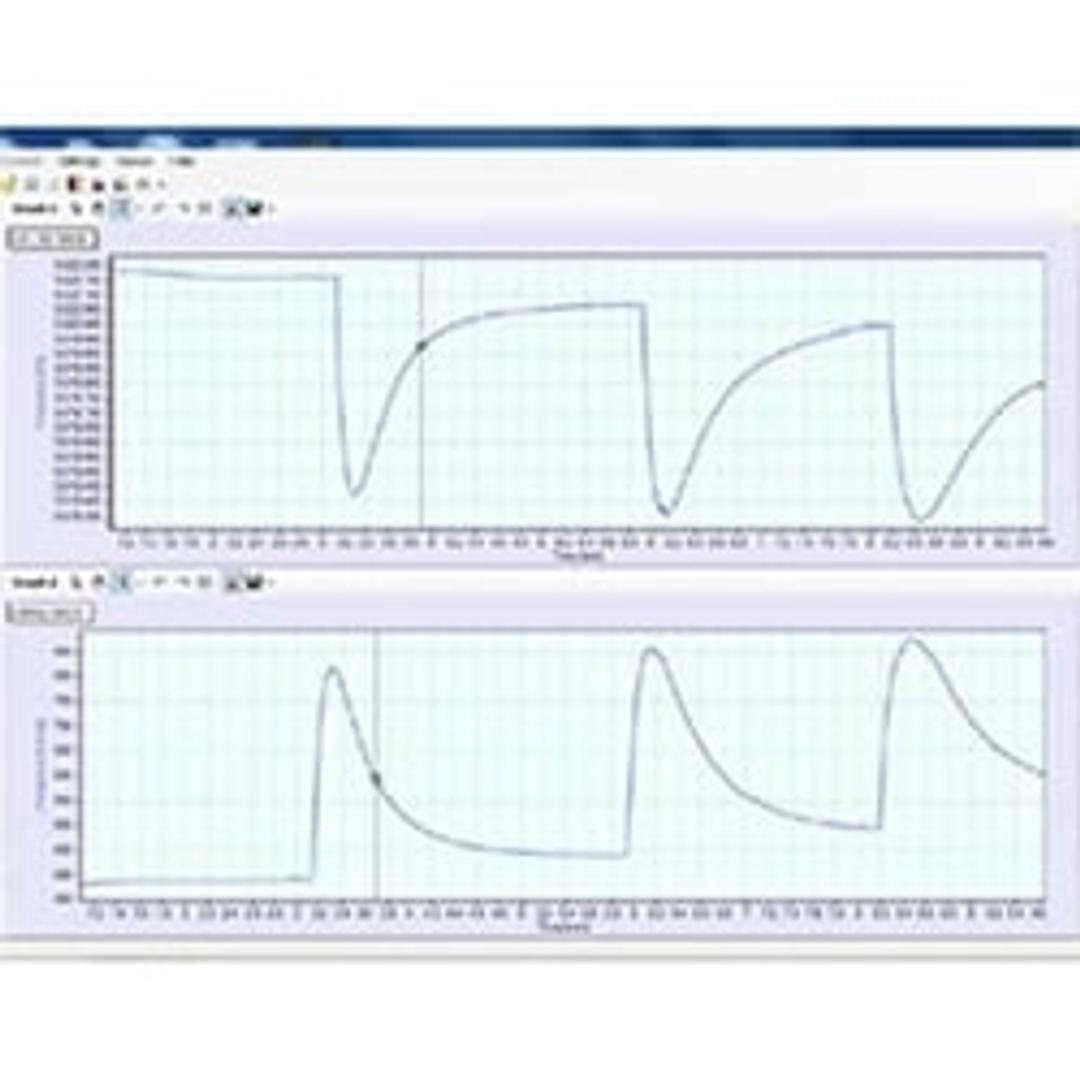

QCM-I Quartz Crystal Microbalance Software Control Measureme
Request Pricing
Receive your quote directly from the manufacturer.
The resonant frequency and the bandwidth of the resonant conductance curve are determined. The bandwidth or full width at half maximum, (FWHM) is direct correlation with the quality factor (Q) which is by definition the inverse of the well known dissipation (D).
eQCM-I Mini Features:
- Both the frequency and the quality of resonance (FWHM or bandwidth or dissipation) are measured
- Different harmonics (up to the 13th overtone at 5MHz crystals) can be quickly and sequentially measured
- Temperature control from 4°C to 80°C (± 0,02 °C) is included
- EC measurement module is optionally available with ITO-QCM sensors
- Modular sensor holder up to 4 measuring channels
- External PC with Windows® 10; communication with QCM-I via USB
