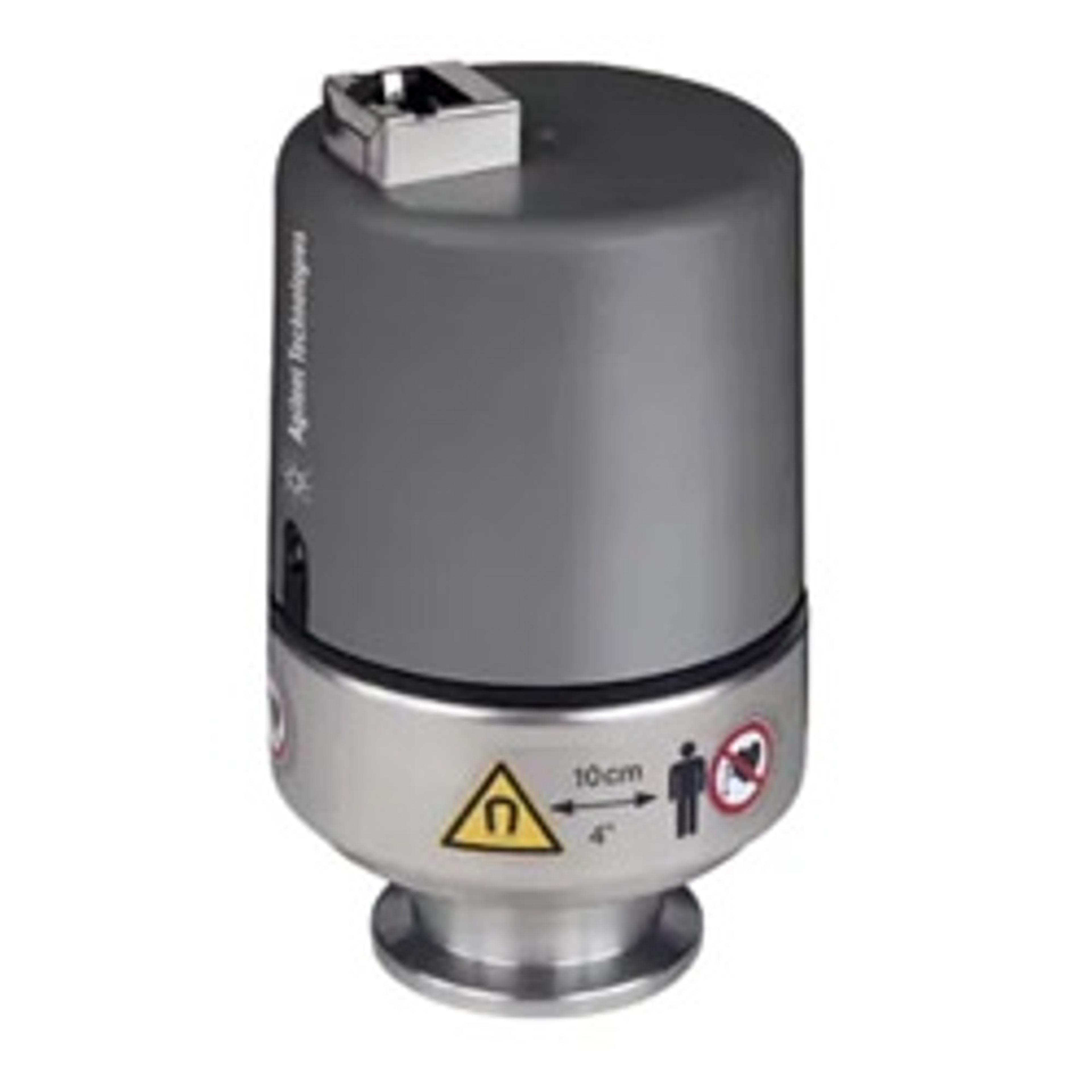

FRG-700/702 Pirani Inverted Magnetron Gauge

The Agilent FRG-700 Gauge is a full range gauge that provides two measuring technologies in a single, compact and economical package to measure process and base pressure from 5 x 10-9 mbar to atmosphere (3.8 x 10-9 Torr to atmosphere).

Agilent Technologies

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

The Agilent FRG-700 Gauge is a full range gauge that provides two measuring technologies in a single, compact and economical package to measure process and base pressure from 5 x 10-9 mbar to atmosphere (3.8 x 10-9 Torr to atmosphere). The single, compact unit with one logarithmic analog output signal, significantly reduces the complexity of installation, setup and integration. The benefits are reduced cost and a marked reduction in valuable space requirements. The FRG-702 is the all-metal version of the FRG-700, incorporating a metal-sealed feedthrough. It can be operated at higher temperatures (max. 150º C at flange) than the FRG-700 (max. 55º C at flange).

Features:

  • Provides 2 measuring technologies in a single, compact, economical package
  • Measures process and base pressure from 5 x 10-9 mbar to atmosphere (3.8 x 10-9 Torr to atmosphere)
  • A single, compact unit with one logarithmic analog output signal significantly reduces the complexity of installation, setup and integration
  • Ideal for high vacuum pressure monitoring, base pressure for evaporation and sputtering systems, and general vacuum measurement and control in the medium and high vacuum range
  • Wide measurement range from 5 x 10-9 mbar to atmosphere
  • No filament to burn out
  • Excellent ignition properties
  • Easy to clean
