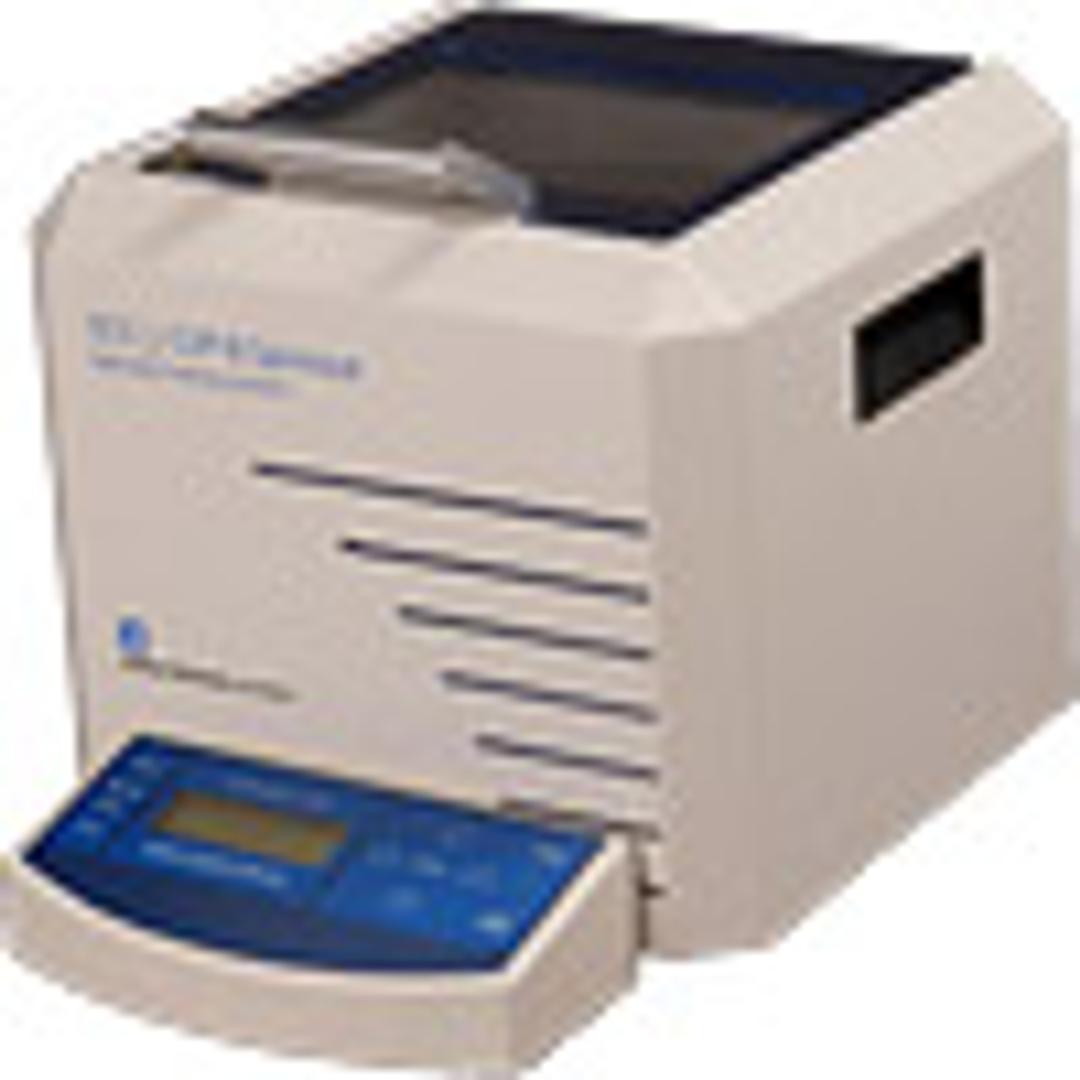

G3 Spincoat Series

The SCS G3 spincoat series sets new standards in operating precision and programming flexibility, with a high level of rotation accuracy and repeatability, along with precise acceleration and deceleration control.

• Available with eight, twelve and fifteen-inch bowls, in three compact enclosure sizes
• Fast, simple programming by means of microprocessor-based control, using front panel LCD display and keypad
• Close loop servomotor for precise speed regulation
• Programmable and Non-Programmable (eight-inch only)
• Communication port for external control using optional PC interface software for programming, profile storage, PID, diagnostics, vacuum on/off, slow speed centering, and programmable house position.
• Programmable models have the capacity to store and execute up to 30 programs, with up to 20 steps each (unlimited w/ optional software)
• Spin profiles adjustable in 1.0 rpm rotation increments, 0.1 second timing increments, and 1.0 second increments for dwell time, with precise repeatability from cycle to cycle
• Encoder allows vacuum chuck to be stopped at a Home position on programmable models
• Chemically resistant Teflon coated bowl with integral drain
• Hinged, interlocking cover on all models plus safety glass window on programmable models

All three SCS spincoat bowl sizes feature compact housing for convenience when using in fume hoods. Programmable Spincoat models have an optional integrated dispense arm, optional exhaust adapter, and are equipped to control solenoid operation of an optional dispensing unit.
