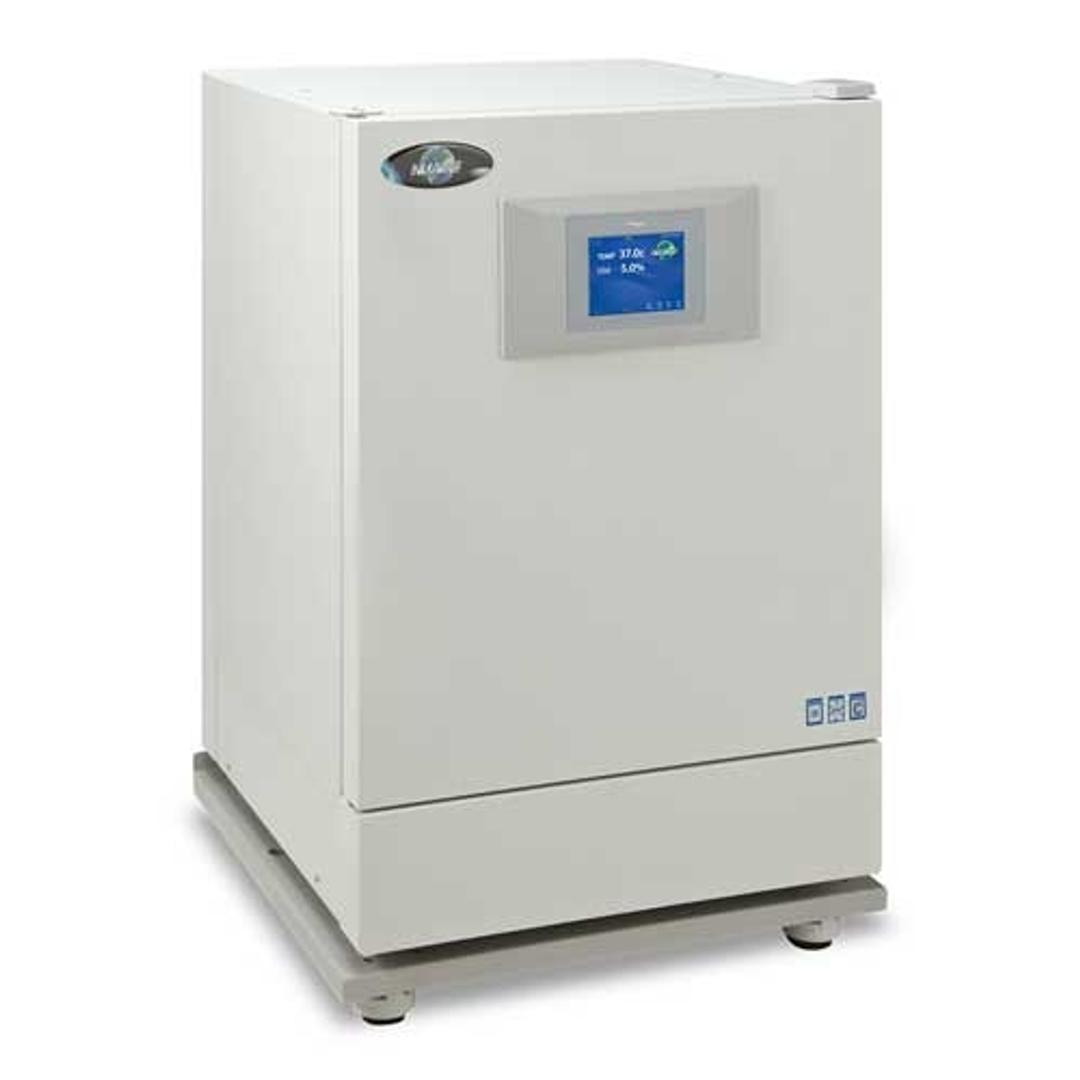

In-VitroCell ES NU-8600 Water Jacketed CO2 Incubator
The In-VitroCell™ ES (Energy Saver) Water Jacket CO2 Incubator model NU-8600 maintains a consistent temperature and CO2 levels, providing an optimal growth environment for tissue cell cultures in its clean design chamber. Technology NuTouch Electronic Control System (ECS) Control over the functions of the CO2 incubator is provided by the NuTouch ECS. This user-friendly control system lets operators program system…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The In-VitroCell™ ES (Energy Saver) Water Jacket CO2 Incubator model NU-8600 maintains a consistent temperature and CO2 levels, providing an optimal growth environment for tissue cell cultures in its clean design chamber.
Technology
NuTouch Electronic Control System (ECS)
Control over the functions of the CO2 incubator is provided by the NuTouch ECS. This user-friendly control system lets operators program system use, calibration procedures, alarm parameters and they can also adapt the incubator to different lab environments. The ECS has a color touchscreen to enter data and view operating control parameters and status indicators.
Precise CO2 Control
A dual wave infrared (IR) CO2 sensor measures and maintains accurate growth-chamber CO2 levels in the range of ±0.1 percent and is not affected by water vapor or other components. The single light source dual-wave design delivers stable, drift-free output that requires less frequent calibration.
Contamination Control
Closed-Loop HEPA Filtration
The closed-loop HEPA filtration system creates an environment similar to an ISO Class 5 clean room minimizing contamination. A continuously operating air pump maintains a positive pressure growth environment as gas and air pass through the 99.99 percent efficient filters at a recirculation rate of one chamber volume change every 30 minutes.
Clean Design
The crevice-free, cove-cornered interior of the water jacket incubator discourages biological growth to help prevent contamination. It is constructed of 16-gauge polished stainless steel; a surface that is easy to keep clean and contaminant-free.
Vibration-Free Construction
The NU-8600 CO2 incubator is designed with few moving parts, minimizing potential vibration that disturbs cell lines.
Performance
Precise Temperature Control
The NU-8600 maintains accurate temperature with the large 18 gallons (68.1-liter) water jacket that surrounds the inner chamber. Heated water in this jacket circulates around the growth chamber, keeping the temperature uniform within the growth chamber ±0.2°C. Precise temperature control is aided by the R5 insulation that lines the outer chamber walls that minimize heat loss.
The door and perimeter heaters are microprocessor-controlled to adjust to the room's ambient temperature. They can also be adjusted manually from ±20 percent to reduce condensation within the growth chamber.
Faster Recovery Times
The CO2 level can recover automatically at an average rate of 5 percent in five minutes, while the temperature recovers at 0.12°C per minute. Faster recovery times ensure your cell lines remain undisturbed promoting cell growth.
