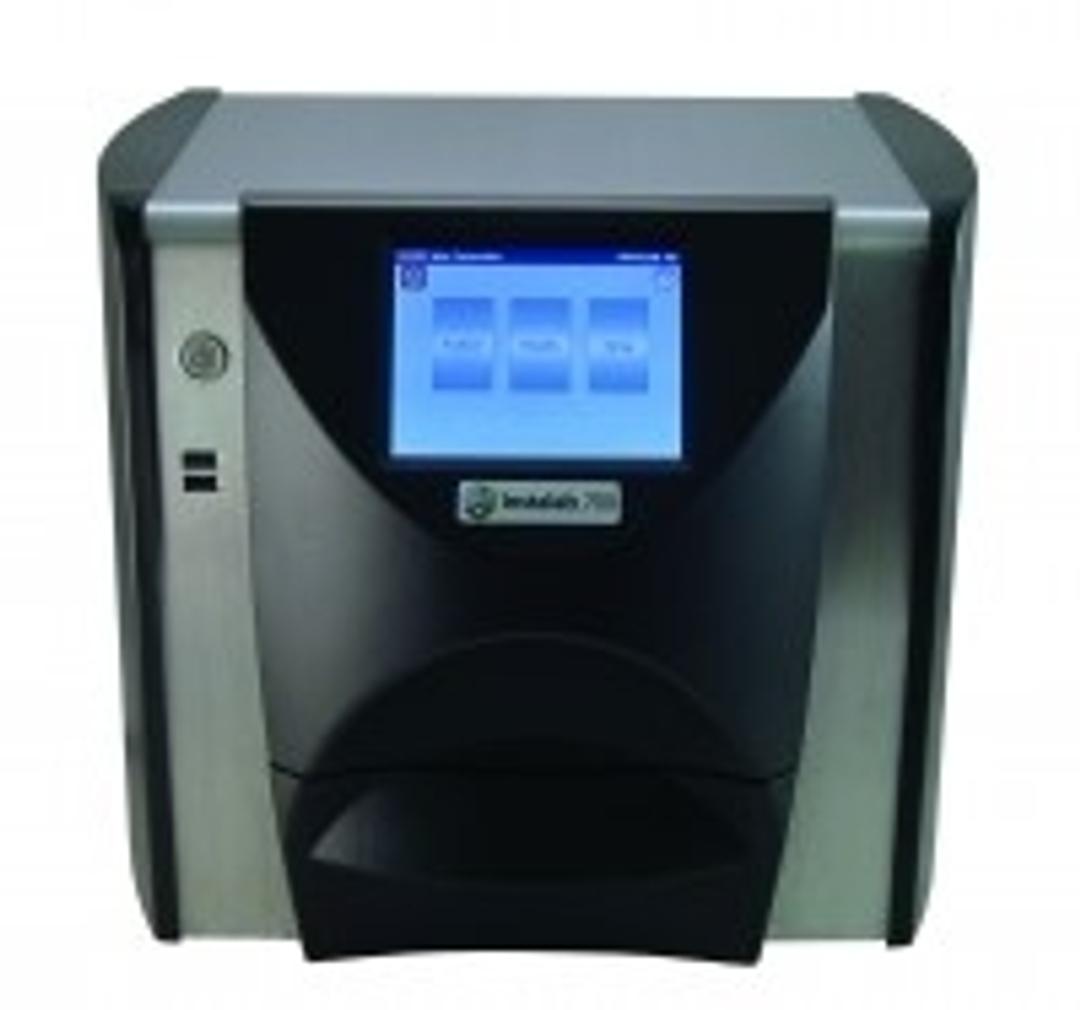

Instalab®700 NIR Analyzer
Reliable and accurate fixed filter testing that is simple to operate
Instalab®700 NIR Analyzer

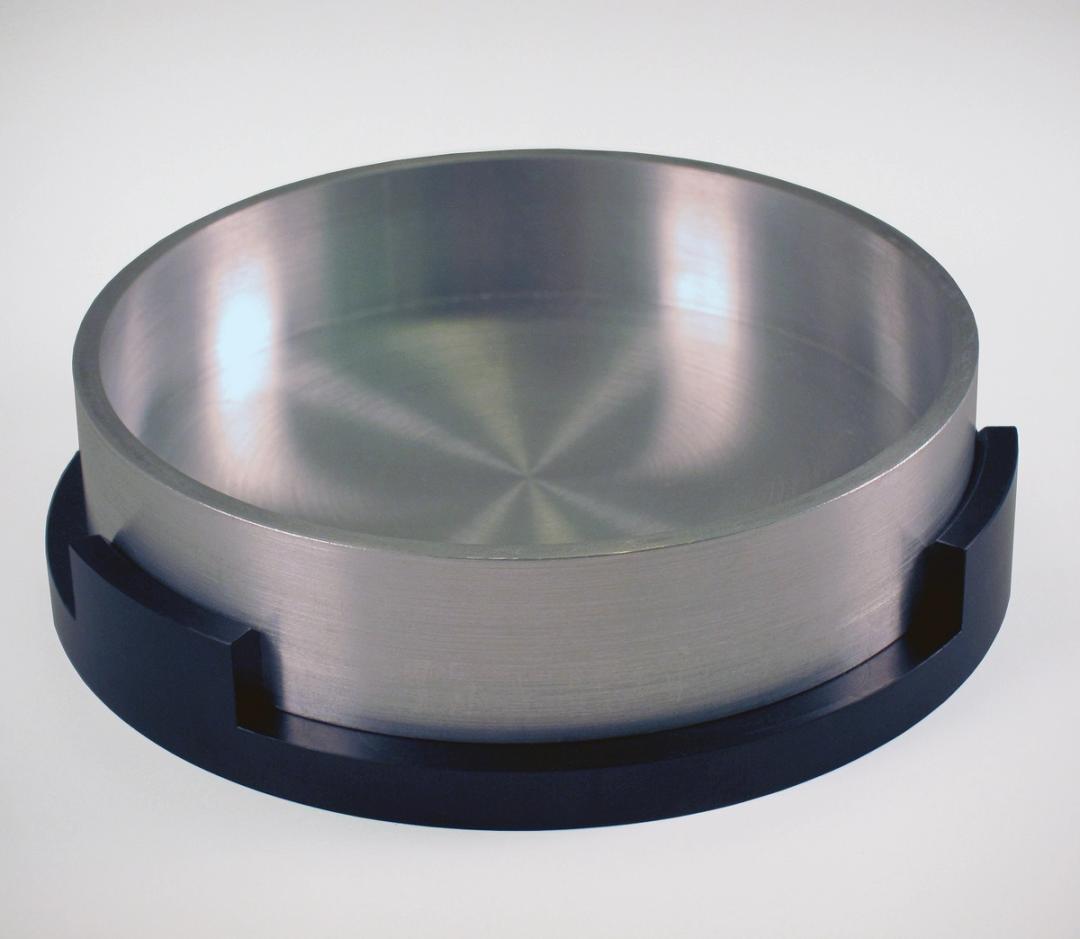

Instalab®700 Large Open Sample Cup

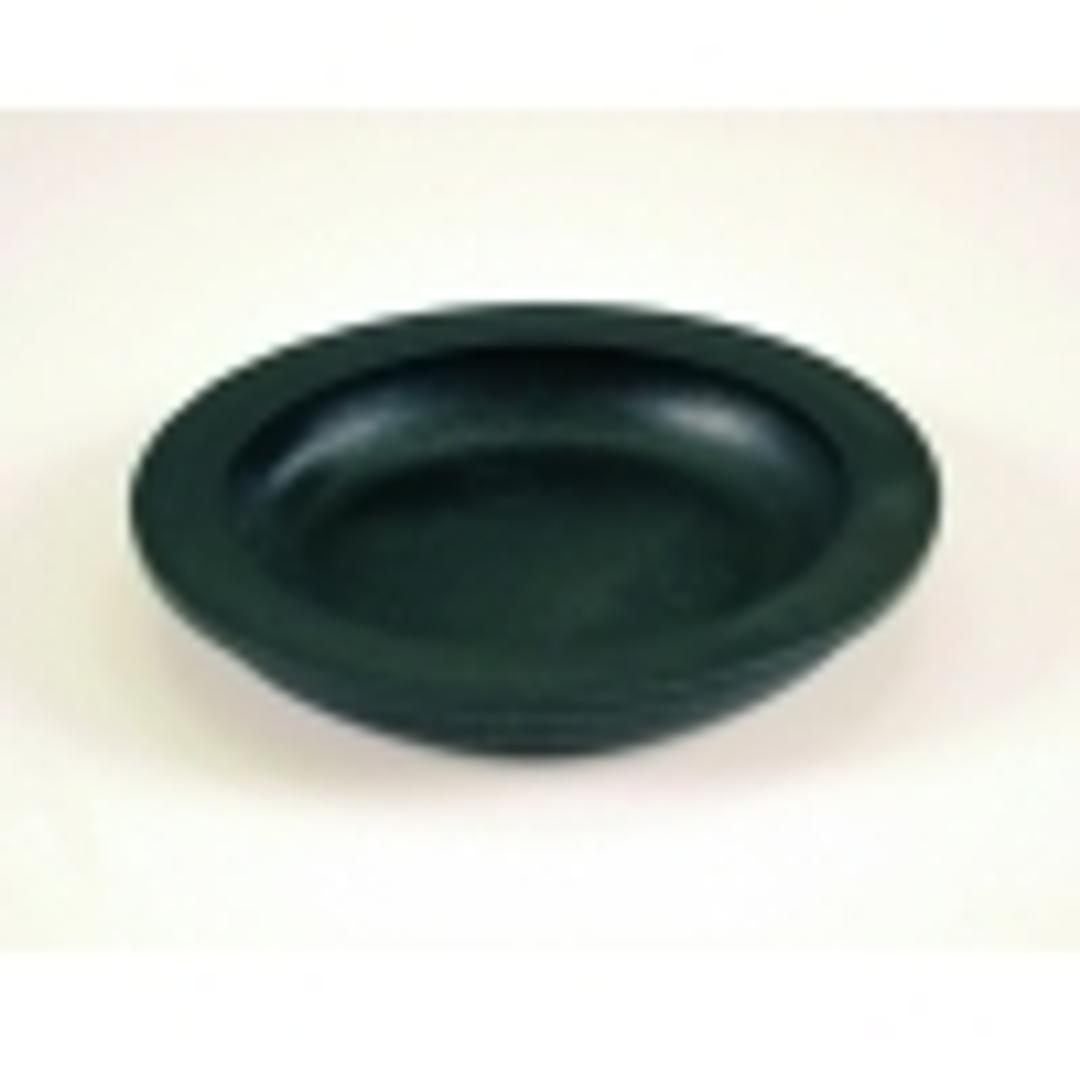

Instalab®700 Small Open Sample Cup
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Great performance
Analysis of oil, protein, moisture, sugars, total phenols and free amino acids in peanut kernels.
This equipment is very effective and gives high quality reproducible results.
Review Date: 9 Jan 2017 | DICKEY-john Corporation
Simply great performance.
Analysis of Oil, Protein and Moisture, Sugars, Free amino acids and Total Phenols in Peanut
We have been using Dicky John, Instalab, NIR system for several years. It's easy to use and they have performed very well.
Review Date: 8 Mar 2016 | DICKEY-john Corporation
The Instalab®700 analyzer offers reliability and accuracy in fixed filter testing that is simple to operate and affordable. Quality design and construction ensures the most reliable NIR results available. The Instalab®700 has a patented rotating sample cup which virtually eliminates problems associated with sample non-homogeneity. The cup rotation is computer controlled, with 120 readings taken at 3° intervals and averaged for each wavelength. The optional liquid sample cup has a non-rotation feature for measurement of liquids and oils. Completely customizable, it allows filters to be changed to adjust the bandwidth for product constituents, including protein, cellulose, sugar, ash, starch, oil and fat, alcohol, cotton, and polyester. The Instalab®700 is an analytical upgrade from the Instalab®600 series, which allows for porting of the Instalab®600’s extensive constituent library to the Instalab®700. The Instalab®700 is dependable in design and built for trouble-free operation in any environment – from lab to production line. Features:
- Intuitive color touch screen, eliminating operator training
- Memory storage for numerous calibrations
- Stable circuitry eliminates electrical drift and ensures nonvolatile storage of calibration constants, eliminating the need for an auxiliary power source.
- Thermoelectrically cooled photo detector eliminates temperature drift
- Sample cup interchangeability
- Liquid sample cup for oils and liquids
- Communication capabilities - Supports both USB and RS232 standard printers, this includes multiple baud rates with custom header and footer.
- Simple slope and Bias adjustment for every calibration
- Uses existing Instalab 600 calibrations
