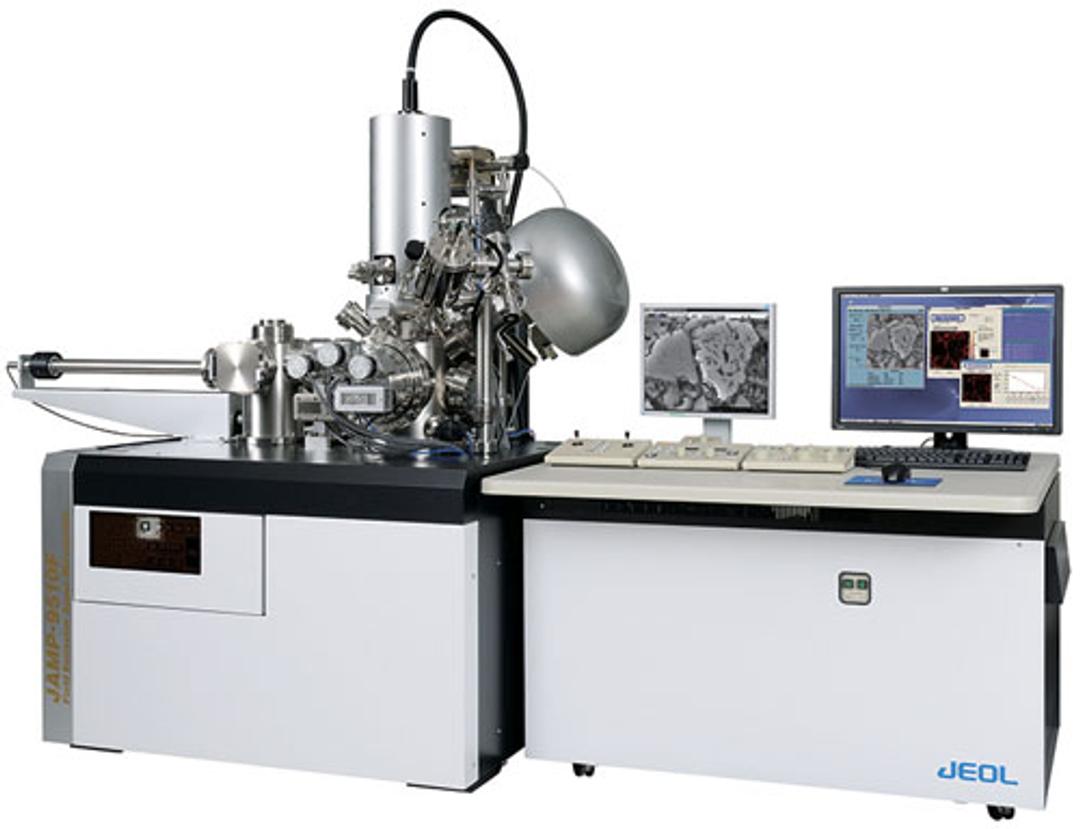

JAMP-9510F

Field Emission Auger Microprobe

Request Pricing
JEOL USA

Receive your quote directly from the manufacturer.

Ease of Use
After Sales Service
Value for Money
Be the first to leave a review

The JAMP-9510F offers the highest spatial resolution available in an Auger microprobe: (min. probe diameter of 3nm SEI; 8nm for Auger analysis). Employing a low-aberration condenser lens (in which an electrostatic field and a magnetic field are superposed), combined with a patented "in-lens' Schottky field emission gun, the JAMP-9510F obtains very small spot sizes with beam currents up to 200nA.

  • 3nm SEI resolution
  • 8nm probe diameter for Auger analysis
  • Variable energy resolution from 0.05% to 0.6%
  • Chemical state analysis in several 10nm areas
  • Neutralizing gun allows Auger analysis of insulating materials
  • Large specimen stage - samples up to 95mm in diameter
