KNX2 Pump

Affinité InstrumentsAvailable: Worldwide

Obtain kinetics information with qSPR or P4SPR by using this single or dual-channel injection loop module pump for simple kinetics measurement setup and operation.

Affinité Instruments

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

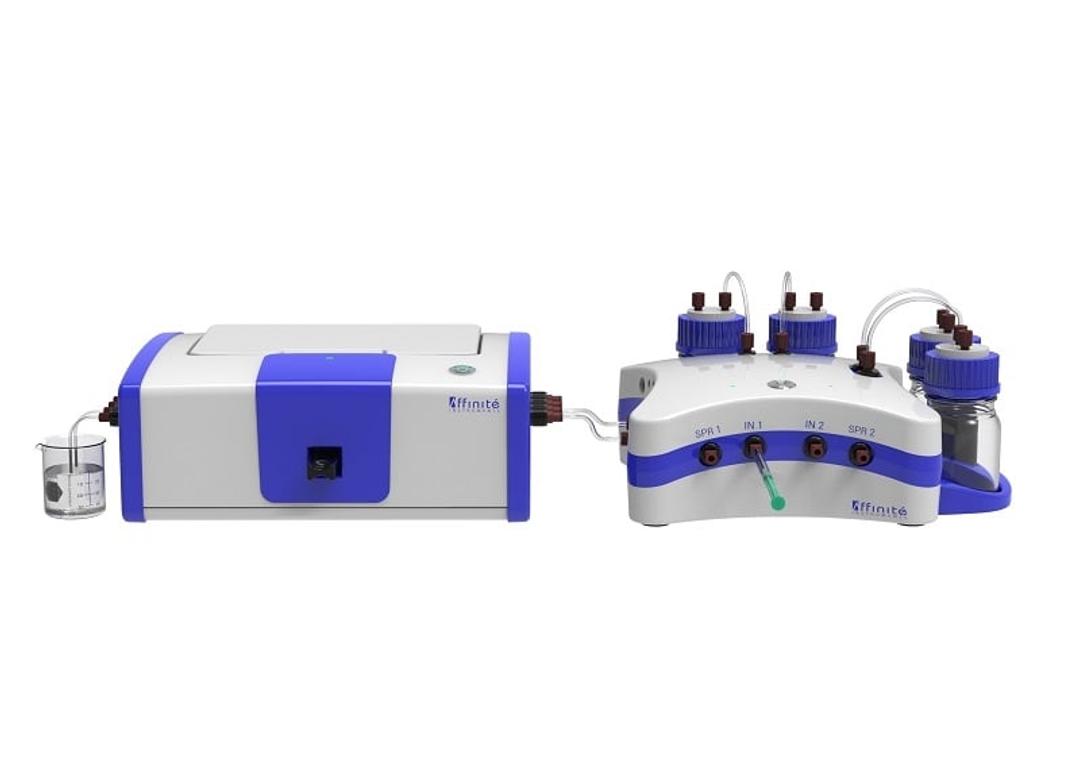

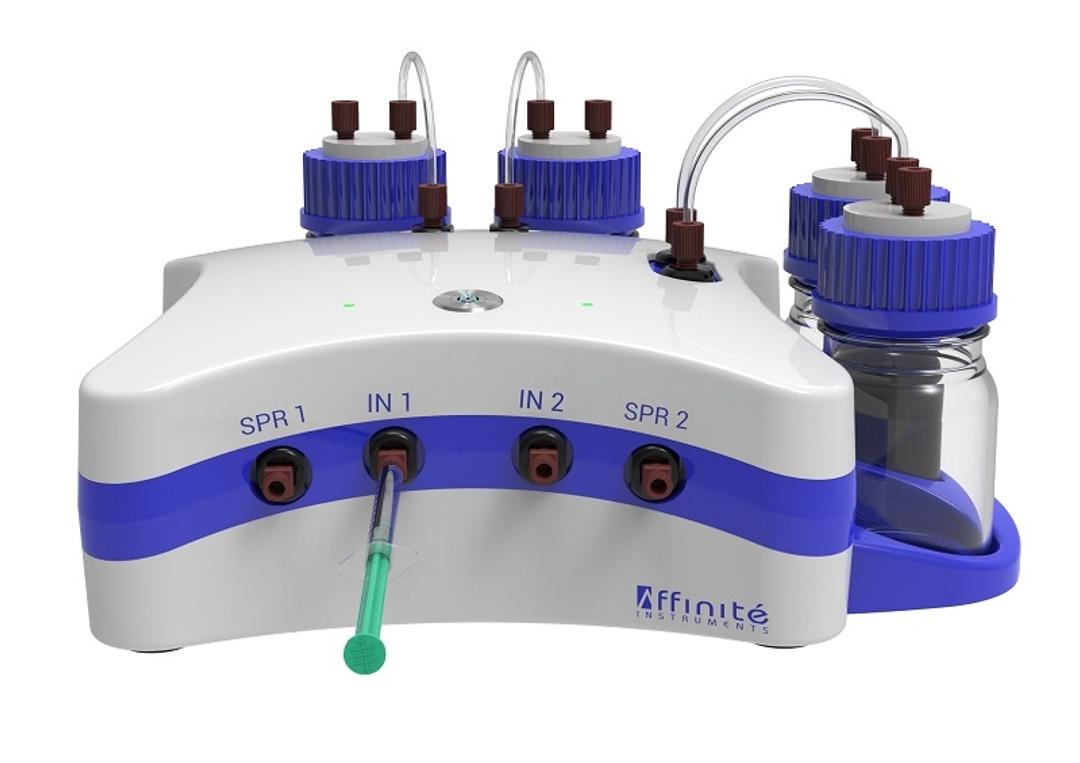

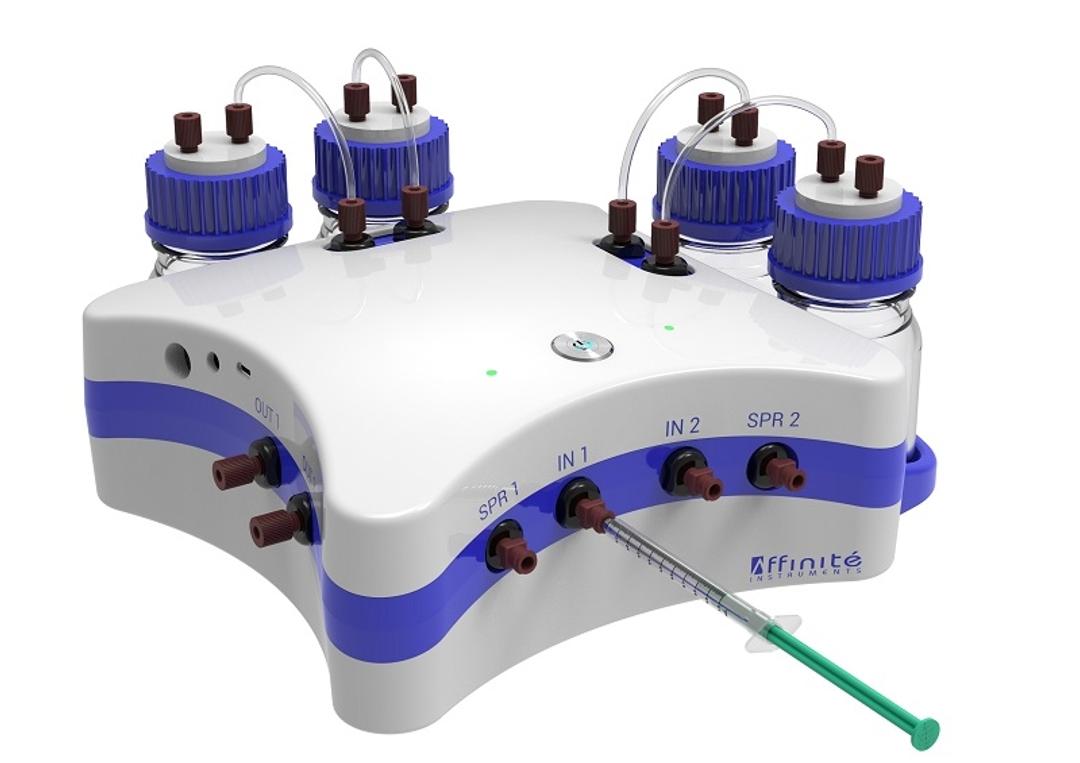

Affinité Instruments' KNX2 is an innovative pump that allows easy integration with Affinité’s portable SPR instruments to get real-time insights into biological pathways and mechanisms. Practical sample preparation steps allow for very quick sensor chip preparation and rapid flushing on SPR sensor using the manual bypass port before switching to sample loop injection for characterizing biokinetics interactions. Minimal time is required for pump setup, and it provides faster measurement cycles. Perform washing steps with quick manual injection at any point during a run cycle. A fast and convenient way to start the next experiment cycle. True reference data. Dual-channel operation with two independent pumps means achieving true dynamic reference channel subtraction in kinetics measurement or measuring two sample types at once.

Key features

  • 2 independent loop injection channels
  • Single or dual channel configuration
  • Semi-automatic sample loading
  • Manual injection by-pass mode for quick testing
  • 5 – 150 µL/min flow rate
  • 5 – 100 µL injection volume
  • Dimensions: 381 x 318 x 127 mm
  • Weight: < 2 kg with two channels
  • 15 – 25 °C operating temperature
  • PyQt base Affinité Control Graphic User Interface
  • CSV output compatible with TraceDrawer™

Applications

Obtain kinetics information from biomolecular interactions such as:

  • Anti-cancer drug and antibodies
  • SARS-CoV-2 proteins and antibodies/drugs
  • drug-protein interactions (cancer, viruses)
  • DNA and protein interactions
  • small ligands and peptides
  • protein-protein (or antibody) interactions
  • samples may be in buffer, blood, cell lysate, serum, plasma and other highly complex matrices
