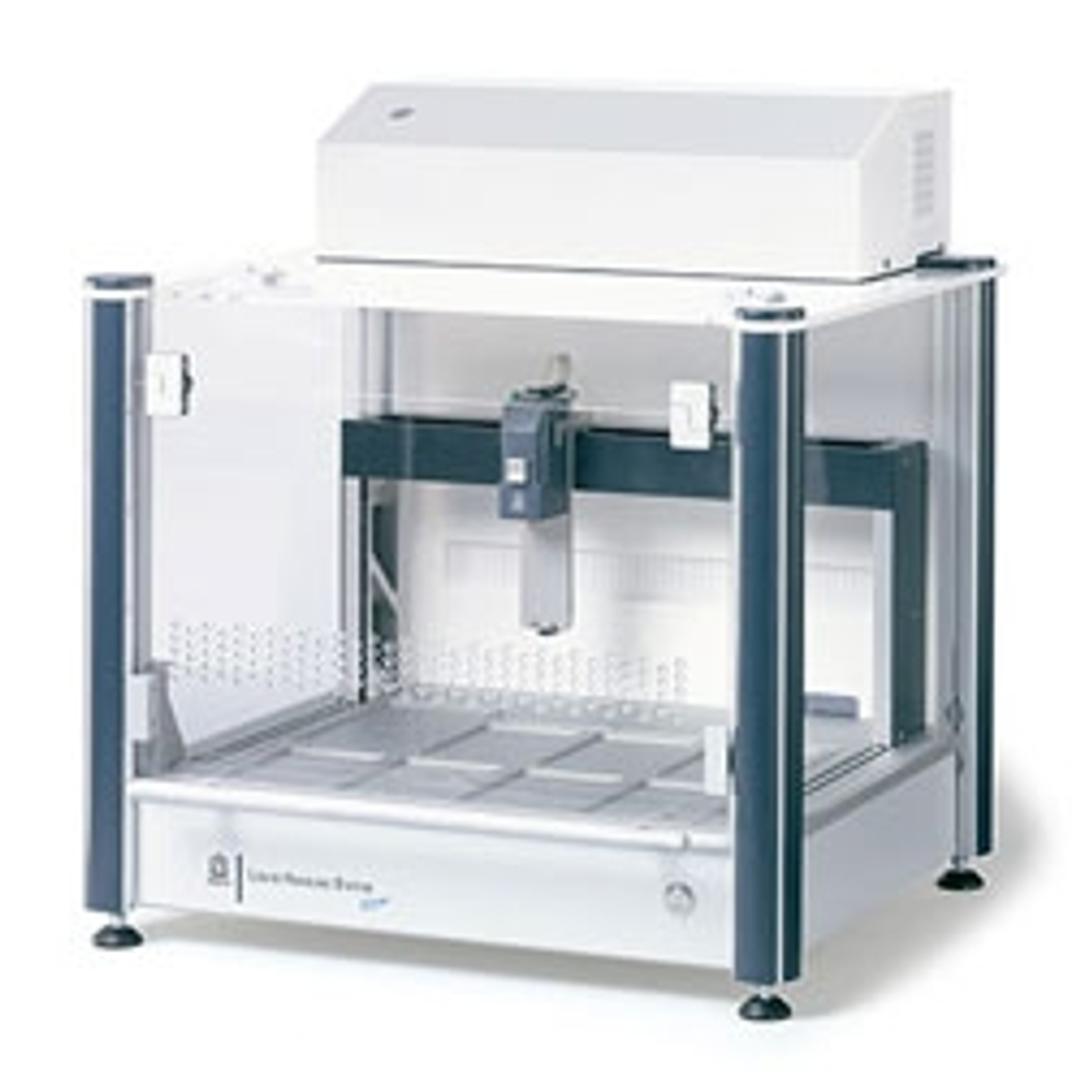

Liquid Handling Station flow

The BRAND Liquid Handling Station (LHS) pipetting robot handles routine tasks at high speed and with the highest precision. The LHS closes the gap between electronic pipettes and highly complex, expensive pipetting robots. It is a quiet and compact instrument with a unique front door allowing it be set up in tight quarters. The instrument has 7 working positions and 5 available liquid ends with single channel volumes up to 1000µL and multichannel volumes up to 300µL. The system has the flexibility to move liquids between reservoirs, tubes, and plates. Adapters and racks bring the consumables to an even height, reducing unnecessary vertical movements to save time during pipetting.

The Liquid Handling Station flow is BRAND’s pipetting robot for applications where samples must be protected from particles and microorganisms. The new FlowBox directs the filtered air flow in laminar horizontal layers across the consumables. With the door closed, the air volume inside the cabinet is replaced 260 times per hour and exits through the front door.

Applications:

• Preparation of ‘assay ready’ plates
• PCR, qPCR, and ELISA Set-up
• Serial dilutions
• Microplate Replication and Reformatting
• DNA Normalization
• Cherry Picking
• Cell Cultures
• General Liquid Transfers
