LUNA™ 1-Chamber, 3-Chamber and 8-Chamber Disposable Slides
Made for the LUNA-BX7™ and LUNA-FX7™ automated cell counters, the disposable LUNA™ 1-, 3-, and 8-chamber slides provide higher throughput options effectively increasing measuring volume and lowering CV.
The disposable LUNA™ 1-Channel Slide

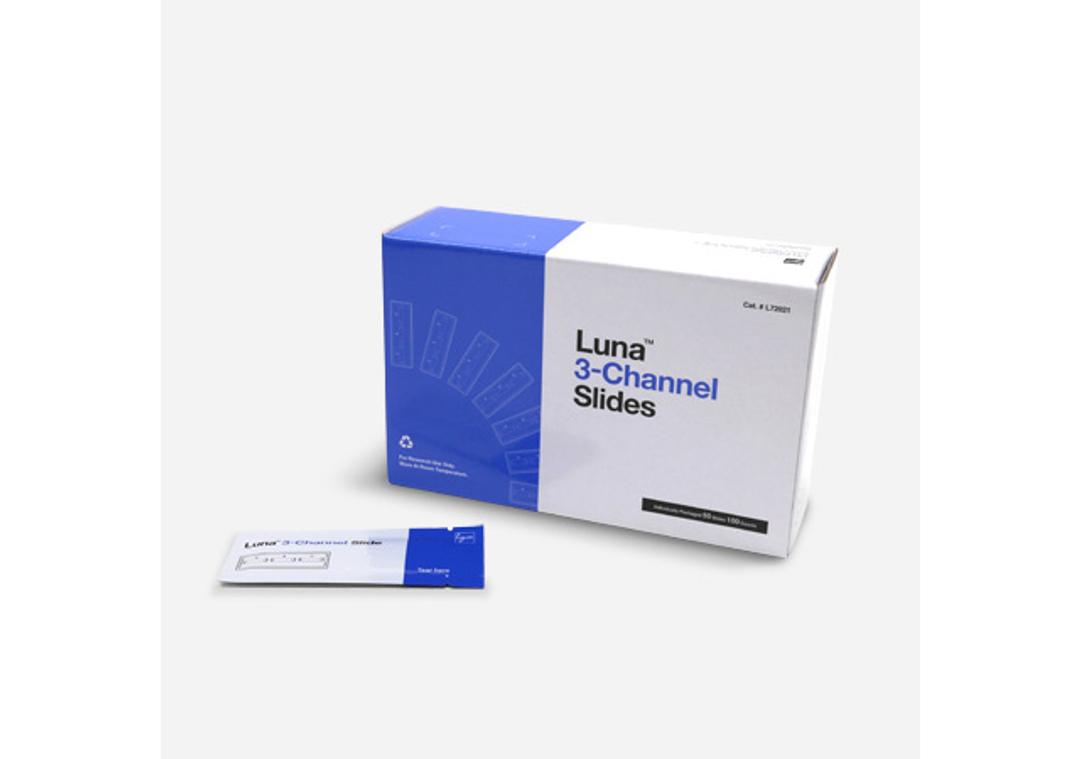

The disposable LUNA™ 3-Channel Slide

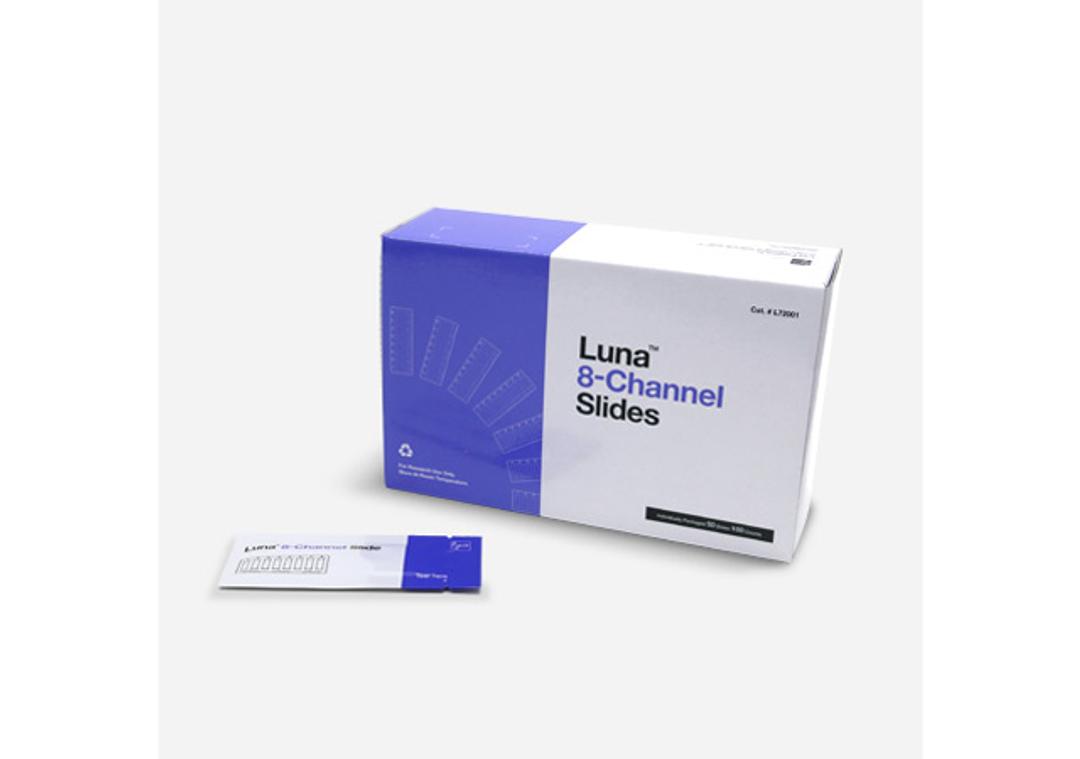

The disposable LUNA™ 8-Channel Slide
Receive your quote directly from the manufacturer.
The disposable LUNA™ 1-, 3-, and 8-chamber slides maintain the highest standards of quality and accuracy for reliable cell counts providing higher throughput options effectively increasing measuring volume and lowering CV.
Convenience counts. Each slide only needs to be inserted into the cell counter once. The intuitive touchscreen interface and advanced software of the LUNA-BX7™ and LUNA-FX7™ processes multiple chambers at one time or users can designate exact chambers to count allowing unused chambers to be used in the future so no chamber is wasted.
The LUNA™ 1-chamber slide. Offers the largest measuring volume in a single chamber of up to 5.1 µL for the ultimate in accuracy and precision.
Specifications: Chamber depth of 0.1 mm, measuring (W x D x H) 75 mm x 25 mm x 2.1 mm with a loading volume of 50 μL.
The LUNA™ 3-chamber slide. These disposable slides provide the option of running experiments in triplicate. In one count, the LUNA-BX7™ and LUNA-FX7™ is able to count all three chambers at once ensuring repeatability and reproducibility. Any chamber not used can be used for future experiments.
Specifications: Chamber depth of 0.1 mm, measuring (W x D x H) 75 mm x 25 mm x 2.1 mm with a loading volume of 10 μL, one disposable slide contains three separate chambers.
The LUNA™ 8-chamber slide. These slides provide much higher throughput of samples. Users can count 8 different samples at once increasing productivity and lab efficiency.
Similar to the LUNA™ 3-chamber slides, the LUNA-BX7™ and LUNA-FX7™ is able to count each of the 8 chambers at once ensuring repeatability and reproducibility. In addition, any unused chamber can be used in the future to run additional experiments.
Specifications: Chamber depth of 0.1 mm, measuring (W x D x H) 75 mm x 25 mm x 2.1 mm with a loading volume of 10 μL, one disposable slide contains eight separate chambers.
Please note: The LUNA™ 1-, 3-, and 8-chamber disposable slides are only compatible with the LUNA-BX7™ and LUNA-FX7™ automated cell counters.
The LUNA-BX7™ and LUNA-FX7™ are also compatible with the LUNA™ 2-Chamber Cell Counting slides and the LUNA™ Reusable Slide.
