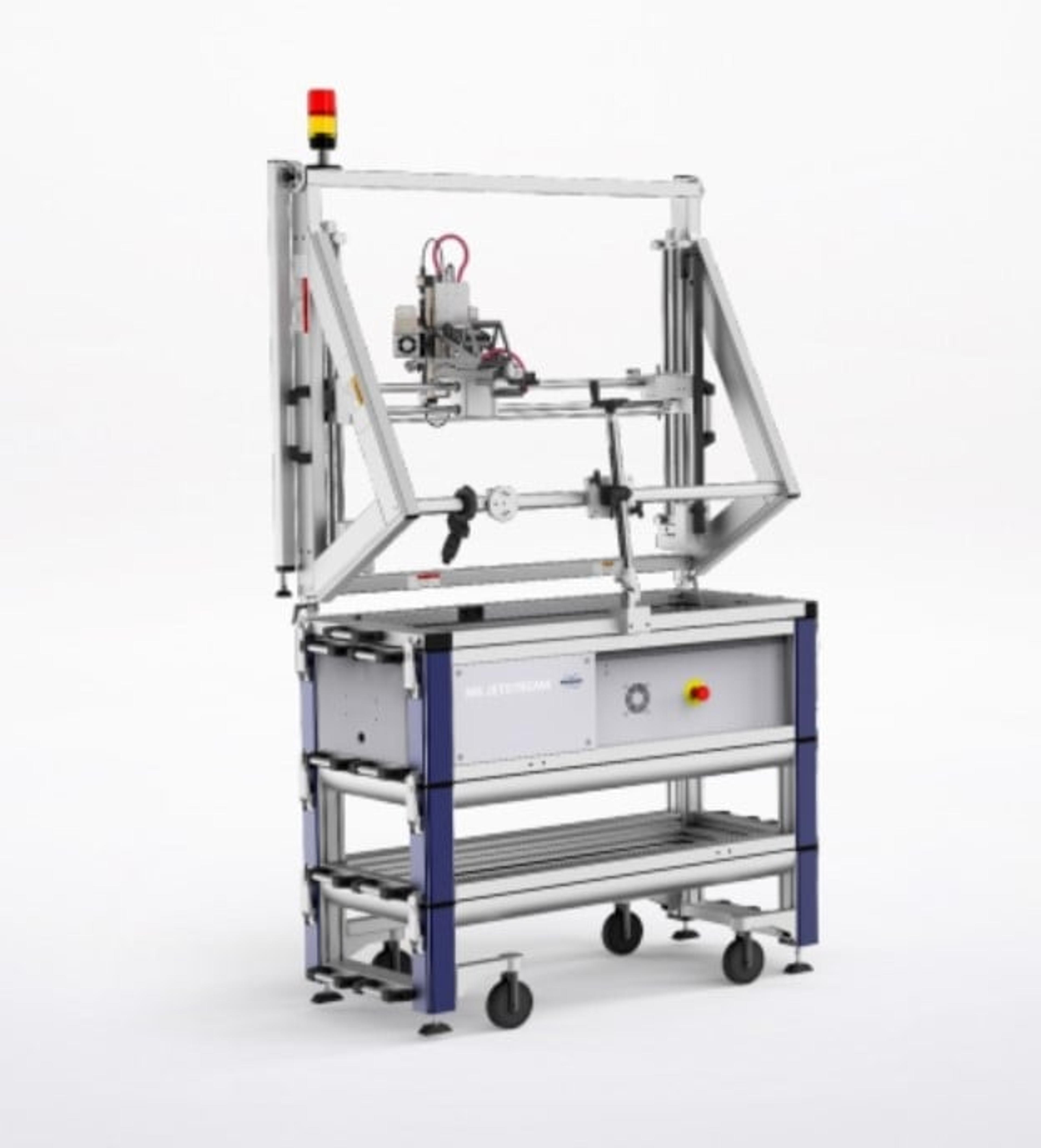

M6 Jetstream
Micro-XRF has become a decisive method for the analysis of paintings, geological samples, archeological artifacts and industrial components. The M6 JETSTREAM has a wheelbase and adjustable frame that allow on-site use instead of transporting the sample to the lab.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Great results, fast, and efficient
2D Elemental Analysis of Large Areas
We recently installed the Bruker M6 Jetstream macro x-ray fluorescence spectrometer, and it has proven an incredible tool for our laboratory. The instrument is built off the Artax open architecture concept, but it incorporates a large area scanning easel that moves the spectrometer over the surface of the object being analyzed. The M6 software is intuitive (identical to their EDS software Esprit), and superb data can be captures over large areas (ft x ft) for the full XRF spectrum (~P to U, no He purge, so no Al and little Si detectable). Although the instrument costs several hundred thousand dollars, it is proving a game changer in our lab. I should also comment that install and initial training was efficient and well done.
Review Date: 18 Jun 2021 | Bruker AXS Inc.
Micro-XRF has become a decisive method for the analysis of paintings, geological samples, archeological artifacts and industrial components. The M6 JETSTREAM drives these analyses to the highest speed and accuracy. With its mobile wheelbase and adjustable frame, the M6 JETSTREAM can be used on-site instead of transporting the sample to the lab.
- Measurement of upright samples or horizontal surfaces
- Scannable area up to 800 x 600 mm²
- "On the fly" analysis for highest mapping speed
- Adjustable spot size to match the structure of the sample
- XFlash® SDD technology with up to 2 x 60 mm² detector area
- Optional aperture management system (AMS) to gain depth of focus on uneven surfaces
