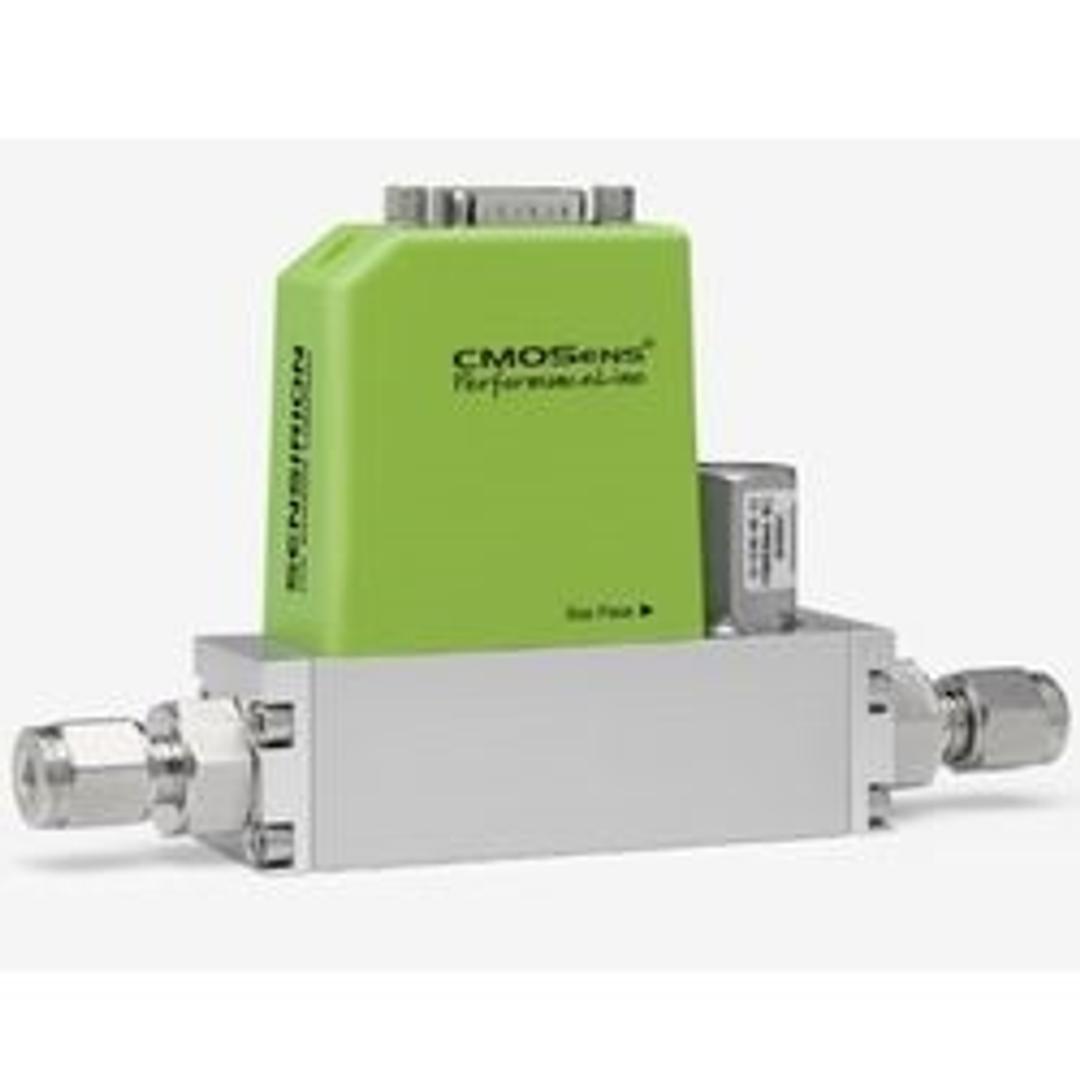

Mass Flow Meter SFM5400
The SFM5400 mass flow meter measures mass flows with outstanding accuracy (errors < 1%), long-term stability and repeatability and covers an impressively wide dynamic measurement range. The SFM5400 is made of metal and highly configurable. It is available with a variety of fluidic connections and various interfaces and measures maximum flow rates between 50 sccm and 100 slm. The sensor signal is directly converted into a digit…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Ready-to-use gas mixers for cell culture applications.
Prepare gas mixtures for cell cultures
Our gas mixers provide reliable and long-term stable gas mixtures for cell cultures and incubators, using the Sensirion SFC5400 Mass Flow controllers for nitrogen, air, carbon dioxide and oxygen. They can be used for any cell culture application for the preparation of hypoxic or hyperoxic gas atmospheres with or without carbon dioxide. They also can be used with hydrogen for anaerobic gas atmospheres.
Review Date: 21 Mar 2020 | Sensirion
The SFM5400 mass flow meter measures mass flows with outstanding accuracy (errors < 1%), long-term stability and repeatability and covers an impressively wide dynamic measurement range. The SFM5400 is made of metal and highly configurable. It is available with a variety of fluidic connections and various interfaces and measures maximum flow rates between 50 sccm and 100 slm. The sensor signal is directly converted into a digital, completely calibrated and temperature-compensated signal on the chip. Multiple gas calibrations can be stored on a single device. Additionally, the flow meter can check whether the activated gas calibration matches the actual gas present. The SFM5400's versatility makes it the ideal solution for industrial and medical applications.
The outstanding performance of the SFM5400 mass flow meter is based on the innovative CMOSens® Technology, which integrates the high-precision sensor element and the analog and digital processing electronics on a single CMOS silicon chip. Combined with high-quality materials, the result is a durably stable, extremely fast and highly precise mass flow meter.
The SFM5400 mass flow meter is the valve-free version of the SFC5400 mass flow controller. The SFC5400 mass flow controller has the same performance characteristics as the mass flow meter and is used in similar applications, and the two products can be ideally combined. You can find further information and detailed specifications about the mass flow controller on the SFC5400 website.
Features
- High accuracy at low flow rates (< 1 sccm)
- Excellent accuracy / repeatability (0.8% / 0.1% of measured value respectively)
- Wide dynamic range (turndown ratio 1000:1)
- Multiple gases and gas recognition
- Digital and analog interfaces
- Flexible mechanical connection options: down mount, VCR and VCO, Swagelok,
- C-/W-Seal, etc.
- Highly configurable
- MTBF 169 years - no recalibration required
