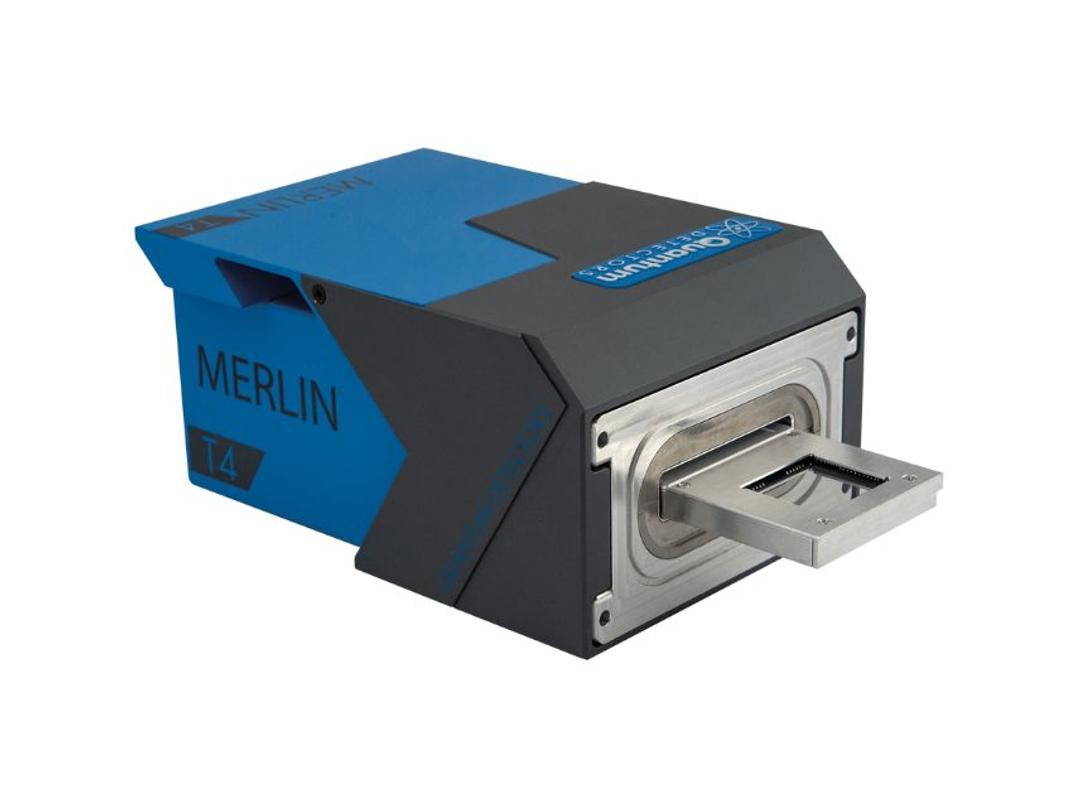

Merlin T4
Merlin T4 is a cutting-edge hybrid pixel detector engineered for ultrafast applications in STEMs. Ideal for 4D-STEM, ultrafast diffraction, and ultrafast TEM imaging of dynamic processes from all types of samples, including beam-sensitive materials.
Receive your quote directly from the manufacturer.
When every nanosecond counts, traditional detectors fall short. Merlin T4 is built for researchers pushing the limits of 4D-STEM, time-resolved TEM for imaging dynamic processes, and ultrafast diffraction for structural studies. Powered by CERN’s Timepix4 ASIC, it offers a unique combination of frame-based and event-based acquisition, letting you capture what others miss — without compromise.
With Merlin T4, your 4D STEM acquisition is no longer bound by traditional detector framerates; instead, you collect 4D-STEM data at native scanning speeds. Furthermore, whether you're studying phase transitions, beam-sensitive samples, or 4D-STEM, Merlin T4 delivers the fidelity and timing you need to reveal transient material behaviours in real time.
Key Features / Benefits:
- Dual-mode: event-based and frame-based acquisition
- Up to 40,000 fps with 200 ps timing resolution
- Handles fast dynamics without data loss
- Minimises damage to sensitive samples
- Built for next-generation 4D-STEM and ultrafast TEM
Relevant Applications:
- 4D-STEM and ultrafast diffraction
- Beam-sensitive materials
- In situ experiments
- Phase mapping and dynamic nanostructures
- High-speed crystallography
