Microlute Manifolds
Design to take most filkter plates manufactured to the ANSI/SLAS specification with long drip directors
Proteomics
Intuitive, but no control to flow rate.
Review Date: 20 Mar 2023 | Porvair Sciences Ltd
Microfluidics
An effective device helpful in achieving good results
Review Date: 16 Sept 2022 | Porvair Sciences Ltd

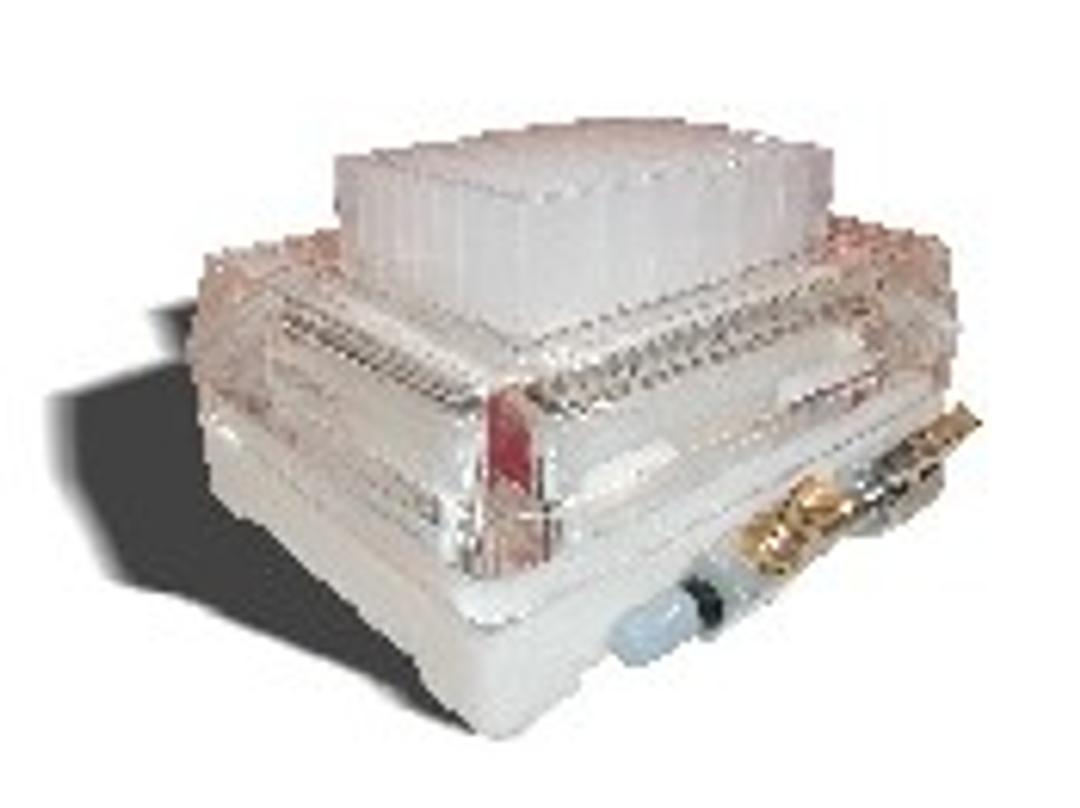

The MicroLute™ vacuum manifold from Porvair Sciences is precision machined from crystal clear acrylic (top plate) and acetal polymer (plenum chamber). The acrylic top plate allows visual access to the plenum chamber for checking progress of the separation process.
Designed to take most filter plates manufactured to the SBS/ANSI specification with long drip directors. Also designed so that SPE plates can be used, especially the Porvair Sciences MicroLute™ plate. Fitted with valve controller to ensure accurate adjustments of vacuum to the manifold. On/off valve for speed of use. Square well collection plate volumes of 350μl, 1ml and 2ml may be used. Any plate up to 44mm in height can be used. Fitted with a custom O-ring in upper surface allowing airtight interface between plates during operation. Removable top plate to install reservoir tray or collection plate. Chamber has a medium resistance to alcohols and weak acids
Microlute Manifolds Features:
- Designed to take most filter plates manufactured to the SBS/ANSI specification with long drip directors
- Also designed so that SPE plates can be used, especially the Porvair Sciences MicroLute™ plate
- Fitted with valve controller to ensure accurate adjustments of vacuum to the manifold
On/off valve for speed of use - Square well collection plate volumes of 350μl, 1ml and 2ml may be used. Any plate up to 44mm in height can be used
- Fitted with a custom O-ring in upper surface allowing airtight interface between plates during operation
- Removable top plate to install reservoir tray or collection plate
- Chamber has a medium resistance to alcohols and weak acids
Available also Robotic Version
