MODULIS™

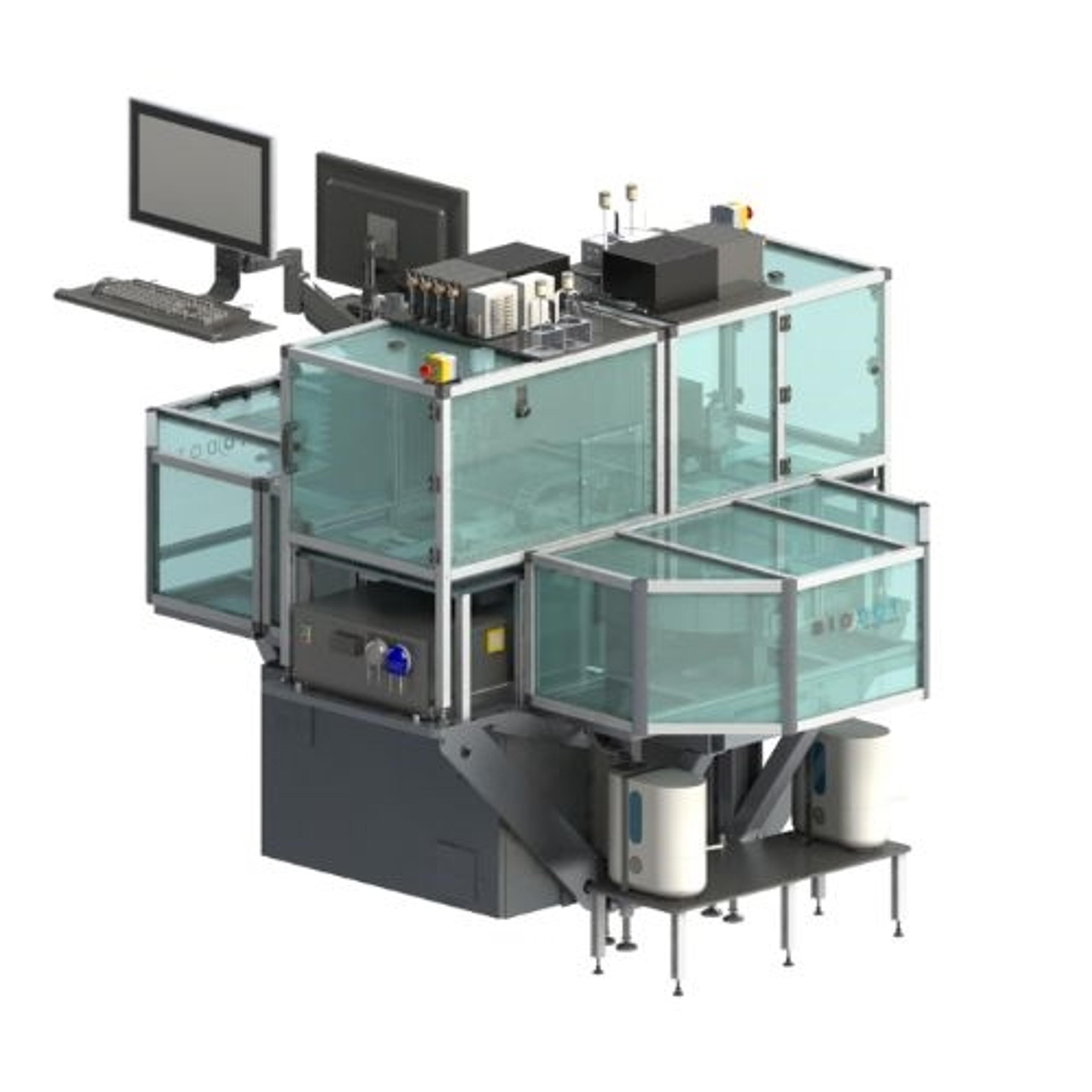

The BioDot MODULIS dispensing platform is a modular and scalable solution to achieve both the throughput and the precision that our partners require. We have integrated BioDot Dispensing Technology and workstations with ATS SuperTrak CONVEYANCE™ and ATS Cortex™ Vision System to transform production paradigms. MODULIS takes today's complex, miniaturized, and novel assays from parts per day (PPD) to parts per minute (PPM).

Product Features

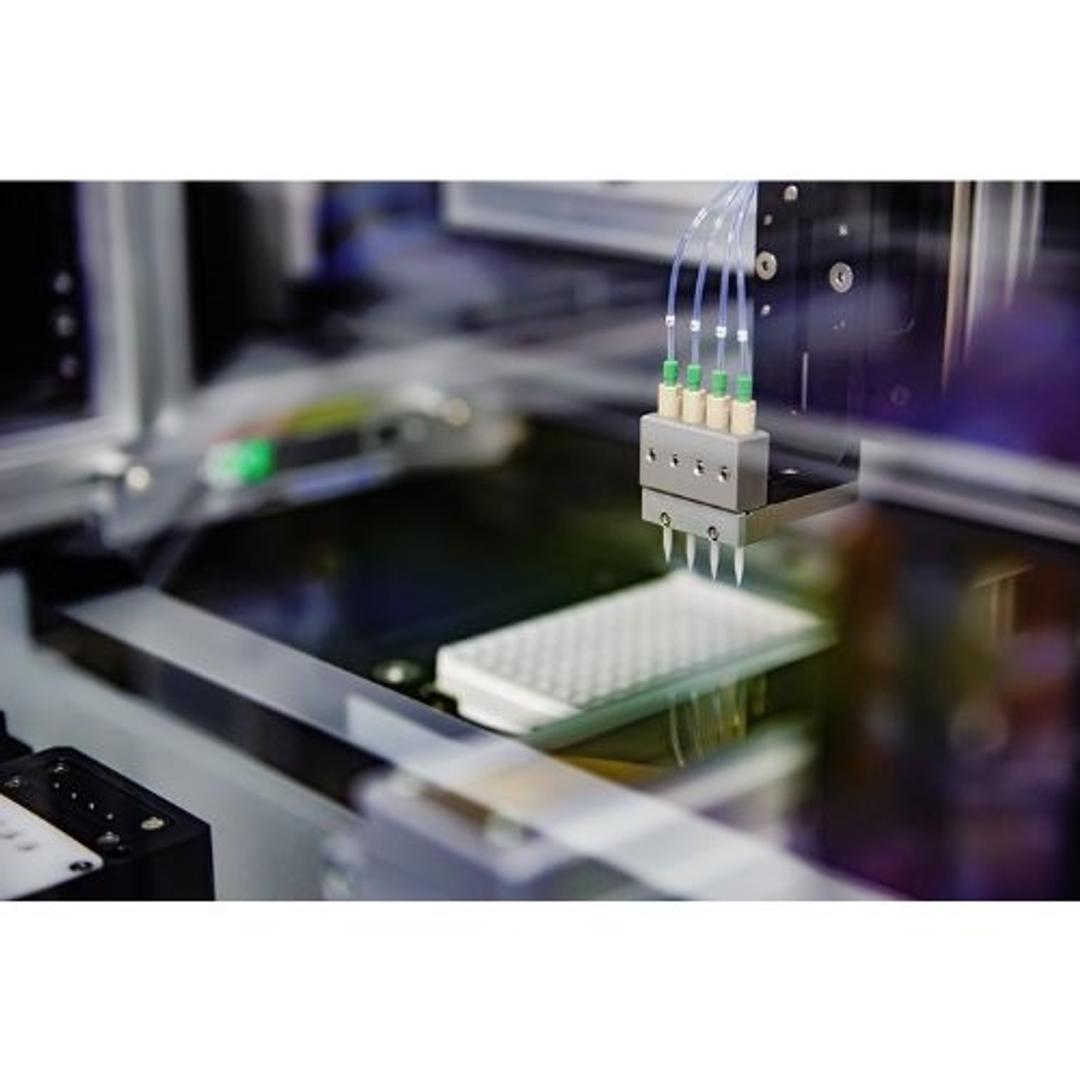

• BioJet Dispensing Technology
• Rainmaker Dispensing Technology
• Individual Dispense Station Control
  • Aspirate and Dispense or Bulk Dispense
  • Wash Station
• ATS SuperTrak Smart Conveyance Technology
  • 4m/sec Conveyor Speed
  • 10um conveyance precision
  • Independent Pallet/Shuttle Motion Control
• Master PLC Control with Global and Individual Station Control
• Modular, Scalable Design
• 25pl to 4ul Dynamic Range (per Discrete Droplet)

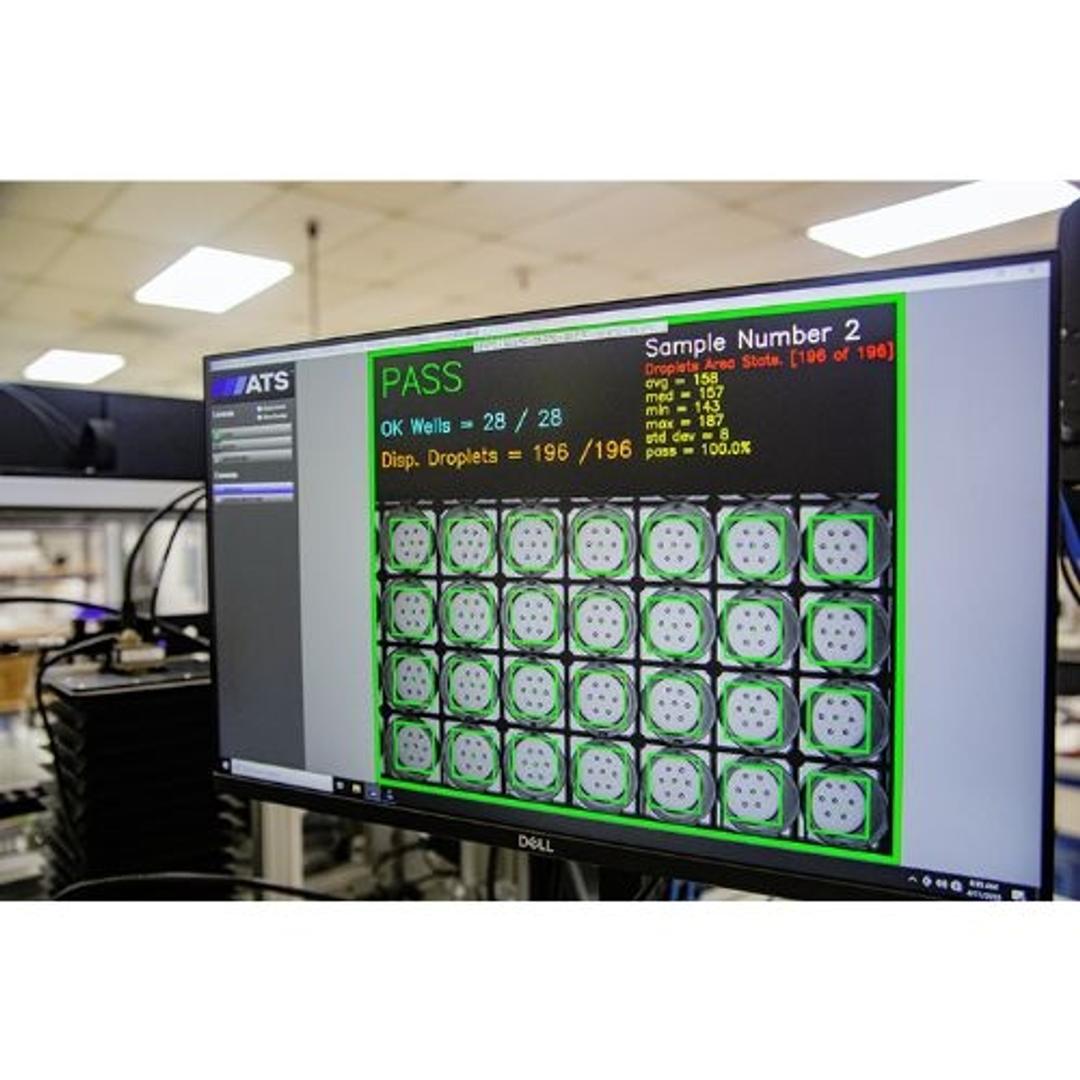

• ATS SmartVision (Part Inspection, Dispense Location Targeting)
• Individual/Parallel Station Processing

Applications
Miniaturized/Multiplexed Diagnostics

• Biosensors
• Microfluidics
• BioChip
• Low/Medium/High Density Microarray
• Micro ELISA
• SBS/MPT Formats
  • 96-well
  • 384-well
  • 1536 -well
  • 3456-well
  • Custom (>10,000-well)
• Lateral Flow/Membrane-based arrays
• Next Generation Consumer Diagnostics

Life Science

• Massively Scaled Assay Construction (High Throughput Screening, Genomics, Proteomics, Cellomics)
  • 96, 384, 1536, 3456 MTP Formats
  • Lab-on-a-Chip
  • Novel, Next Generation Devices

Options

• Infinite Module Expansion
  • ('n' Dispensing Station Modules produce at 1/'n' cycle times)
  • Horizontal Drop Camera
  • 1-24 Dispensing Channels Per Station
• ATS Illuminate Process Monitoring and Reporting
• Part Loading/Offloading
• Additional Process Step Integration
  • High Precision Assembly
  • Drying/Cooling
  • Packaging
  • Custom Solutions
