Products & ReviewLife Sciences

Objective W "Plan-Apochromat" 63x/1.0 M27

Objective W Plan-Apochromat 63x/1.0 M27 (FWD=2.1mm), VIS-IR

Request Pricing
ZEISS Research Microscopy Solutions

Receive your quote directly from the manufacturer.

Average Rating 5.0

|1Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Average Rating 5.0

Application Area:

Raman imaging of cell cultures

This is a dip in 63x objective, suitable for measurements of the cell cultures. It is easy to use, suitable for both vis and IR measurements in both 2D and 3D cell cultures. The magnification is enough to see the cell nuclei.

Review Date: 17 Jan 2019 | ZEISS Research Microscopy Solutions

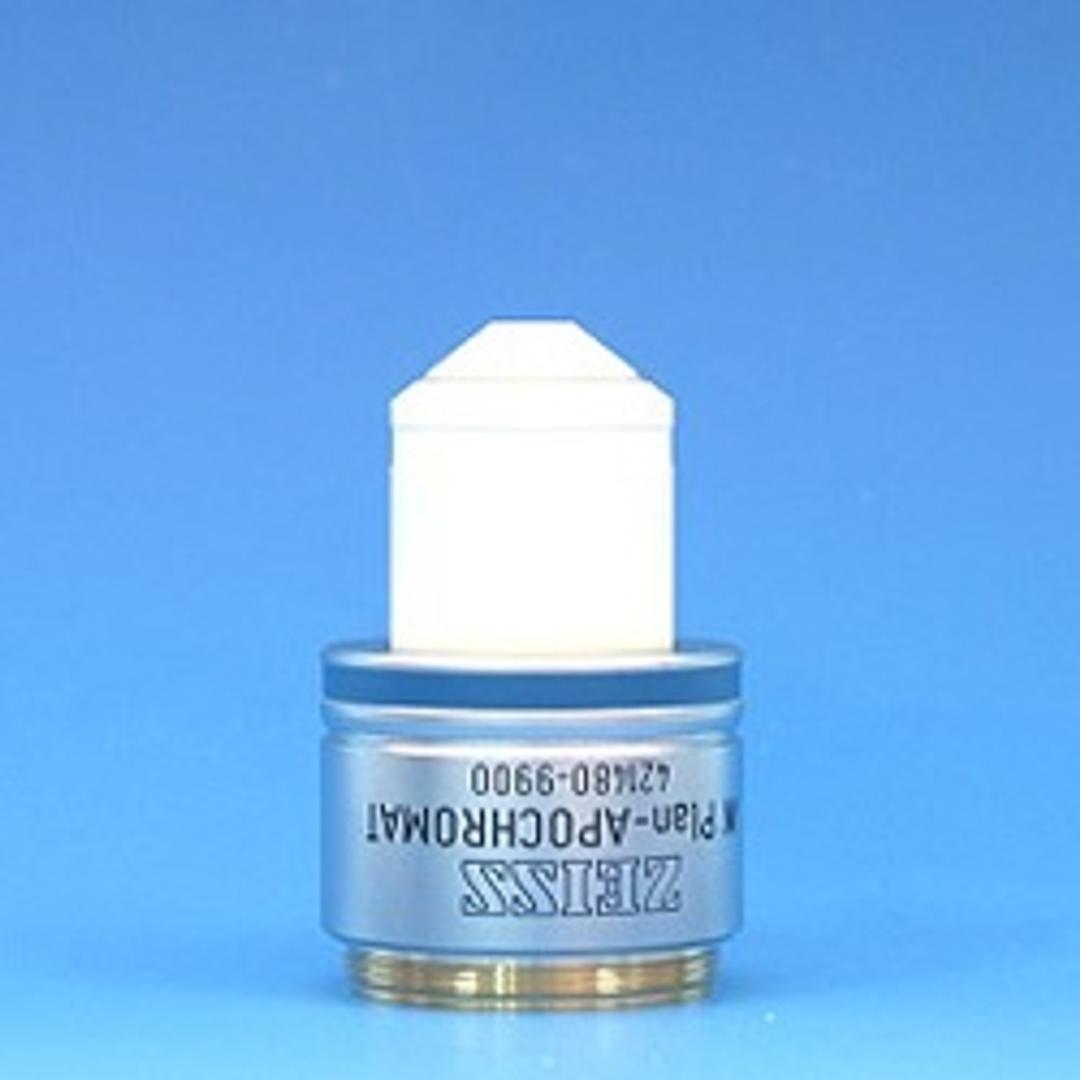

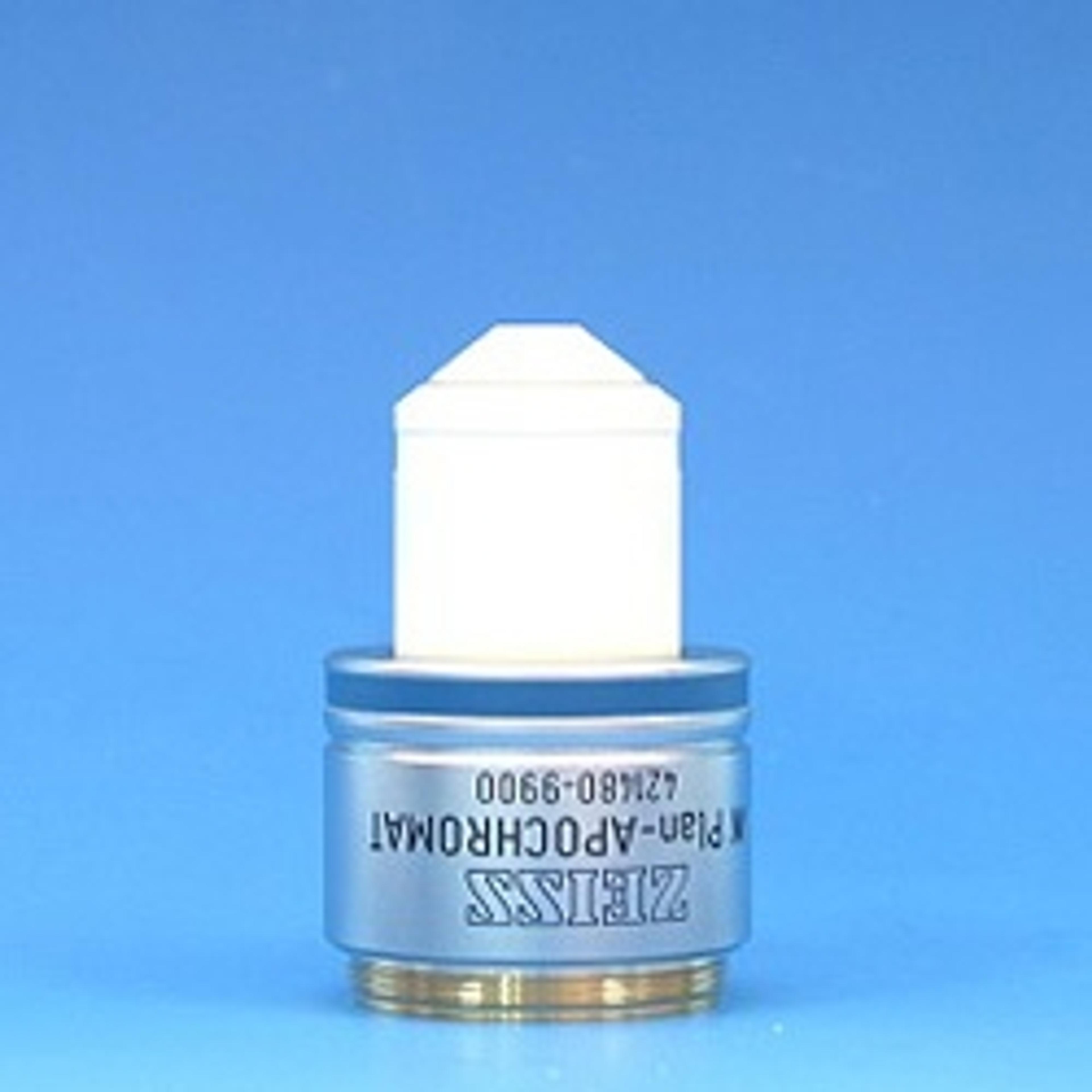

Objective W Plan-Apochromat 63x/1.0 M27 (FWD=2.1mm), VIS-IR

As an addition to the water "Achroplan" objectives, the water "Plan-Apochromat" objectives have also become available. They are apochromatically corrected from VIS to IR and designed for use without cover slip. Compared with the water "Achroplan" 63x/0.9, the new water "Plan-Apochromat" 63x/1.0 yields 50-100% more light. Between 450 nm and 1000 nm, the typical transmission values of the water "Plan-Apochromat" are higher than 80%, and higher than 50% at 365 nm. The objectives feature a slim front with a 20 mm diameter and a 36° access angle to the object plane. The front consists of plastic material that was originally developed with the properties required for food technology. Therefore, these objectives are ideal for 2-photon microscopy, electrophysiology and patch clamp applications.
