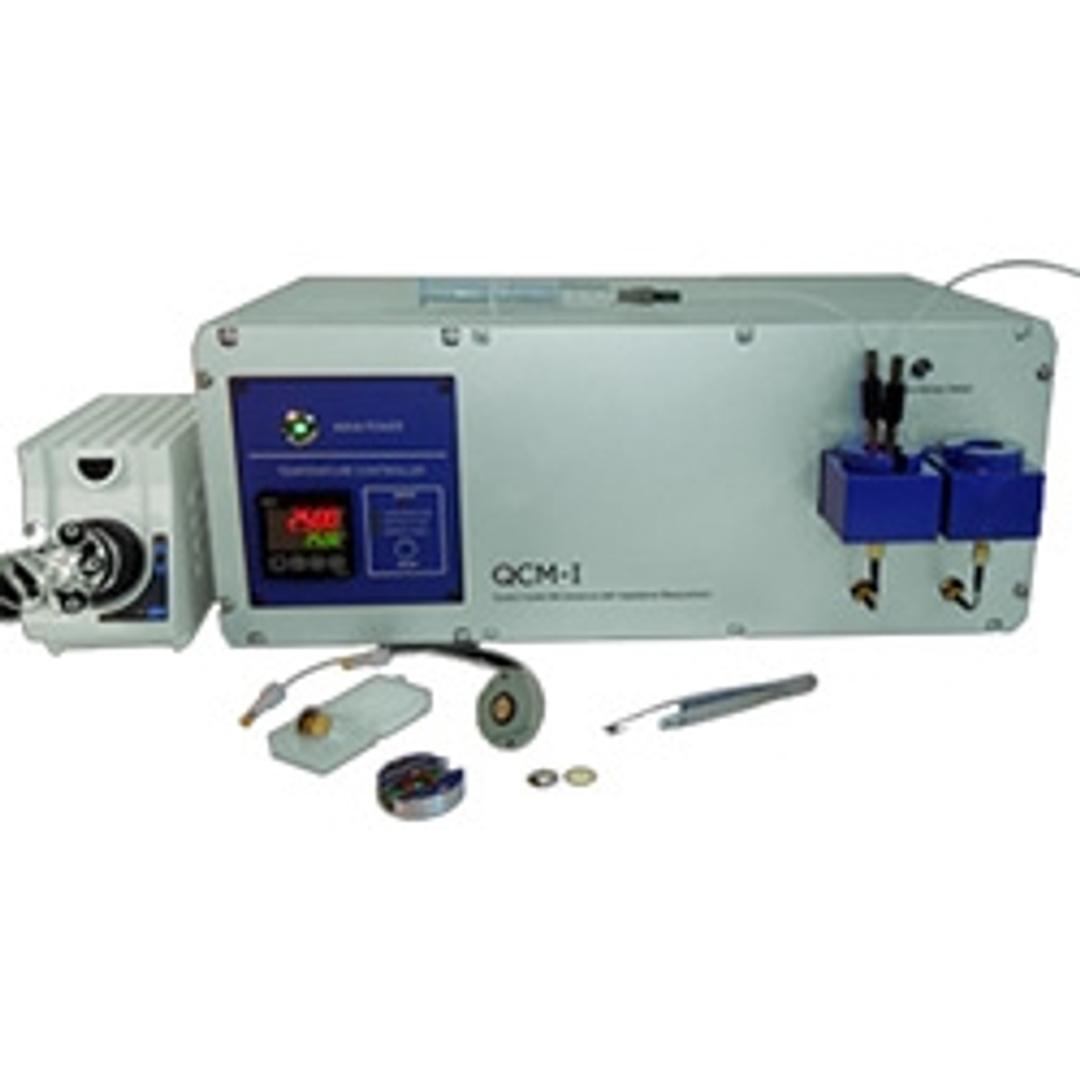

QCM-I Quartz Crystal Microbalance

Gamry Instruments992-00138Available: Worldwide

With Impedance Measurement and Dissipation.  Both frequency and quality of resonance are measured.

Request Pricing
Gamry Instruments

Receive your quote directly from the manufacturer.

Ease of Use
After Sales Service
Value for Money
Write your own review

QCM-I Quartz Crystal Microbalance is a high-sensitivity mass sensor which measures the change in frequency and dissipation of a quartz crystal resonator and any adsorbed film.

QCM-I Features:

  • Both the frequency and the quality of resonance (FWHM or bandwidth or dissipation) are measured
  • Different harmonics (up to the 13th overtone at 5MHz crystals) can be quickly and sequentially measured
  • Temperature control from 4°C to 80°C (± 0,02 °C) is included
  • EC measurement module is optionally available with ITO-QCM sensors
  • Modular sensor holder up to 4 measuring channels
  • External PC with Windows® 10; communication with QCM-I via USB
