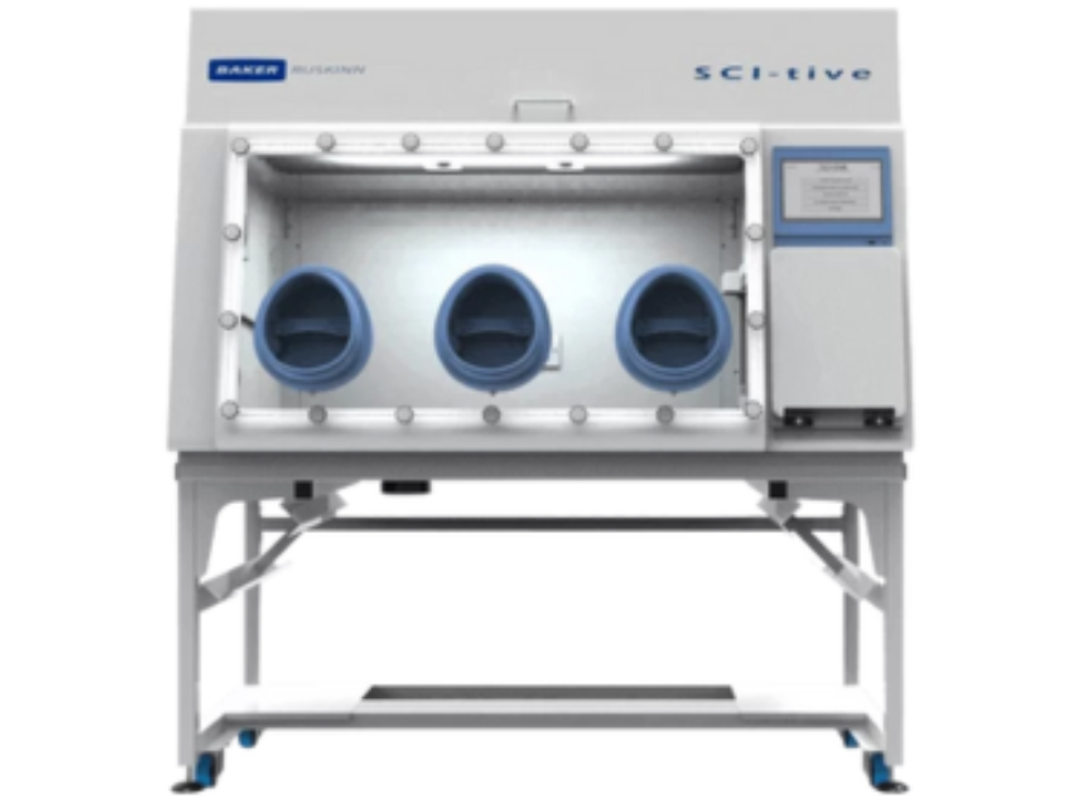

SCI-tive - Larger physiological cell culture workstations
Baker Ruskinn’s SCI-tive range of advanced hypoxia workstations is perfectly suited for cell culture under physiological oxygen, helping to yield better stem cell lines by eliminating cellular stress linked to variations in temperature, pH and oxidation. SCI-tive’s closed cell culture environment mimics in vivo conditions with precise, user-defined controls, allowing you to study even the most complex cell interactions.
Receive your quote directly from the manufacturer.
Baker Ruskinn’s SCI-tive range of advanced hypoxia workstations is perfectly suited for cell culture under physiological oxygen, helping to yield better stem cell lines by eliminating cellular stress linked to variations in temperature, pH and oxidation. SCI-tive’s closed cell culture environment mimics in vivo conditions with precise, user-defined controls, allowing you to study even the most complex cell interactions. It’s spacious interior provides a continuous, controlled-oxygen environment, from seeding through expansion, assay and harvest, and easily accommodates a variety of analytical equipment – no more working on an open bench. SCI-tive’s optional HEPA filtration system provides clean air within the work area to protect cultures from contaminants, and an upgraded enhanced containment package provides user protection.
- Internal HEPA filtration to Class 4 (ISO 14644-1)
- Data log (one data set per minute, each set comprises: time, date, O2 (set/actual), CO2 (set/actual) humidity, temperature)
- Multi-cable gland (up to 6 individual cables)
- Alarm settings
- Removable from 420L usable chamber volume
- CO2 control (from 0.1% to 30.0% in 0.1% increments)
- Detox sachet (large)
- Temperature control (5 °C above ambient to 45.0° C in 0.1° C increments)
- Interlock has O2 control and heating
- Internal power sockets x3
- O2 control (from 0.1% to 23.0% in 0.1% increments)
- Gas sample port
- Vacuum port connector
- Light Control (on/off, dimming function)
External Dimensions
Width: (side to side, exclude gas mixer): 1660 mm/ 65"
Depth: 826 mm/ 32.5"
Height: (excluding stand): 1077 mm/ 42"
Internal Dimensions
Width: 1200 mm/ 47"
Depth: 600 mm/ 23.5"
Height: 690 mm/ 27"
Workstation Weight
Approx: 230 KG/ 507 Lbs
Alarms
Temperature
Humidity
Gas Pressure
Interlock Dimensions
Width: 270 mm/ 11"
Depth: 200 mm/ 8"
Height: 210 mm/ 8"
Interlock Cycle Time
60 seconds
Atmosphere Controls
Temperature: Ambient +5°C -45°C
Humidity Control: Ambient -85% RH
O₂ Control: 0.0%-20.9%
CO₂ Control: 0.0%-30.0%^
