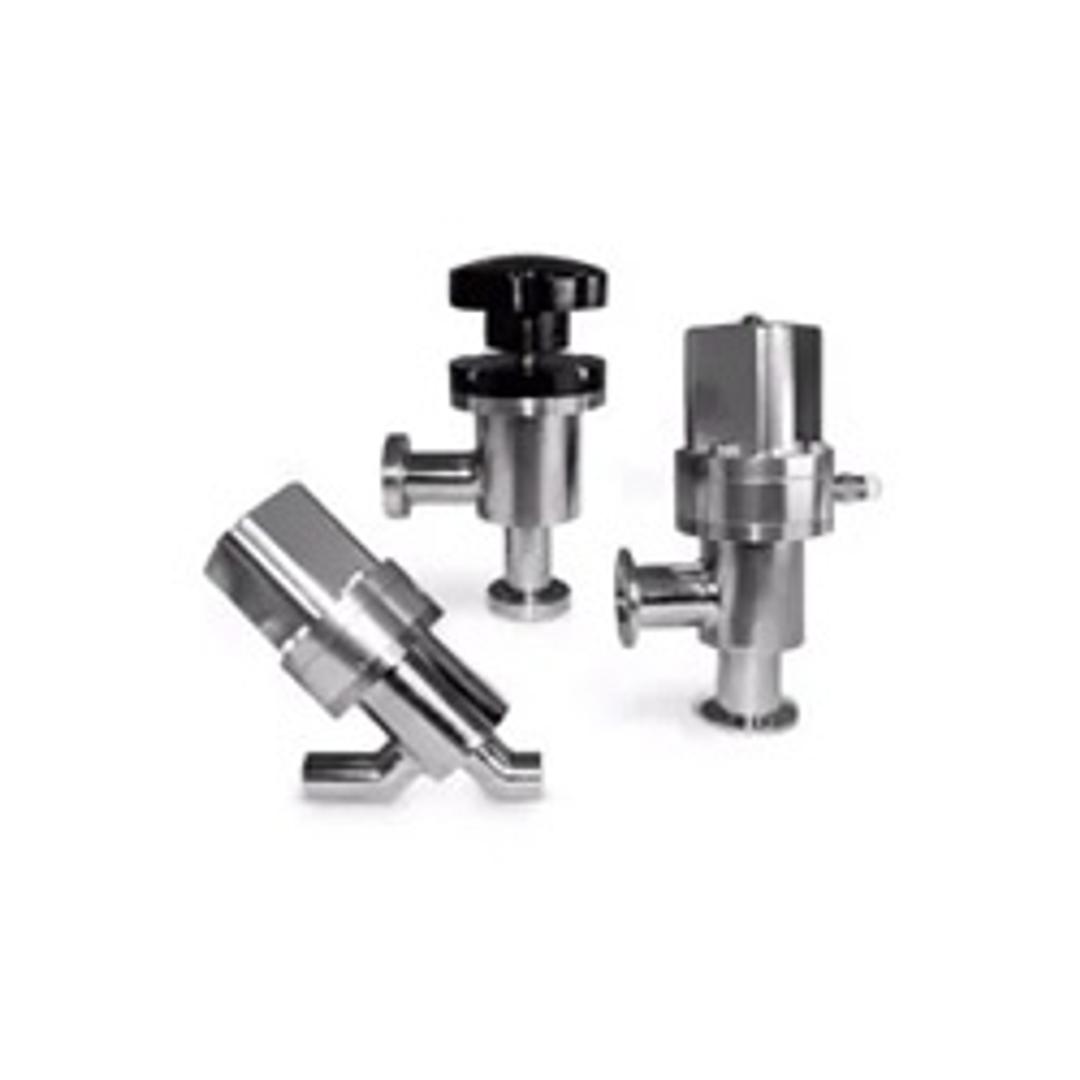

Stainless Steel Tube Valves
Agilent’s family of vacuum Stainless Steel Tube Valves are designed to connect our rough vacuum and high vacuum pumps to your system. Delivering maximum conductance and sized for easy, convenient installation, these valves are ideally suited for systems requiring high reliability with low outgassing.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Agilent’s family of vacuum Stainless Steel Tube Valves are designed to connect our rough vacuum and high vacuum pumps to your system. Delivering maximum conductance and sized for easy, convenient installation, these valves are ideally suited for systems requiring high reliability with low outgassing. Excellent low outgassing characteristics are derived from the valve’s fusion welded 304 stainless steel body, welded AM-350 stainless steel nesting bellows and small cross section elastomers and do not contain any blind internal cavities. In combination with our popular hardware products, the new stainless steel valves offer a complete, bundled solution for your vacuum system, making it possible for convenient one-stop shopping for everything required to connect Agilent vacuum pumps to your system.
Features:
- Long life edge welded bellows actuator seal for 1.5 Million life cycle
- TIG welded internal body joints
- Electropolished interior and exterior surfaces
- ConFlat metal seal flanges, recommended for ultrahigh vacuum service
- KF, ISO flanges for quick elastomer seals, ideal for high vacuum applications requiring frequent assembly and disassembly
- Tube-Weld ports for permanent connections
- Manual and Electropneumatic actuators
- Viton® elastomer bonnet seals
- Optional Magnetic reed switch position indicators
- Optional Air control solenoid valves for 115VAC, 240VAC and 24VDC service
