SU-8 3000
SU-8 3000 is a high contrast, epoxy based photoresist designed for micromachining and other microelectronic applications, where a thick, chemically and thermally stable image is desired.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
I won't buy from another manufacturer
Microfabrication
The product is the highest quality in the market, and the company has very good after-sales services as well.
Review Date: 26 Mar 2019 | MicroChem
SU-8 3000 is a high contrast, epoxy based photoresist designed for micromachining and other microelectronic applications, where a thick, chemically and thermally stable image is desired.
SU-8 3000 is an improved formulation of SU-8 and SU-8 2000, which has been widely used by MEMS producers for many years. SU-8 3000 has been formulated for improved adhesion and reduced coating stress. The viscosity range of SU-8 3000 allows for film thicknesses of 4 to 120 µm in a single coat.

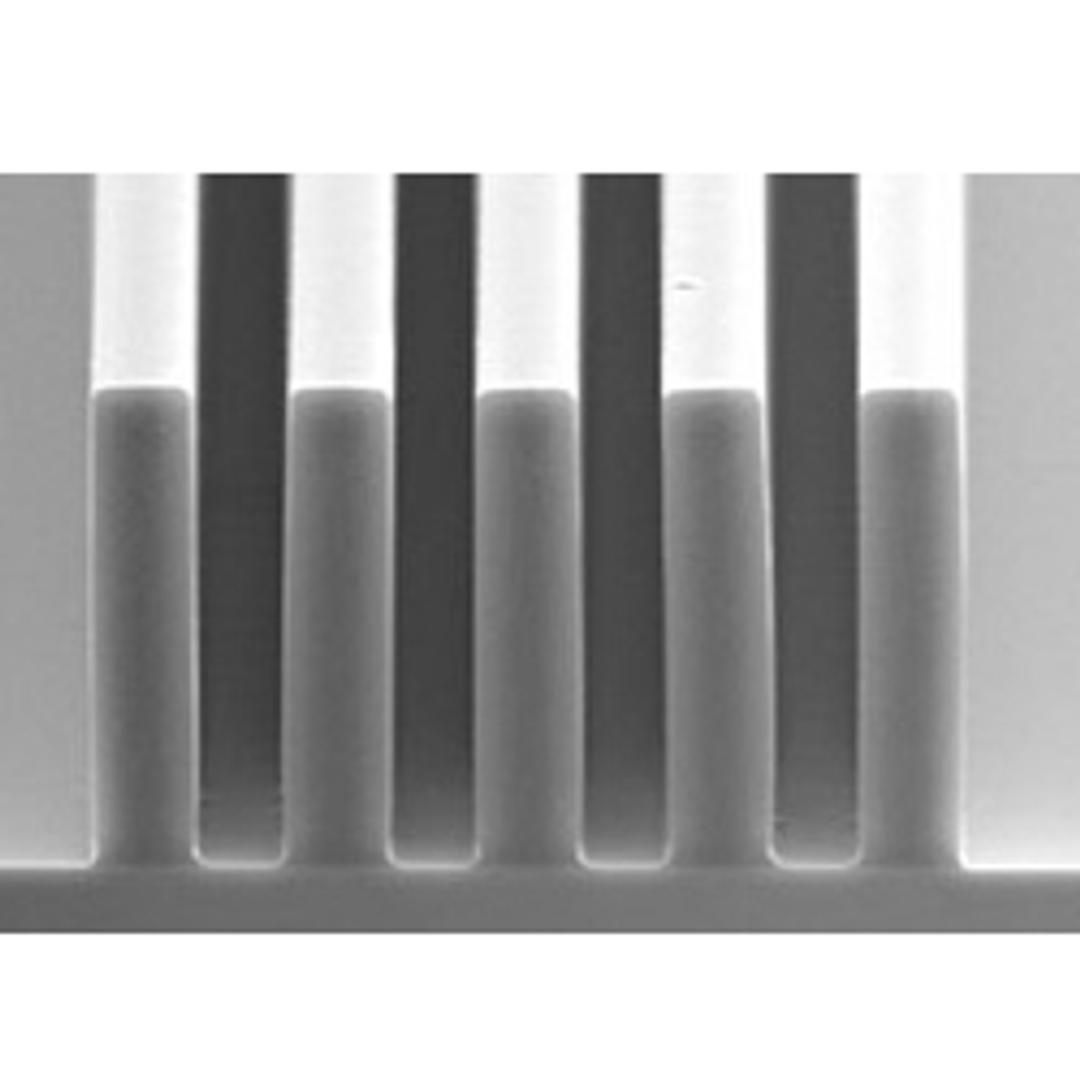

SU-8 3000 has excellent imaging characteristics and is capable of producing very high, over 5:1 aspect ratio structures. SU-8 3000 has very high optical transmission above 360 nm, which makes it ideally suited for imaging near vertical sidewalls in very thick films. SU-8 3000 is best suited for permanent applications where it is imaged, cured and left on the device.
Features:
- Improved adhesion
- Reduced coating stress
- High aspect ratio imaging
- Vertical sidewalls
- Greater than 100 µm film thickness in a single coat
- Excellent dry etch resistance
Material uses:
- Waveguides
- Microfluidics
- Stamps
