TPS-compact Turbo Pumping System

Agilent TechnologiesAvailable: Worldwide

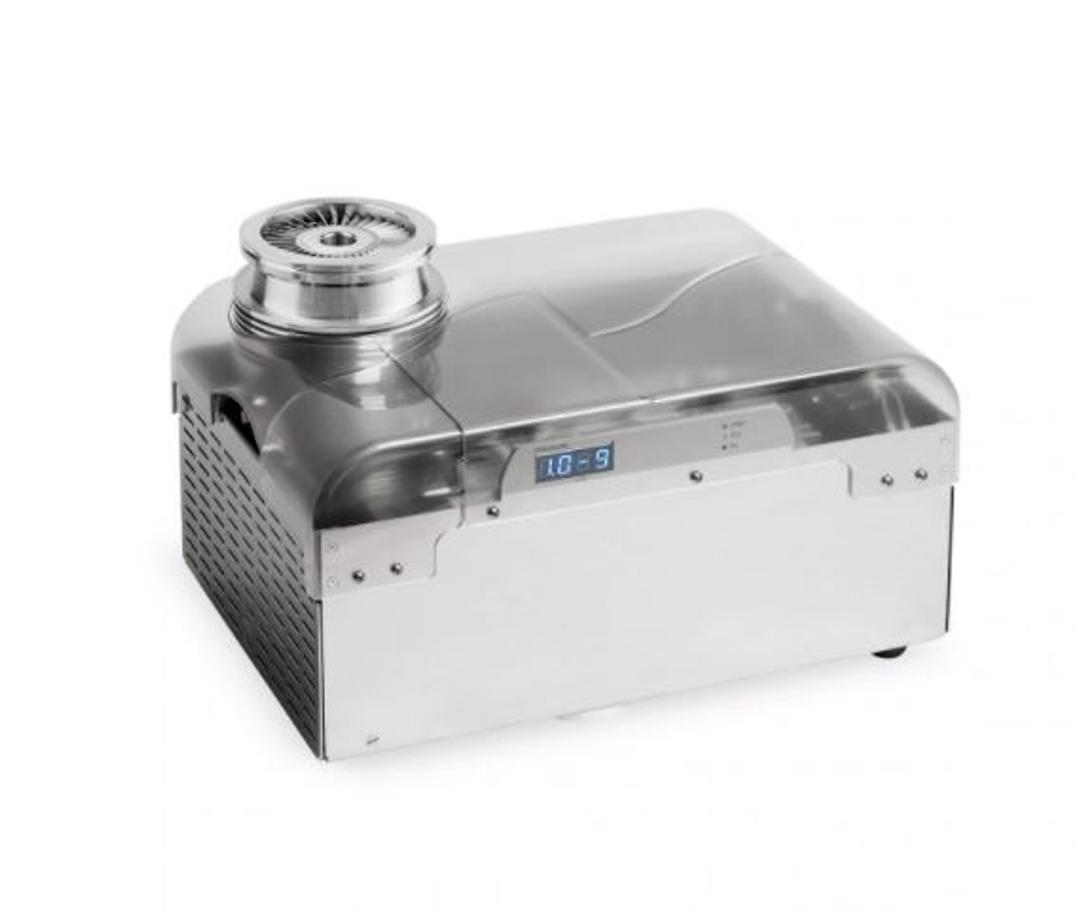

The TPS-compact is a portable, hydrocarbon-free pumping station. Available with either the TwisTorr 74 FS or 305 FS turbomolecular pumps and backed by the Agilent 3 m 3 /h (60 L/min) dry scroll pump technology, it offers the fastest pump-down on the market in a compact package. The large pressure display is capable of reading a variety of active gauges.

Agilent Technologies

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

The TPS-compact is a portable, hydrocarbon-free pumping station. Available with either the TwisTorr 74 FS or 305 FS turbomolecular pumps and backed by the Agilent 3 m3/h (60 L/min) dry scroll pump technology, it offers the fastest pumpdown on the market in a compact package. The large pressure display is capable of reading a variety of active gauges.

The TPS-compact pumping system can operate on worldwide voltages and is CE/CSA-UL certified.

The system is ideal for medium-size chambers up to 100 L, in university laboratories, industrial applications, and medical applications. The simple to use, on/off switch gives you a high vacuum with the flip of a switch.

Features:

  • Dry, integrated 3 m3/h scroll pump (IDP-3) for fast roughing
  • Plug and pump design for easy, one-switch operation
  • Compact footprint for easy portability
  • Onboard electronics and display to read full range gauge pressure from atm to base pressure
  • Ready for Vacuum Link app to give full pump control through your mobile phone
  • Multiple turbo pump sizes to meet your application needs
  • High turbo pump compression ratio enabling low base pressure, down to 1 x 10-9 mbar
  • Analog I/O provides accurate control of the system and pressure-driven setpoint
  • Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
  • Wide voltage range (90–240 V) for worldwide operation
  • CE/CSA certification
