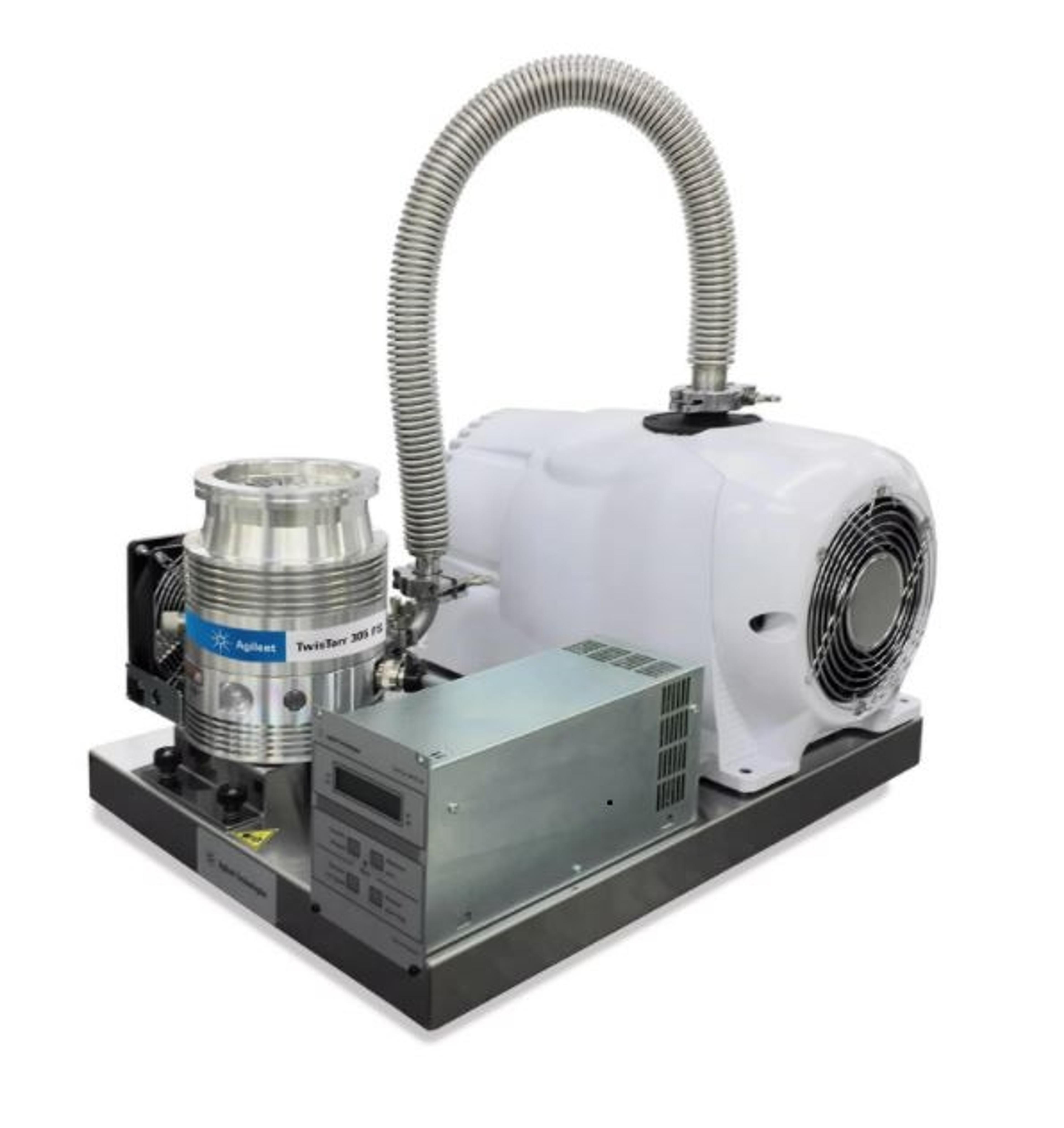

TPS-flexy Turbo Pumping System

The Agilent TPS-flexy turbo pumping system is a flexible, customizable high-vacuum system. Choose from three dry backing pumps—IDP-7 scroll pump, IDP-3 scroll pump, or MD-1 diaphragm pump—and two turbo pump options, Twis Torr 74 FS or 305 FS. With 40+ options to choose from, you can find the right combination for your application.

The TPS-flexy package allows you to select components and configure the system yourself to meet a wide array of challenging applications. Quickly detach the turbo pump from the platform for direct mounting on your system for maximum pumping speed.

Features:

• Flexibility: Turbo pump can be easily detached from the system to be mounted in any orientation on the vacuum chamber, in minutes
• Customization: Build your ideal system, choosing from 50+ configurations based on your specific requirements
• Gauge reading function available to provide the real-time pressure reading on turbo pump controller LCD display
• Ready for Vacuum Link app to give full pump control through your mobile phone
• Serviceability: Easy and fast field replacement of single components provided with Agilent Advanced Exchange Service
• Fast delivery: Based on standard components to allow quick configuration, receiving, and assembly
• Multiple turbo pump sizes to meet your application needs
• Three voltage options (100, 120, and 240 V) for worldwide operation
• Analog I/O provides accurate control of the system and pressure-driven setpoint
• Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
