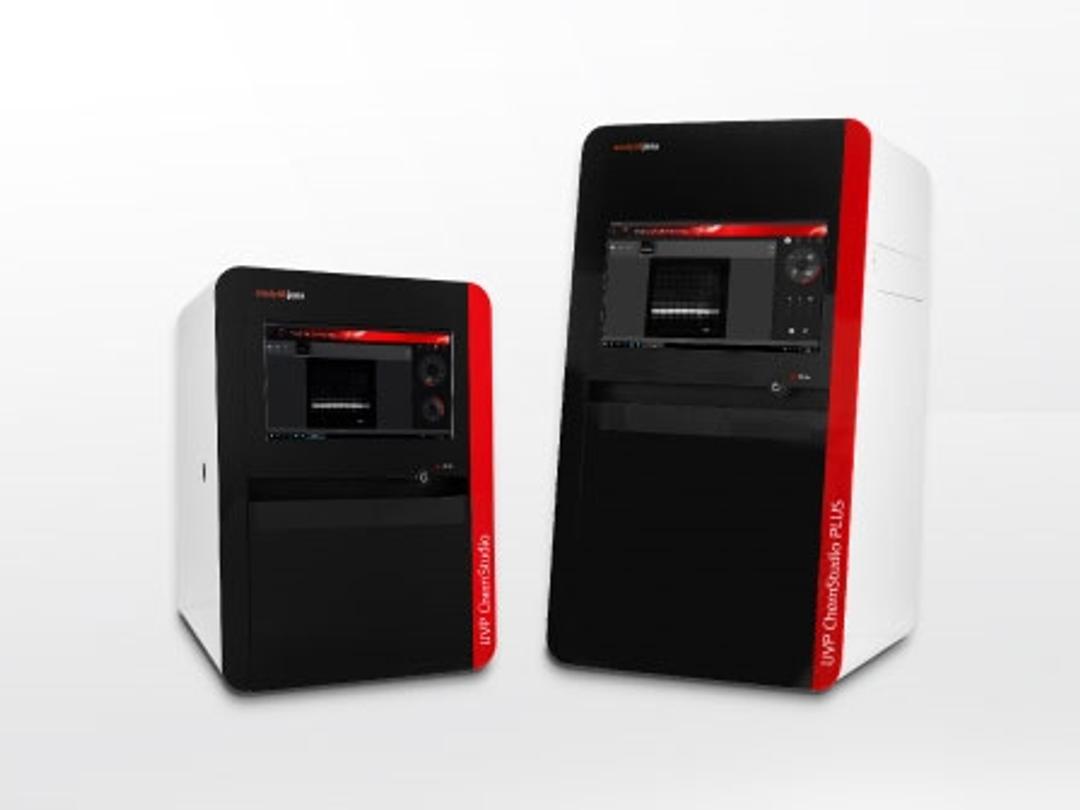

UVP Chemstudio PLUS Imaging System

UVP, An Analytik Jena CompanyAvailable: Worldwide

The UVP ChemStudio series imagers are used for high sensitivity imaging of Western blots, fluorescent Westerns, immunoblots, protein blots, DNA gels, protein gels, blue light gels, colony plates and a wide range of stains and dyes.

Request Pricing
UVP, An Analytik Jena Company

Receive your quote directly from the manufacturer.

Average Rating 5.0

|1Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Average Rating 5.0

UVP offer the system with the better specifications amongst others in the same category.

Review Date: 7 Jun 2011 | UVP, An Analytik Jena Company

The UVP ChemStudio and UVP ChemStudio touch are essential to laboratories performing genomic and proteomic applications. No film is required for imaging. UVP ChemStudio touch imagers are stand-alone, touch screen operated imagers with a small footprint, which maximizes laboratory bench space. It is also available as an external computer-operated system on the UVP ChemStudio for those laboratories with particular IT/computer requirements. Features: UVP ChemStudio touch is a stand-alone, touch screen automated system with a small footprint. Choose from an advanced 8.1 MP version or a highly sensitive 6.0 MP resolution system. Optimized f/0.95 lens optics for maximum light sensitivity and quick capture speeds in low-light or long exposure applications. Overhead white and blue LEDs included. Field upgradeable for red and green LEDs for multiplex applications. Expanded wavelengths are available from 400-800 nm wavelengths. Ergonomic features: a new Thin-Line Transilluminator with a 21 x 17 cm maximum illuminated imaging, in a pull-out tray, automated emission filter wheel, and 13.3-inch integrated touch screen computer. Imagers include specialized customer service and technical support. Dedicated application support teams are always available. Bioimaging specialists provide on-site demos, installation, technical service, and upgrades. The imager is modular allowing the addition of accessories. Both touch and non-touch versions of the system are available as larger PLUS systems with an increased illuminated imaging size of 25 x 26 cm and a larger 15.6-inch touchscreen (for 'touch' models).
