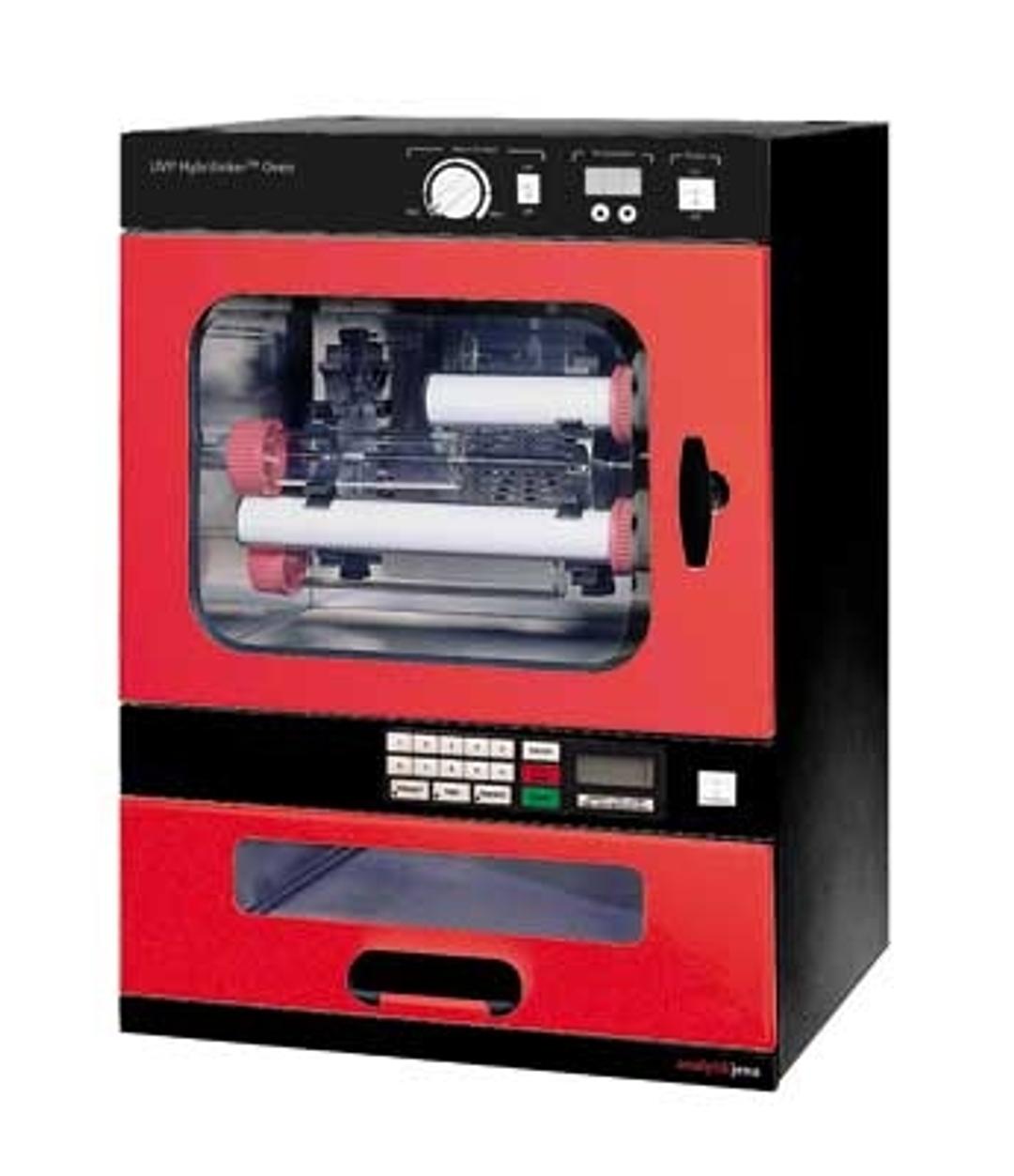

UVP HybriLinker Oven

The UVP Hybrilinker Oven is a self-contained unit which provides the unique combination of a hybridization oven and a 254 nm ultraviolet crosslinker.

Request Pricing
Analytik Jena GmbH+Co. KG

Receive your quote directly from the manufacturer.

Ease of Use
After Sales Service
Value for Money
Write your own review

Innovative UVP HybriLinker® Oven combines the benefits of a Hybridizer and UV Crosslinker (254nm UV) in one self-contained, space saving unit.

Key Features:

  • This unique, new design for the Life Science Laboratory allows crosslinking and hybridization at one location
  • Hybridizer and Crosslinker portions of the UVP HybriLinker® operate independently of each other
  • The Crosslinker is also available as a stand-alone unit
  • Temperature control (ambient to 99.9ºC)
    Variable speed control (10 to 18 RPM) enabling consistent saturation of samples, whether it be for washing or hybridizing
  • Large LED display
  • Stainless steel internal construction
  • Multiple bottle sizes, arrangements and off-set bottle positions (three bottle sizes available)
  • Optional rocker plate

    In addition to the hybridization oven features mentioned above, the Crosslinker features:
  • Preset and manual controls for ultraviolet or time exposures Preset exposure delivers 120,000 microjoules or five minutes of exposure Shortwave 254nm, 8 watt, ultraviolet tubes
  • Microprocessor measures and controls UV output, ensuring maximum energy efficiency
  • Large LED display continuously displays time or energy settings
  • Tactile membrane switch keypad
  • Window on the door allows viewing of the process yet blocks out the UV radiation

    Dimensions: 17.5W x 24H x 15D in. (445 x 610 x 381 mm)
