The CD-4095 is a unique HPLC detector for measuring circular dichroism developed from the market leading J-Series circular dichroism spectropolarimeter.Optically active compounds with a chromophore close to a chiral center may absorb circularly polarized light, which can be detected with excellent sensitivity and selectivity. When chiral compounds are measured using a UV-Visible detector, the d- and l- enantiomers cannot be di…
The OR-4090 Chiral detector measures the angle of rotation of plane polarized light caused by optical active isomers and is useful for chiral compounds with no absorption.The OR-4090 uses a high intensity Hg-Xe arc lamp (150W) providing a strong output in the UV/Visible region where the largest optical rotations offer the highest sensitivity. The wide wavelength range from 350-900nm also allows measurement of a wide variety of…
User friendly features include the IQ Accessory function for automatic accessory recognition and IQ Start for immediate start of registered data collection applications when conducting routine measurements.Two graphical user interfaces are available including a newly redesigned intelligent remote module (iRM) with a color LCD touch screen or Spectra Manager II software, the latest version of JASCO's innovative, cross-platform…
The optical bench in the V-760 UV-visible spectrophotometer utilizes a double monochromator to provide exceptional resolution with extremely low stray light (0.00008%) to assure more precise measurement over the widest photometric range.The V-760 provides excellent sensitivity for diffuse reflectance or transmittance of solid and liquid samples using an integrating sphere. The spectral bandwidth can be set as narrow as 0.1 nm…
The optical design employs ‘true double beam optics’ with a chopper providing timed sample, reference and dark current measurements.A high sensitivity PMT (photomultiplier tube) provides accurate and reproducible measurements of both low (and high) concentration samples. By controlling the high voltage applied to the PMT, the dynode feedback circuit allows a wider dynamic range. It also provides excellent sensitivity for diffu…

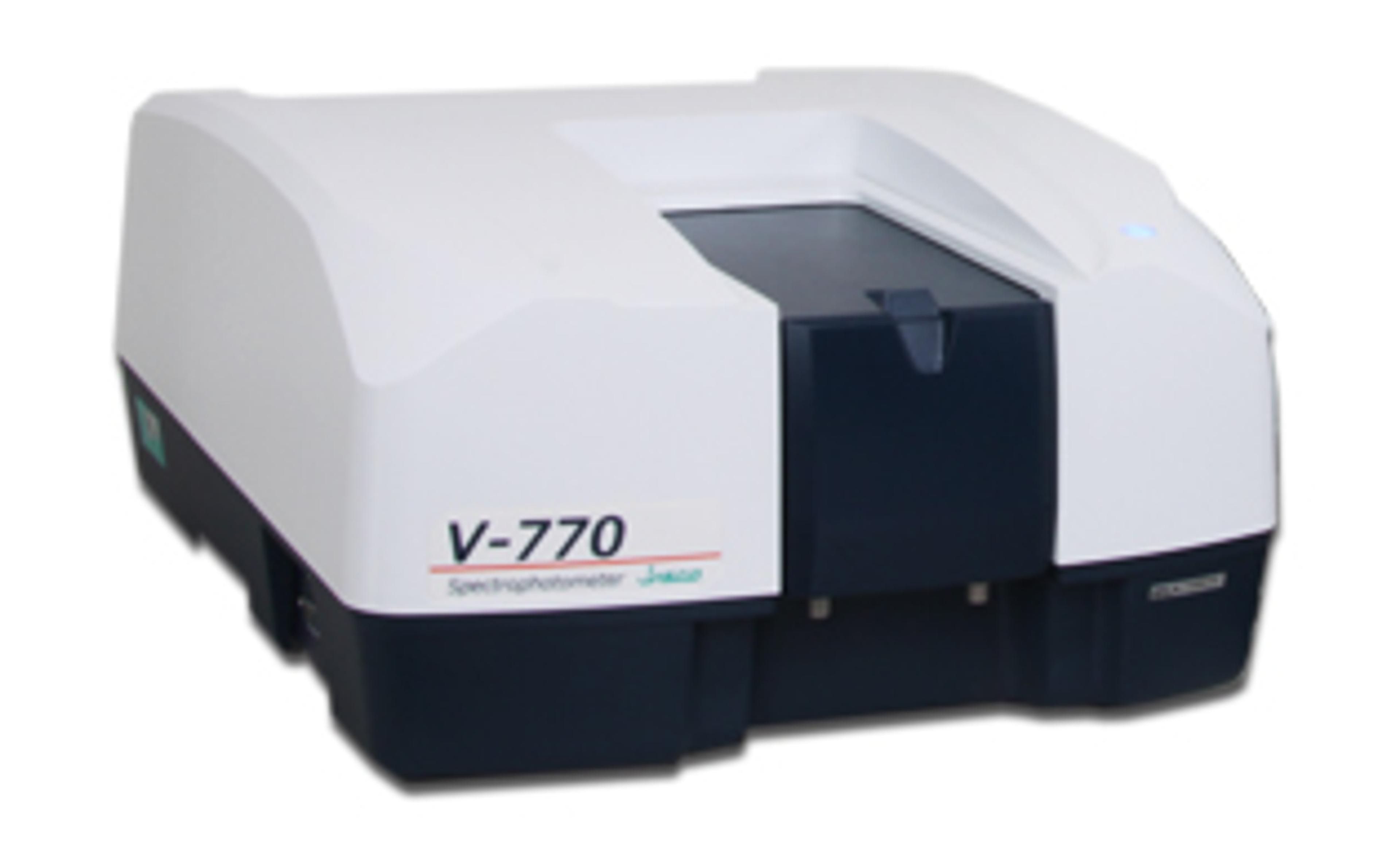

The V-770 UV-Visible-Near Infrared (UV-Vis/NIR) spectrophotometer features a monochromator with automatically exchanged dual gratings: 1200 lines/mm for the UV/VIS region; 300 lines/mm for the NIR region. A PMT detector is provided for the UV-visible region and a Peltier-cooled PbS detector is employed for the NIR region. Both gratings and detectors are automatically exchanged within the user selectable 800 to 900 nm range.
The V-780 UV-Visible-Near Infrared (UV-Vis/NIR) spectrophotometer features a monochromator with automatically exchanged dual gratings: 1200 lines/mm for the UV/VIS region; 600 lines/mm for the NIR region. A PMT detector is provided for the UV-visible region and a high sensitivity InGaAs photodiode detector is employed for the NIR region. Both gratings and detectors are automatically exchanged within the user selectable 800 to…
