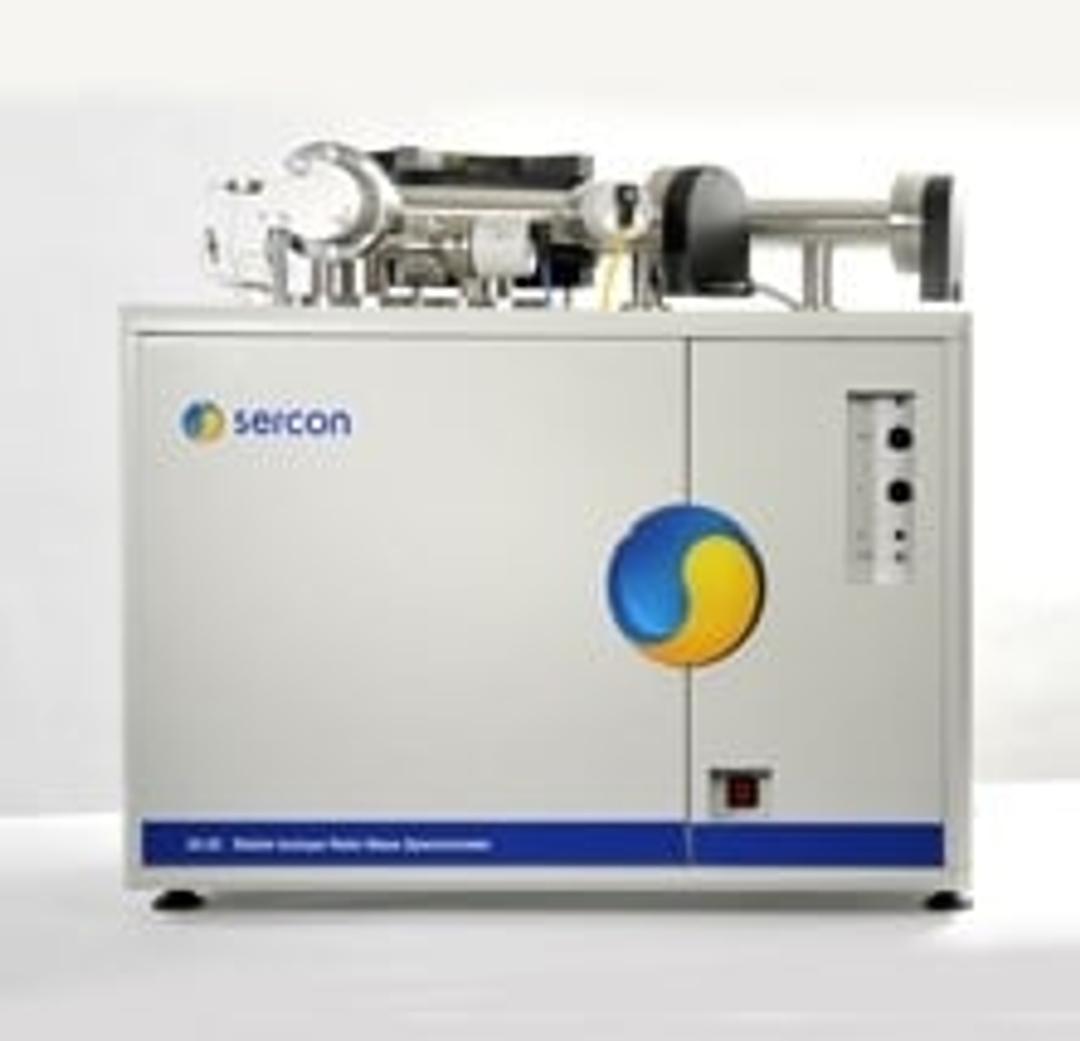

20-22 Isotope Ratio Mass Spectrometer

Combining superior analytical performance with class leading reliability, the 20-22 ensures that all your scientific needs are met. Backed by over 20 years of development with a no compromise approach to its engineering integrity, Sercon provides the ultimate isotope ratio mass spectrometer. This technology is available in both continuous flow 20-22 and dual inlet GEO 20-22 forms to be interfaced with our range of automated p…

Sercon

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Average Rating 4.3

|1Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Perfect results for tiny samples.



Average Rating 4.3

Application Area:

Analysis of soil's origins

It's nice to be part of this kind of isotope equipment, as with other complex machines, this equipment helps me analyze isotopes. The process to prepare the samples is the hardest part, but when you get used to it, the equipment helps you get the best results for your work.

Review Date: 26 Jul 2022 | Sercon

Combining superior analytical performance with class leading reliability, the 20-22 ensures that all your scientific needs are met.

Backed by over 20 years of development with a no compromise approach to its engineering integrity, Sercon provides the ultimate isotope ratio mass spectrometer. This technology is available in both continuous flow 20-22 and dual inlet GEO 20-22 forms to be interfaced with our range of automated preparation units and peripherals.

The 20-22 incorporates many high level design features. These include an all stainless steel and metal gasket construction flight tube for ultra-high vacuum purity to ensure minimal backgrounds and zero water contamination. True differential pumping for superior ion transfer through the flight tube from high sensitivity source to large dynamic range collectors. The benchtop design with Windows 7 based software ensures a user friendly interface for the most productive IRMS system available.


Features:

  • 120° extended geometry with an 11 cm radius magnetic sector giving an effective 21 cm radius dispersion and double direction focusing.
  • Truly universal Faraday triple collectors for simultaneous collection of adjacent masses in the range 28,29,30 - 64,65,66 with no adjustment of collectors or amplifiers.
  • The desired combination of the 4 collectors is selected through the software.
  • Optional extended geometry system to incorporate up to 12 collectors for custom applications.
  • Shorter path length than traditional extended geometry to decrease ion/molecule interactions and so ensure 100% transmission through the analyser and a sensitivity which is higher than any other commercial IRMS (<1000 molecules/ion for CO2).
  • Small analyser footprint and wide flat peak shape reduce the effect of temperature drift therefore removing the need for peak centring during analysis.
  • With a mass range covering 2 to 96 AMU it is suitable for the analysis of light stable isotopes in all the commonly measured gases.
