3View System

Gatan Inc.Model 3View2.XPAvailable: Worldwide

Automate sectioning and image capture of your 3D ultrastructure using serial block-face scanning electron microscopy.

Gatan Inc.

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

The 3View® system provides high resolution imaging of a wide variety of in situ samples in 3D and offers high throughput. The 32k x 24k image support and high performance stages allow fully automated high speed imaging of several types of samples.

Features:

  • Large format image support (32k x 24k) allows very large images to be collected, and decreases the amount of time wasted waiting for stage motion when imaging extremely large regions.
  • Serial block-face imaging reduces distortion and errors found when using focus ion beam imaging or traditional serial section imaging.
  • High performance back-scatter detector allows high-speed imaging at low kV without compromising image quality.
  • <50 nm X, Y stage repeatability allows multi-region imaging without losing data due to imprecise stage motion.
  • 15 nm Z section thickness without requiring multi-kV images to be unblurred.

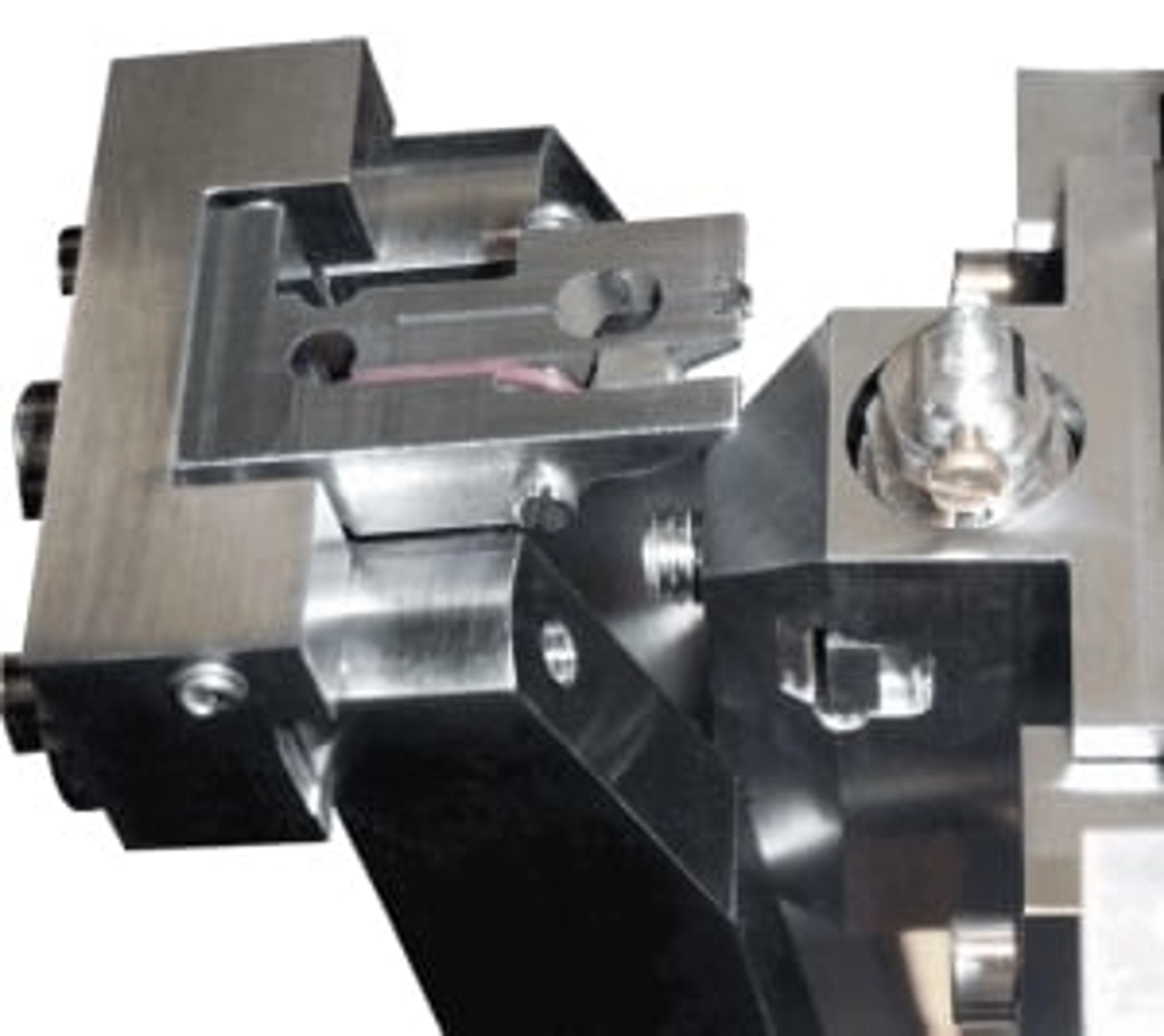

The 3View can use serial block face scanning electron microscopy, or SBFSEM, to obtain serial images. Between each image, a microtome inside the chamber equipped with a diamond knife is used to remove a layer of the sample less than 50 nm thick. This is a fully automated process, meaning that large volumes of data can be acquired rapidly whilst eliminating the risk of human error.
