5975T LTM Column Module
Agilent J&W LTM Column Module combines a high-quality fused silica capillary column with heating and temperature sensing components for a low thermal mass column assembly. The LTM Column module has a patented design that heats and cools the column very efficiently for significantly shorter analytical cycle times compared to conventional air-bath GC oven techniques, while simultaneously using less power.
Receive your quote directly from the manufacturer.
Agilent J&W LTM Column Module combines a high-quality fused silica capillary column with heating and temperature sensing components for a low thermal mass column assembly. The LTM Column module has a patented design that heats and cools the column very efficiently for significantly shorter analytical cycle times compared to conventional air-bath GC oven techniques, while simultaneously using less power. Agilent offers LTM technology for our popular 6890 & 7890 series GC and 5975T transportable GCMS system.
Features:
- Suitable for majority of Agilent J&W Capillary GC columns (30 m maximum length)
- Rapid temperature programming rates of up to 1800°C/min achievable
- Fast cooling times – less than one minute for some configurations
- Excellent retention time repeatability and excellent separation performance, comparable to conventional GC
- Ability to run up to four column modules simultaneously, using different temperature programs
- Works with 7890/6890 GC injectors and detectors for little change to your existing methods
- Compatible with Agilent Capillary Flow Technology, for multi-dimensional GC
Specifications:

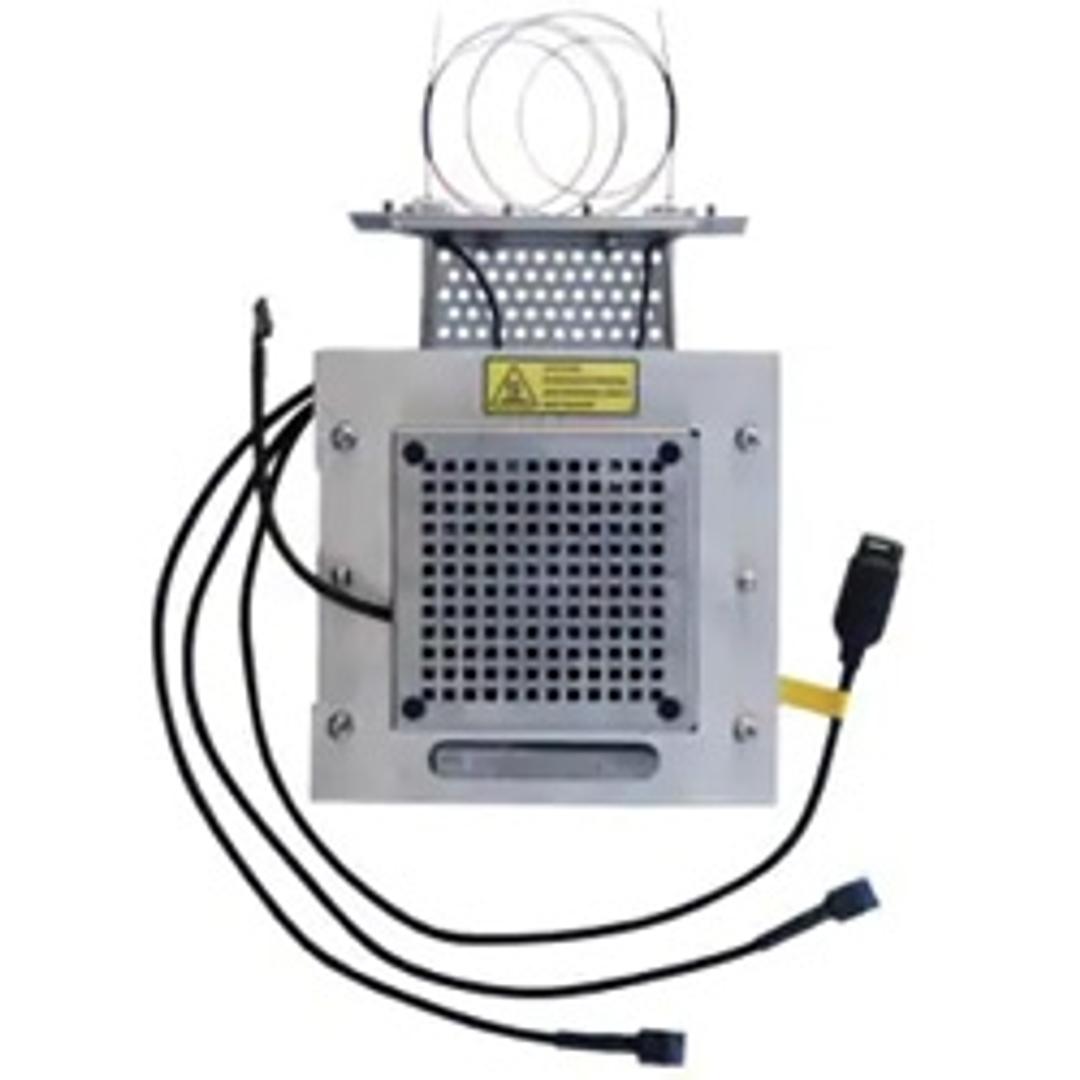

Column modules include 2 LTM heated transfer lines, transferline base assembly, 3” LTM column toroid assembly, 2 ultimate unions, cooling fan assembly and sheetmetal enclosure. Entire assembly is leak tested and ready for installation into you Agilent 5975T instrument.
