AMSY-6 System

Vallen Systeme GmbHAvailable: Worldwide

Vallen AMSY-6 is our fully digital multi-channel AE measurement system.

Vallen Systeme GmbH

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Average Rating 4.6

|3Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Great results can't live without it



Average Rating 4.7

Application Area:

Analyize metabolites in tissue samples

High quality, easy to use and after care

Review Date: 24 Jul 2022 | Vallen Systeme GmbH

Amazing instruments for mechanical tests.



Average Rating 4.0

Application Area:

Nanostructure stress tests

Very useful and sensitive to initial stages of damage.

Review Date: 26 Oct 2020 | Vallen Systeme GmbH

AE tests detect and locate active defects in materials before the critical stage!



Average Rating 5.0

Application Area:

Structural health monitoring and fracture detection at initial stage in metals, concrete and composi

AE AMSY-6 provides a very sensitive, volumetric and real time measurement technique that interferes only marginally with the specimen and is able to detect damage processes at the very onset. In most cases AE measurement results are used to improve design of materials, i.e. increase their strength. But the application of AE is not limited to improving engineering materials. AE is also used to investigate the drying process of wood, water transport in trees, fatigue fracture of bones, degradation of implant bone tissue interface, etc. AE measurements through AMSY 6 can be used in a wide range of applications to gain knowledge and deeper understanding of material behavior under load.

Review Date: 21 Mar 2020 | Vallen Systeme GmbH

The AMSY-6 provides 4 types of measurement data:

  • Hit data: data that is generated when the AE signal exceeds the threshold
  • Status data: data that is generated in regular time intervals
  • Parametric data: data of external parametric sensors which are measured at regular time intervals. Parametric data is stored with every hit and at user-specified time intervals.
  • Waveform data: sampled AE sensor signal

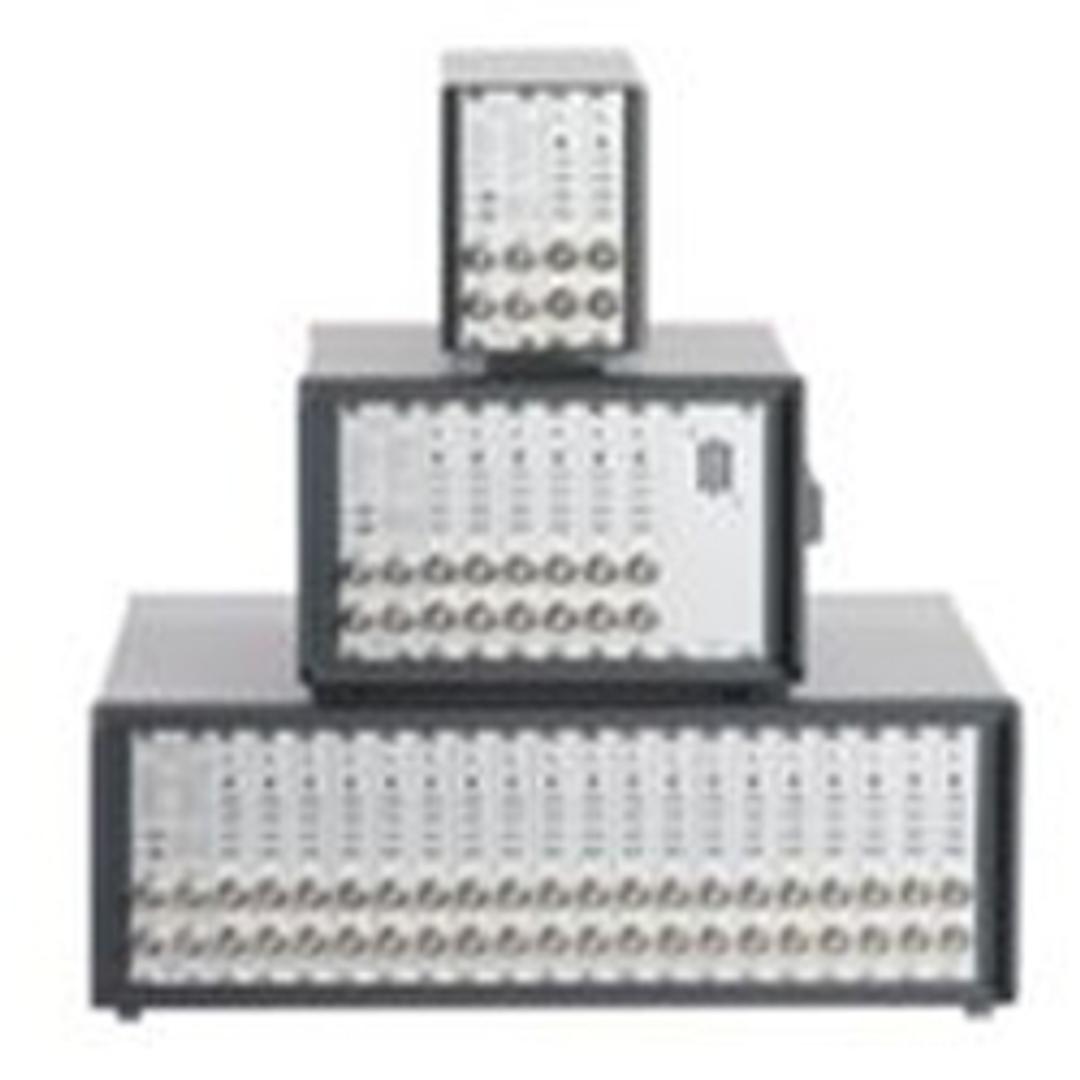

The AMSY-6 is available in four rugged metal chassis models which accommodates up to 4, 12, 38 or 42 channels, respectively. The AE system is controlled by an external PC that can easily be disconnected, e.g., for offline analysis in the hotel room. Desktop PCs, laptops or industrial PCs can be used as well. The chassis feature:

  • Connectivity: high speed USB3.0 interface for easy connection with any PC
  • Investment protection: compatible with ASIP-2
  • Correlation with AE: 4 (optional 8) parametric inputs for measuring, pressure, strain, displacement, etc.
  • For any material: test pulse generator is programmable up to 400 V to overcome strong wave attenuation
  • Audio warning: an audio unit which makes incoming AE signals audible
  • Real time indicators: LEDs for displaying the most important system status information
  • Fingertip fast response: switches for manually disabling data recording
  • Worldwide usage: power supply 100-240 V AC, 50-60 Hz, or 24 V DC
  • Ease of stack ability: up to eight chassis can be connected into one large system with up to 254 channels
  • Rack mountable versions also available
