Apex Dry Air
Get ultra-dry air whenever you need it
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The DryAir range uses regenerative PSA technology to remove water vapour from compressed air. Wet air is directed into one of the two desiccant chambers, where nearly all of the water vapour is removed. A small portion of the laboratory air dryers outlet gas is redirected back through the off-line desiccant chamber, purging it of the accumulated moisture. The drying cycle alternates between the two chambers continuously. The unit is available in a custom enclosure with filtration and buffer tank or as an OEM module for integration into 3rd party equipment.
An Apex Laboratory Air Dryer is a useful attachment for any laboratory's external source of air, removing moisture and ensuring the delivery of dry air. Moisture content in the air can contaminate lab instrumentation, impacting on results and in some cases damaging the instrument itself. Compact in size, wall-mountable and light, our series of DryAirs requires little space and with few moving parts mean minimal maintenance is required.
How it works...
Air from an external source enters the generator via the inlet filters. Air then enters the first scrubber tower via a solenoid valve. After passing through the scrubber tower the now dry and CO2 free air exits the system via an outlet filter and regulator. A portion of the outlet air is diverted into the second scrubber tower to purge it ready for use. At regular intervals the active tower switches allowing each tower to be purged in turn.
Features and Benefits:
- Provides a constant supply of clean, dry air: Get ultra-dry air whenever you need it. You’re not reliant on bottled air, so you save time and money.
- Pressure swing adsorption technology: Ensures the highest performance, reliability and efficiency.

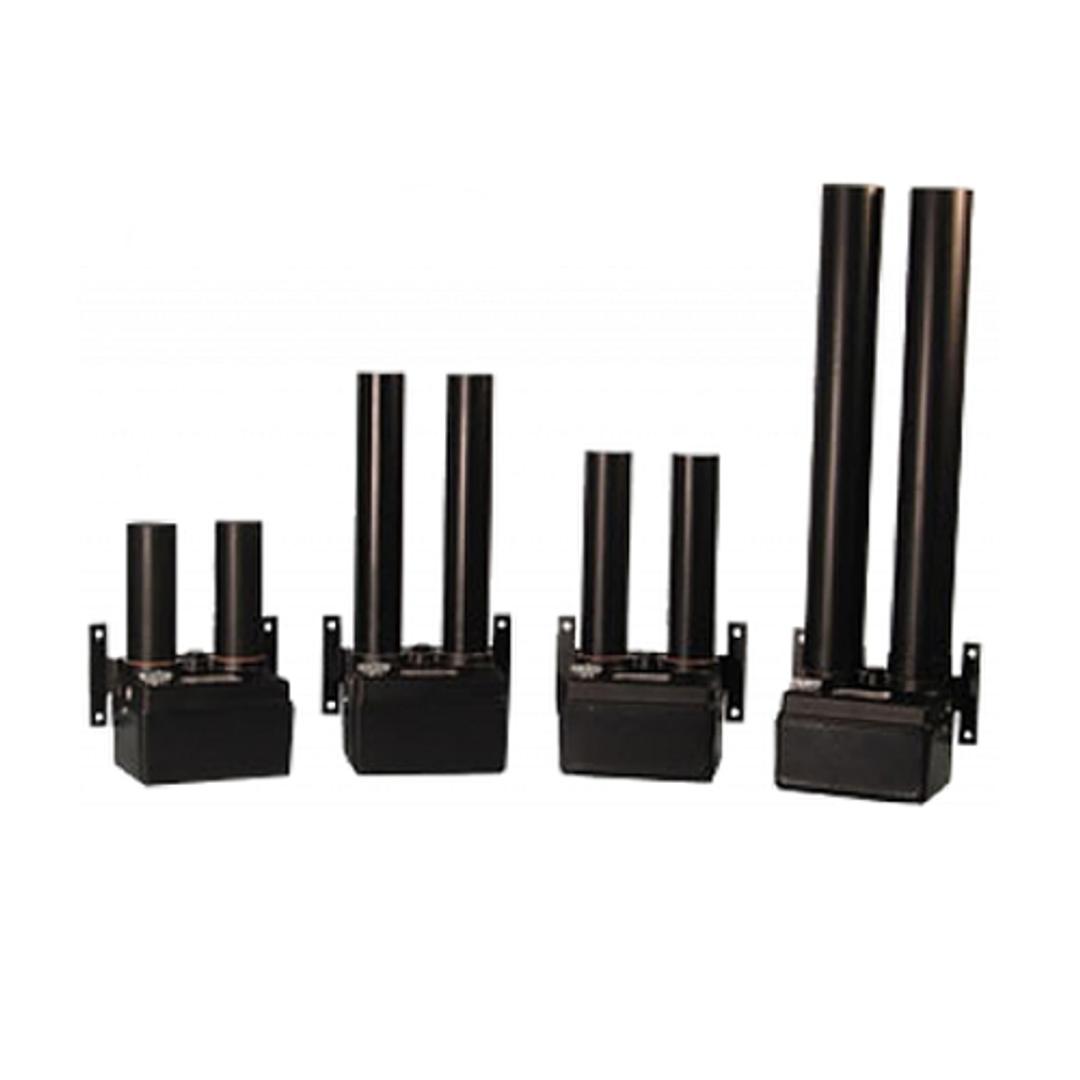

- Three models available: Choose the best flow rate, output pressure and size to meet your requirements.
- Wall or stand-mounted: Position the generator in the best location for your employees.
- Easy to install and maintain: Simple operation and easy maintenance allow you to use an air dryer in any laboratory or industrial setting.
- One-year warranty and ongoing technical support: Your dry air generator works reliably and efficiently for many years, providing a great return on investment.
Apex Mini Air Dryer
The mini Air Dryer is the smallest dryer in our range, offering flow rates of up to 50 litres/min of dry air containing <1 ppm CO2 concentrations. Like most of the products we offer there is the ability to have the machine build to suit your needs, the operating pressure of the unit can be set between 3.5 bar (50 psi) and 8.2 bar (120 psi) and the output dew point can be decreased to -73°C to give you the exacting gas you require.
Apex Midi Air Dryer
The midi Air Dryer is the Midpoint of our range of fryers, offering flow rates of up to 379 litres/min of dry air containing <1 ppm CO2 concentrations. Like most of the products we offer there is the ability to have the machine build to suit your needs, the operating pressure of the unit can be set between 3.5 bar (50 psi) and 10 bar (150 psi) and the output dew point can be decreased to -73°C to give you the exacting gas you require.
The midi dryer series takes the apex customisation to another level. In this series, you can get dry air with flow rates between 56 & 473 l/min. Using the lastest in PSA technology allows for output dew points as low as -70°C and <1 ppm CO2 concentrations. With easy installation and a simple maintenance program, the Apex Air Dryer is perfect for any laboratory.
Apex Maxi Air Dryer
The maxi dryer air is the largest of our laboratory dry air units. The generators in this series are aimed at larger facilities with outputs reaching 103 m3/h with a purity of <1 ppm of CO2.
A dry air generator provides a constant supply of ultra-dry clean air. Three models are available, and each model can be manufactured to meet your requirements. Each generator uses pressure swing adsorption technology to provide the highest performance, efficiency and reliability. Ideal for laboratories and industrial applications.
