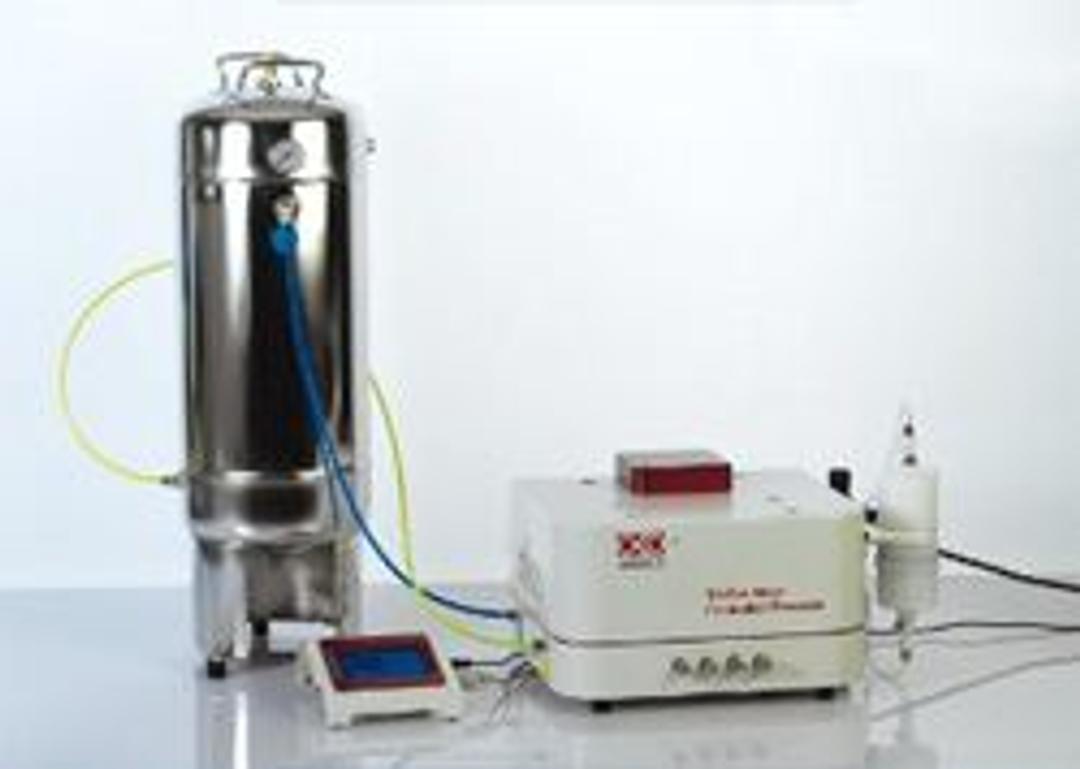

Bold Line CO2 - O2 Unit CP - Gas Controller

Bold Line CO2 - O2 Unit CP Controller. This Gas Controller supplies desired Air-CO2 or N2-O2-CO2 mixture at controlled pressure. Bold Line CO2 - O2 Unit CP Controller Features: It replaces pre-mixed tanks One unit supplies up to 10 microscope incubators Ideal for imaging facilities Mixes two or three gas, according to operator's need Bold Line CO2 - O2 Unit CP Controller Technical Specifications: Operation mode…

Okolab

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

Bold Line CO2 - O2 Unit CP Controller. This Gas Controller supplies desired Air-CO2 or N2-O2-CO2 mixture at controlled pressure.

Bold Line CO2 - O2 Unit CP Controller Features:

  • It replaces pre-mixed tanks
  • One unit supplies up to 10 microscope incubators
  • Ideal for imaging facilities
  • Mixes two or three gas, according to operator's need

Bold Line CO2 - O2 Unit CP Controller Technical Specifications:

  • Operation mode: Adds CO2 and Air to N2
  • Concentration Range: CO2: 4-8%; O2 3-7%
  • CO2 Accuracy: ±0.1% after sensor calibration
  • O2 Accuracy: ±0.1% after sensor calibration
  • Set point resolution: 0.1%
  • CO2 Repeatability: ±0.1%
  • O2 Repeatability: ±0.1%
  • Total Flow rate, Nl/min: 0.1-1.0 Nl/min (at 3.0 barg)
  • Vessel Pressure: 3.0 barg
  • Output Pressure: 0-3.0 barg
  • Input Pressure: 4-4.5 barg
  • CO2 Consumption Vessel 4.5L / Vessel 20L: 0.024 / 0.036 Nl/min at 6% CO2 and 0.3 Nl/min output flow rate
  • N2 Consumption Vessel 4.5L / Vessel 20L: 0.281 / 0.421 Nl/min at 5% O2 and 0.3 Nl/min output flow rate
  • Air Consumption Vessel 4.5L / Vessel 20L: 0.095 / 0.143 Nl/min at 5% O2 and 0.3 Nl/min output flow rate
  • CO2 Sensor: Non Dispersive InfraRed (NDIR) dual wave length detector
  • O2 Sensor: Zirconium oxide Sensors Life 10 years
  • User interface: OKO-Touch
  • Web Operation Through Smart Box
  • Sensor filter: PTFE membrane with 0.2 μm pores
  • Output gas filter: VOC and HEPA filter
