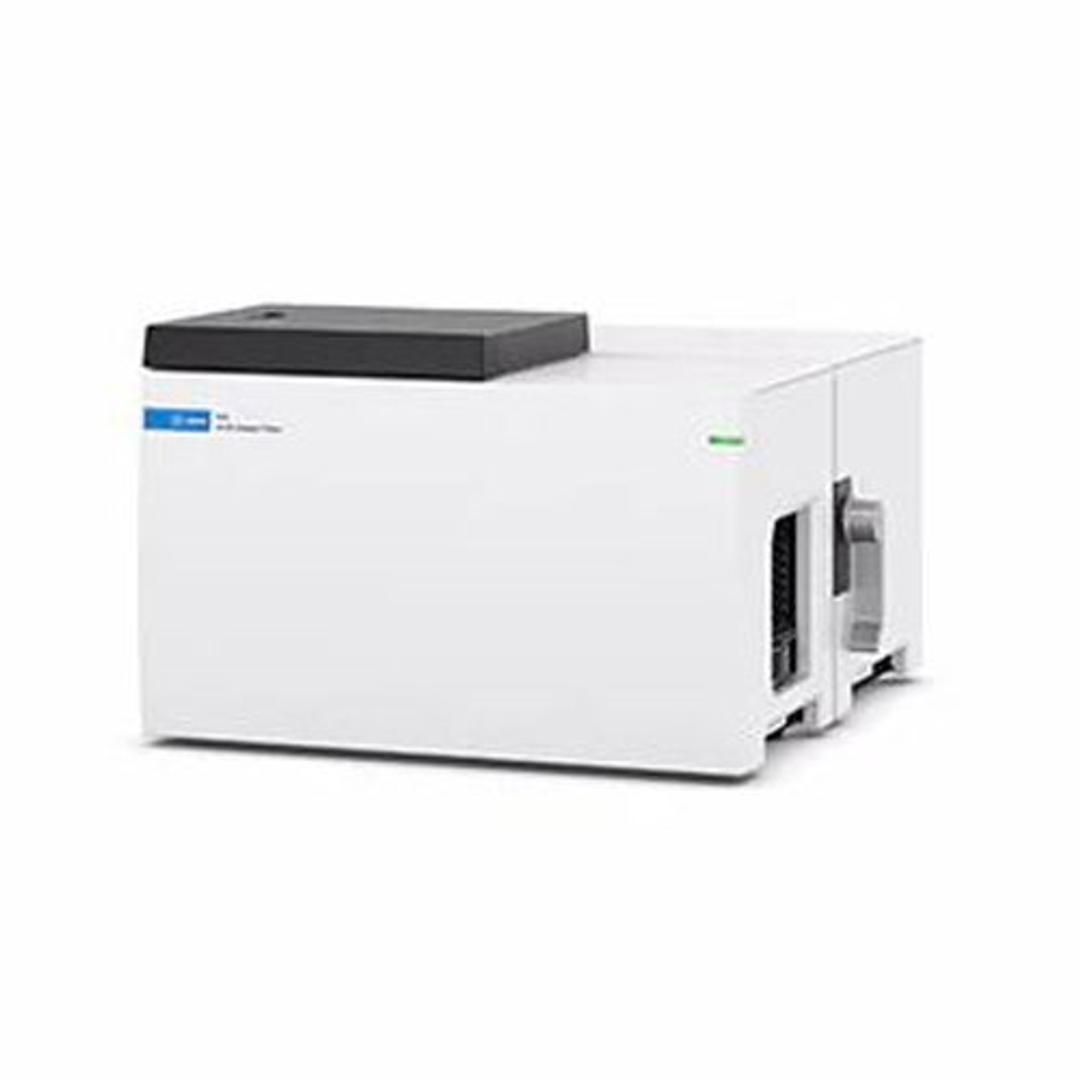

Cary 3500 Compact UV-Vis Spectrophotometer

The Cary 3500 Compact UV-Vis is a double beam spectrophotometer featuring new and unique measurement capabilities that can be deployed in regulated environments. The system performs ambient and temperature-controlled experiments with air-cooled Peltier temperature control, and it accurately analyzes low volume samples—providing in-depth analysis by collecting up to 250 data points per second. The xenon flash lamp—complete with 10-year replacement warranty (for Cary 3500 instruments purchased from Agilent or participating partners)—eliminates the daily warm-up time and drastically reduces the frequency and cost of lamp replacement.

The Cary 3500 comes complete with Cary UV Workstation software—a next-generation analytical platform with streamlined methods for wavelength reads, scanning, concentration, kinetics, and temperature measurements. When configured with Agilent OpenLab data management software, Cary UV Workstation data is managed, protected, and stored in a local or central secure database.

Features:

• Perform accurate and quick temperature-controlled experiments from 0 to 110 °C using a unique and fully integrated air-cooled Peltier system.
• Control experimental temperature from inside the cuvette using highly accurate, solid-state digital Cary temperature probes with thermal ramp rate up to 40 °C/min.
• Ensure accurate analysis of small-volume measurements with a highly-collimated and uniform beam of less than 1.5 mm width, coupled with permanent optical alignment of the stationary cell holders.
• Reduce data processing time and calculation errors with more than 50 built-in and customized calculations that can be saved and applied automatically to any method used routinely.
• Achieve research grade photometric performance, stability, and range with a double beam spectrophotometer featuring leading optical technologies.
• Be up and running in minutes by following the intuitive video tutorials in Cary UV Workstation’s Help and Learning Center.
• Meet data integrity standards—provides the technical controls to securely acquire, process, report and store data in laboratories that must follow the compliance guidelines of FDA 21 CFR Part 11, EU Annex 11, GAMP5, as well as ISO/IEC 17025 and EPA’s 40 CFR Part 160.
• Store and manage your Cary 3500 Compact UV-Vis spectrophotometer data in a local secured storage on the workstation PC, or in a central storage location.
• Deploy the OpenLab software suite and get optional secure database storage for electronic records, complete administration for users and access privileges, software licensing, and security settings—e-signature workflow and enhanced audit trail review capabilities.

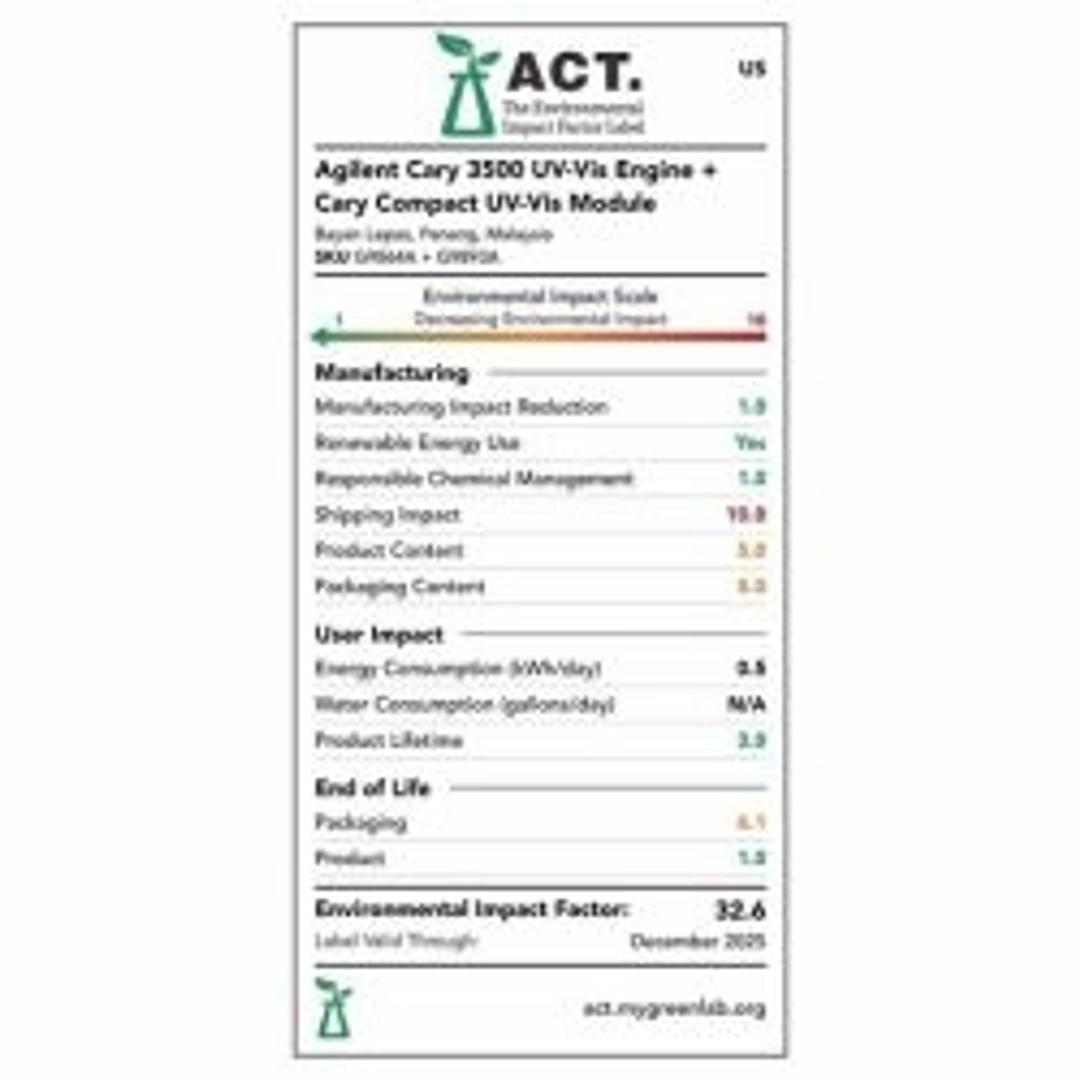

This solution received My Green Lab’s ACT (Accountability, Consistency, Transparency) label after independent audit for its environmental impact throughout the product lifecycle.
