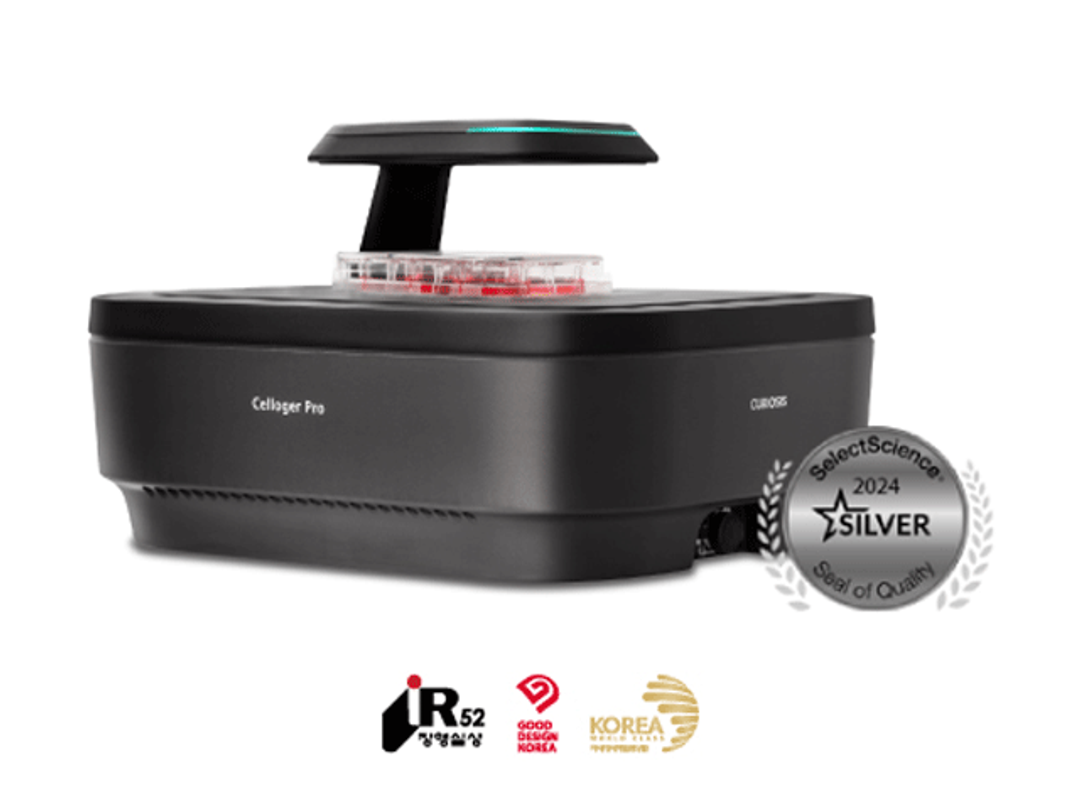

Celloger® Pro, Automated Live Cell Imaging System
With its streamlined workflow and versatile capabilities, Celloger® Pro is a valuable tool for researchers seeking efficient, accurate, and cost-effective cellular analysis.
Cancer cell study
Using this system, the fluorescence (GFP) is clearly visible in the images without the need for post-processing. It offers the convenience of setting the center position for all wells at once.
Review Date: 21 Oct 2024 | CURIOSIS
Immunity
The compact size of the product and the accurate fluorescence wavelength range made it ideal for observing PI uptake. And, it did not generate heat inside the incubator, which had no impact on temperature stability.
Review Date: 21 Oct 2024 | CURIOSIS
Physiology
While the initial software setup takes some time to prepare before starting the experiment, once the settings are configured, the experiment runs autonomously throughout the duration, having results without requiring further attention.
Review Date: 21 Oct 2024 | CURIOSIS
Spheroid assay
Simple and user-friendly operation, with the ability to capture images from multiple wells within a single well plate.
Review Date: 21 Oct 2024 | CURIOSIS
Oncology
The ability to perform real-time analysis is a valuable feature, though there are some points for improvement in terms of quantification and settings. The system effectively displays changes at each cycle (time point) during wound healing, enhances the monitoring process and providing valuable insights.
Review Date: 21 Oct 2024 | CURIOSIS
Thyroid ophthalmopathy
I am highly satisfied with the ability to observe cells directly in the incubator. While there is some room for improvement in focus and fluorescence observation quality, the overall experience has been effective and productive.
Review Date: 21 Oct 2024 | CURIOSIS
Cancer biology
It is very convenient to observe cell changes over time.
Review Date: 21 Oct 2024 | CURIOSIS
Neuron
The ability to designate multiple points for observation simultaneously is very convenient compared to other equipment, and the device's small size and ease of use are also significant benefits.
Review Date: 21 Jun 2024 | CURIOSIS
Organ-on-a-chip
The ability to swap lenses and capture dual- fluorescence simultaneously is a significant plus. Improved scanning app usability enhances its appeal further. This equipment proves highly valuable for our experiments.
Review Date: 21 Jun 2024 | CURIOSIS
Organ-on-a-chip
Enhanced speed and simultaneous capture of two fluorescent wavelengths enable efficient imaging of multiple well-plates or T-flasks.
Review Date: 21 Jun 2024 | CURIOSIS

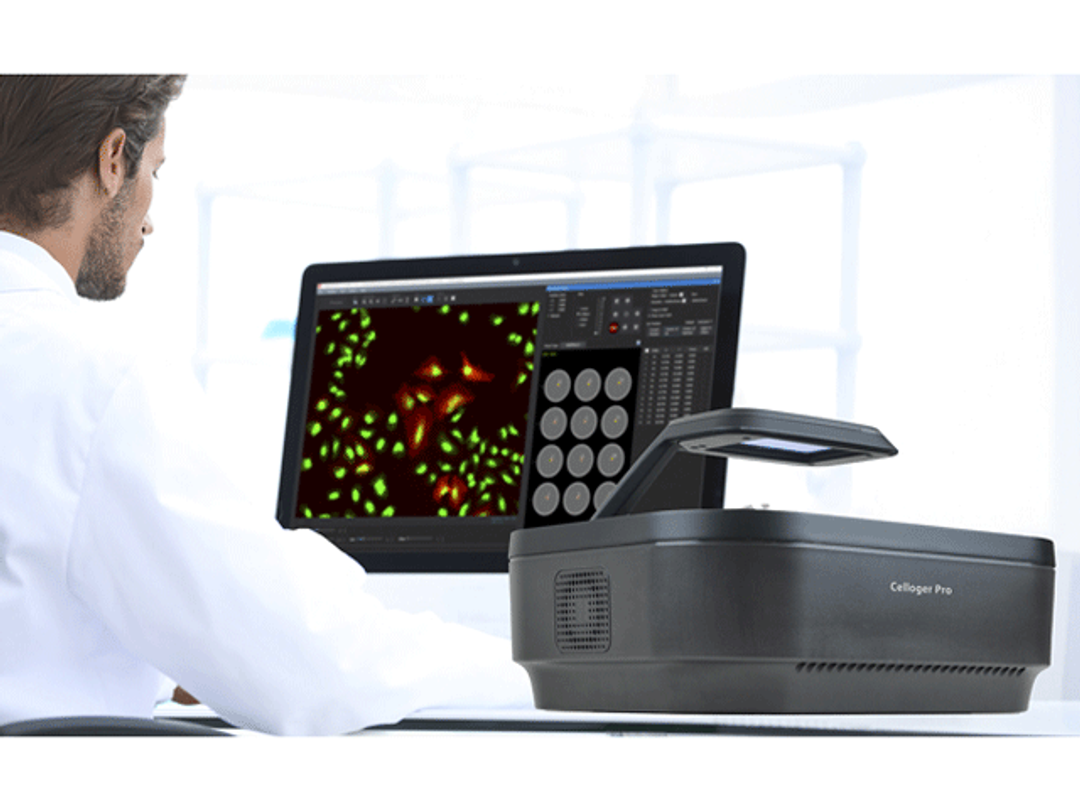

Celloger® Pro is an innovative live cell imaging system that redefines the research capabilities. With its exceptional image quality and unmatched convenience, it empowers researchers with the advanced features. By enabling real-time cell monitoring inside the incubator, it allows for seamless observation and tracking of cellular dynamics without disrupting the natural growth environment. The system's dual fluorescence and bright-field microscopy enable simultaneous visualization of multiple markers, while the multi-point time-lapse imaging captures dynamic cellular events across different locations. Celloger Pro’s user-friendly interface and intuitive tools make image acquisition and analysis a seamless experience. Additionally, its ability to capture high-resolution images and to effortlessly create videos, eliminates the labor-intensive tasks associated with live cell imaging processes.
Key features

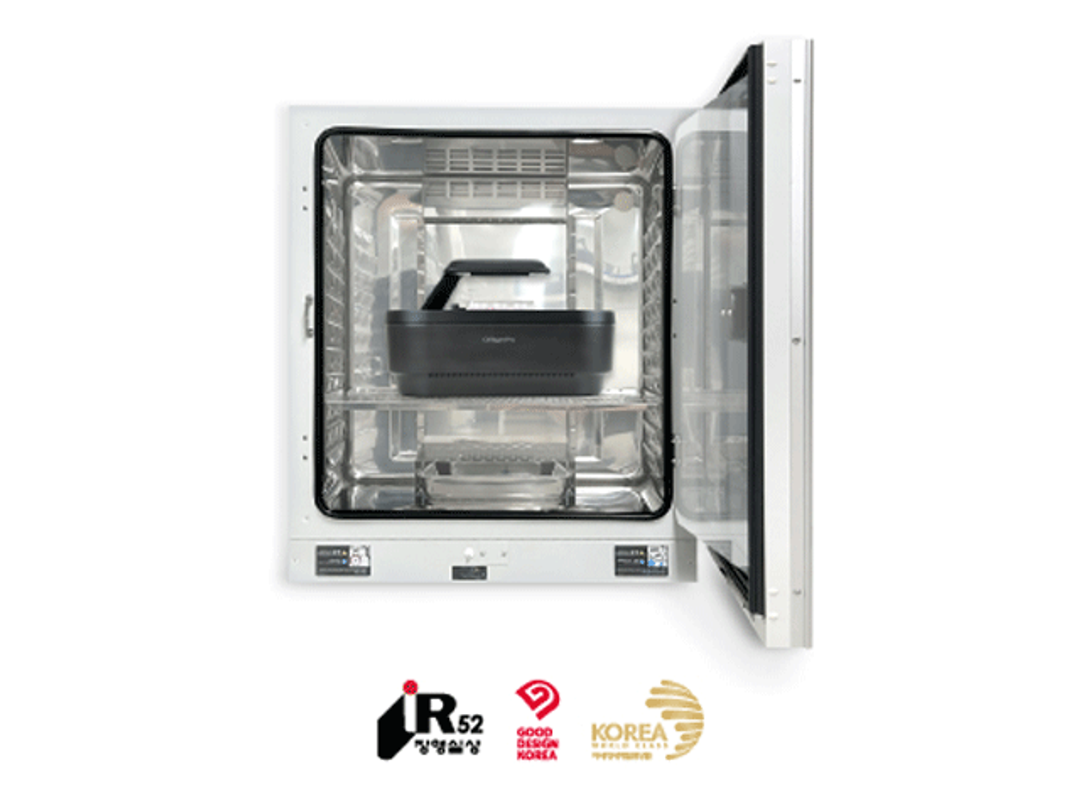

- Real-time cell monitoring inside incubator
- Dual fluorescence microscopy
- Multi-point time-lapse imaging

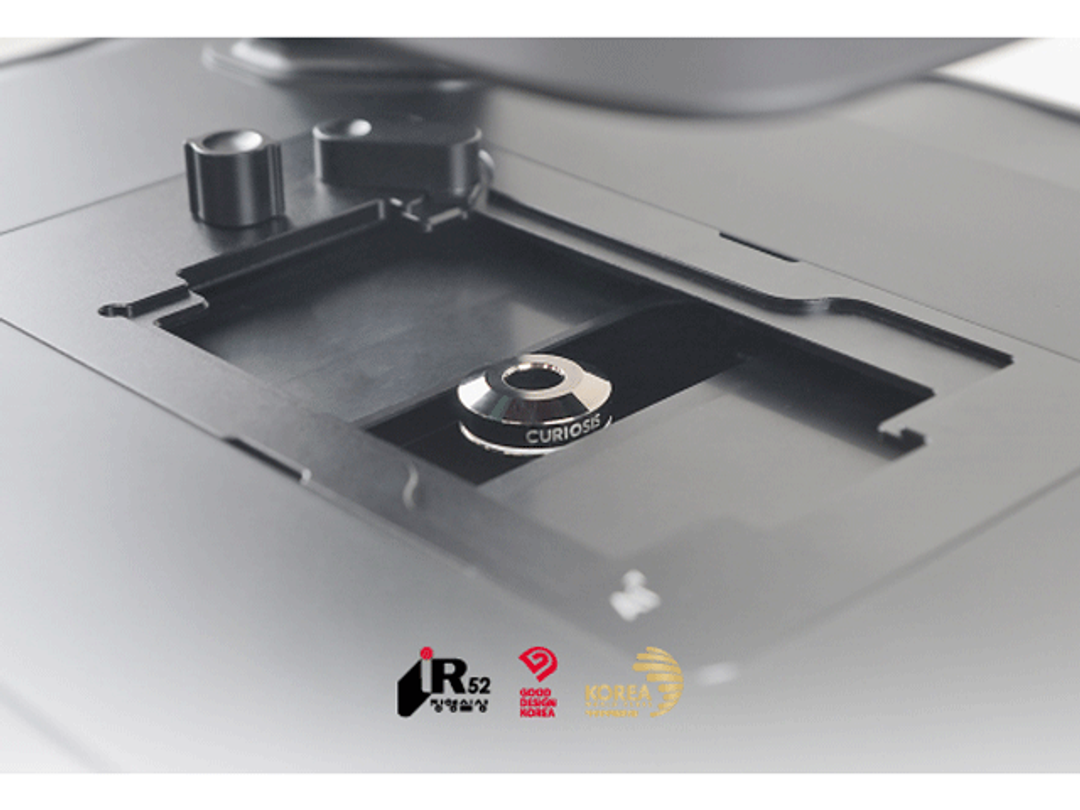

- User interchangeable lens
- Easy-to-use user interface and tools
Applications
- Spheroid assay
- Neurite outgrowth
- Cytotoxicity
- Scratch wound assay
Specification
- Imaging modes: Brightfield, Dual fluorescence (Green & Red)
- Objective lens: 2X, 4X, 10X (User-interchangeable)
- Fluorescence: Green - Excitation (470/40x), Emission (540/50m) / Red - Excitation (562/40x), Emission (641/75m)
- Stage: Fully motorized XYZ (Fixed stage, camera moving type)
- Camera: High sensitivity 5.0 MP CMOS
- Imaging positions: Multiple
- Focus: Autofocus, Manual focus
- Dimensions: 250 x 338 x 412 mm
- Weight: 9kg
