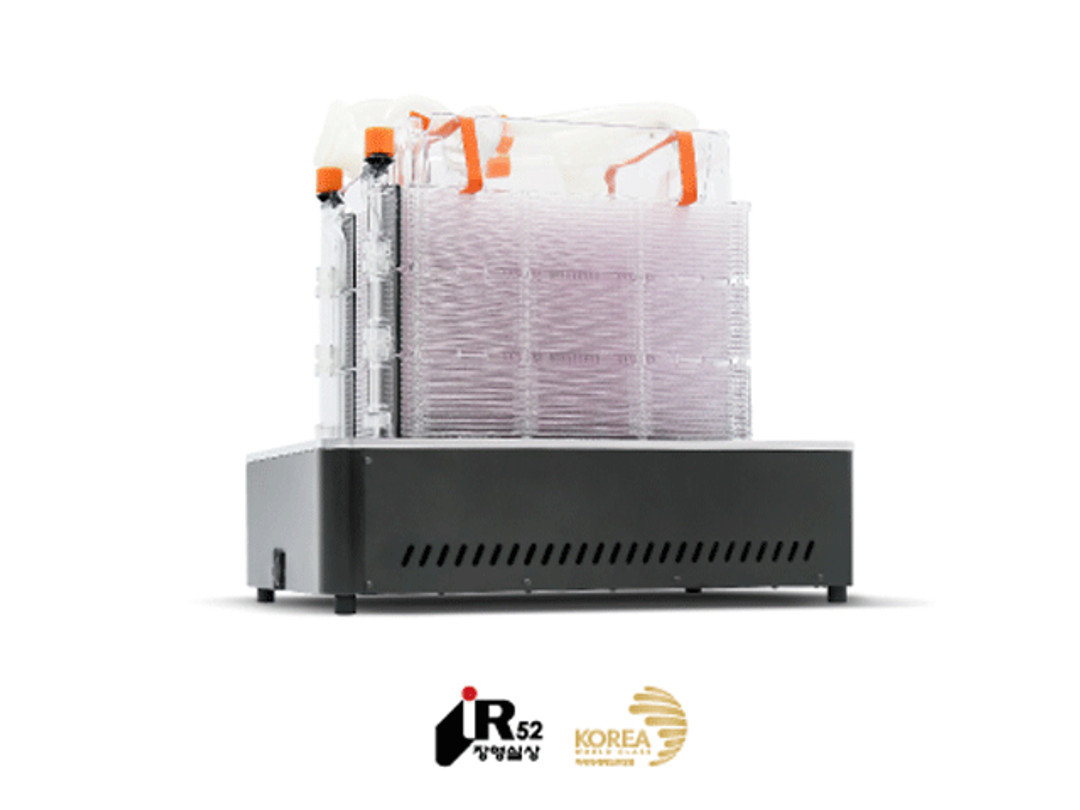

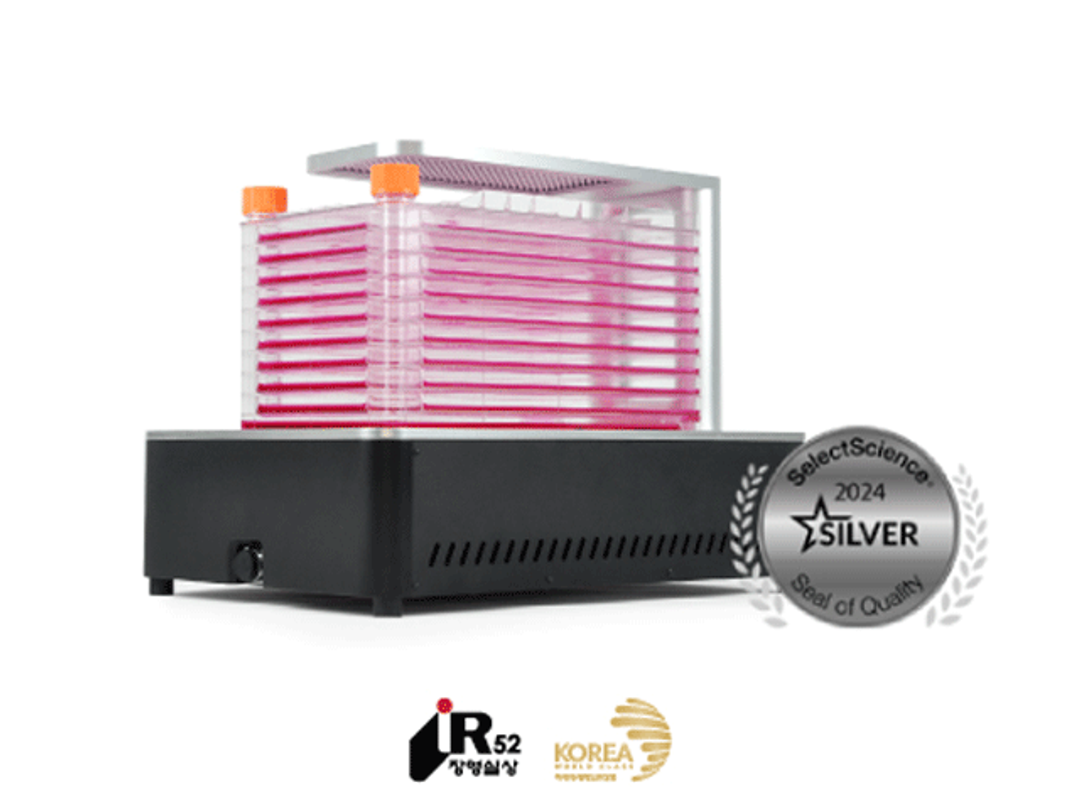

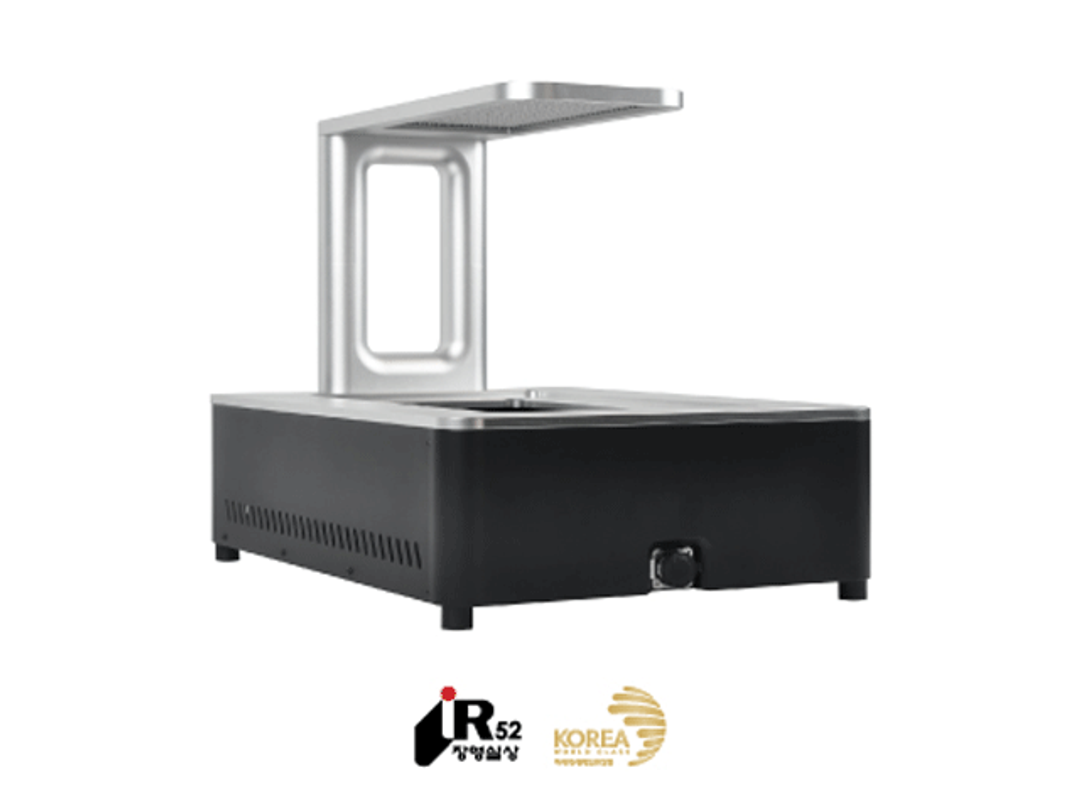

Celloger® Stack, Automated Multi-layer Vessel Monitoring System
Celloger® Stack is an automated multi-layer vessel monitoring system that enables real-time imaging of cell samples while they are cultured in an incubator.
Receive your quote directly from the manufacturer.
Highly effective in capturing MSC proliferation during the 6-day culture in the 10-layer Cellstack
MSC therapy process development
During the 6-day culture of MSCs in a 10-layer Cellstack, the proliferation of cells at specified locations within the vessel was successfully recorded through timelapse imaging. The ability to utilize this setup directly within the incubator proved to be highly convenient.
Review Date: 21 Oct 2024 | CURIOSIS
Celloger® Stack can detect cells growing in a multi-layer chamber and identify the optimal time for cell harvest. With its motorized camera that can move in all directions, the system captures multiple points within the travel range which can be made into a time-lapse video with a simple click.
Key features
- Real-time live cell monitoring & multi-layer observation up to 10 layers (image acquired from the bottom layer)
- Multi-position time-lapse imaging & recording
- Enables cell quality check and shows confluency rate while culturing
- Improved reproducibility for mass cell culture and production
- No need to take the cell sample out of the incubator, eliminating contamination concerns
Specification
- Dimensions: 350 x 330 x 450 mm
- Weight: 15kg
- Objective Lens: 2X
- Imaging mode: Brightfield
- Imaging positions: Multiple
- Stage: Motorized XYZ (Camera moving)
- Camera: 5MP CMOS
- Field of view: 2.53 x 1.9 mm
- Vessel types: Multi-layer chamber up to 10 layers
