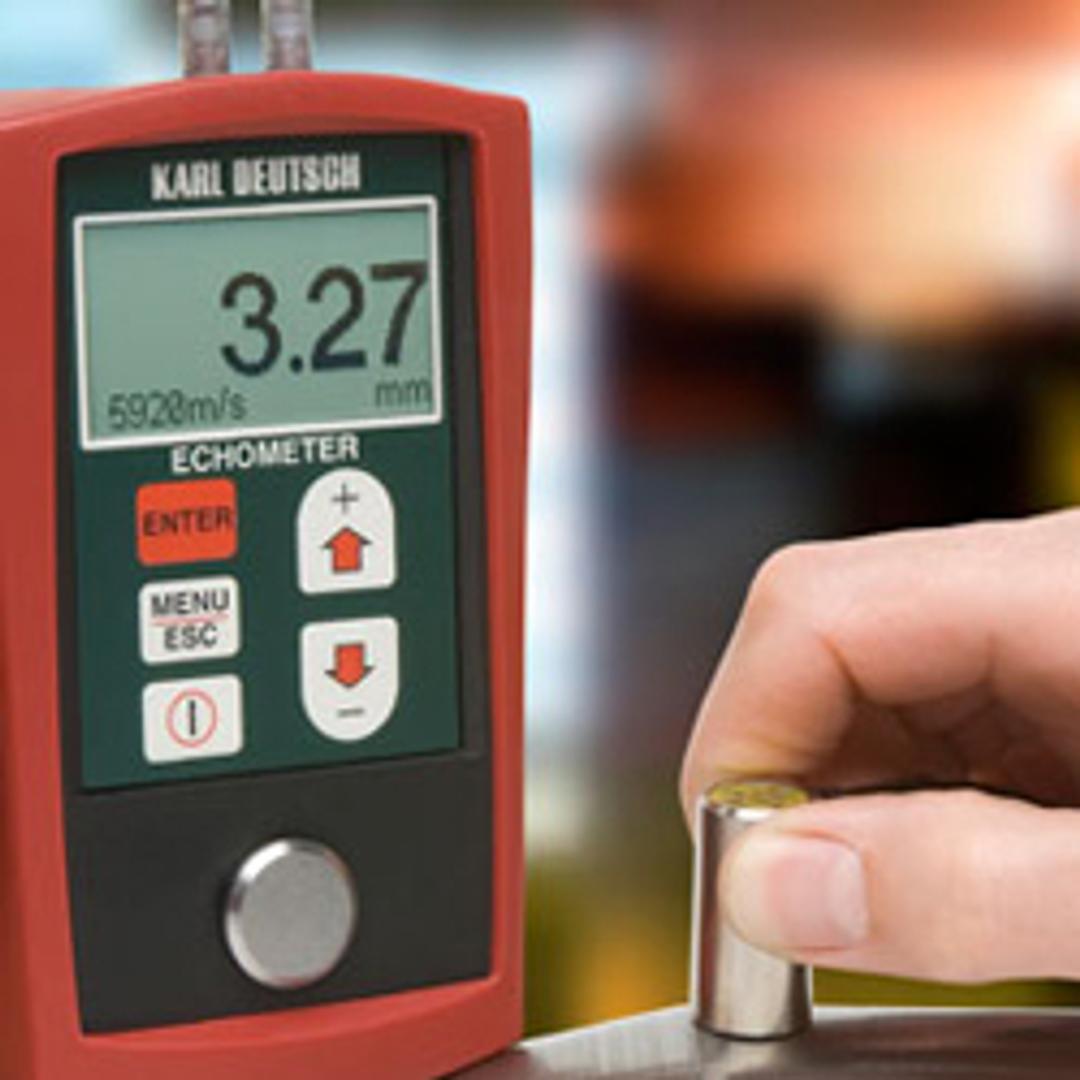

ECHOMETER 1075 Basic
ApplicationThe innovative dual-use instrument measures wall thickness and sound velocities and convinces due to state-of-the-art manufacturing technology, modern design and an attractive pricing.Thanks to its easy operation via a user-friendly plain text menu the ECHOMETER 1075 Basic is suitable for quality control on the shop floor as well as for measurement of containers or pipelines which are possibly corroded inside.The me…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Echometer
This is a very nice product and i have used it many times
Review Date: 24 Jul 2022 | KARL DEUTSCH
Application
The innovative dual-use instrument measures wall thickness and sound velocities and convinces due to state-of-the-art manufacturing technology, modern design and an attractive pricing.
Thanks to its easy operation via a user-friendly plain text menu the ECHOMETER 1075 Basic is suitable for quality control on the shop floor as well as for measurement of containers or pipelines which are possibly corroded inside.
The measuring range for the ECHOMETER 1075 Basic covers 0.7 to 400 mm wall thickness (depending on the probe).
For the measurement of the sound velocity, all materials between 100 to 20,000 m/s can be inspected.
Probes
The ECHOMETER 1075 Basic uses TR probes. In addition to the standard probe for the most common wall thickness values from 1.2 to 250 mm, a high resolution probe for thin-walled components from 0.7 to 25 mm and a low-frequency probe for wall thickness values up to 400 mm are available.
The instrument identifies the connected probe type automatically when it is placed on the specimen or on the reference block, which is inserted in the front cover of the housing. Differences in sensitivity and characteristics are compensated automatically.
