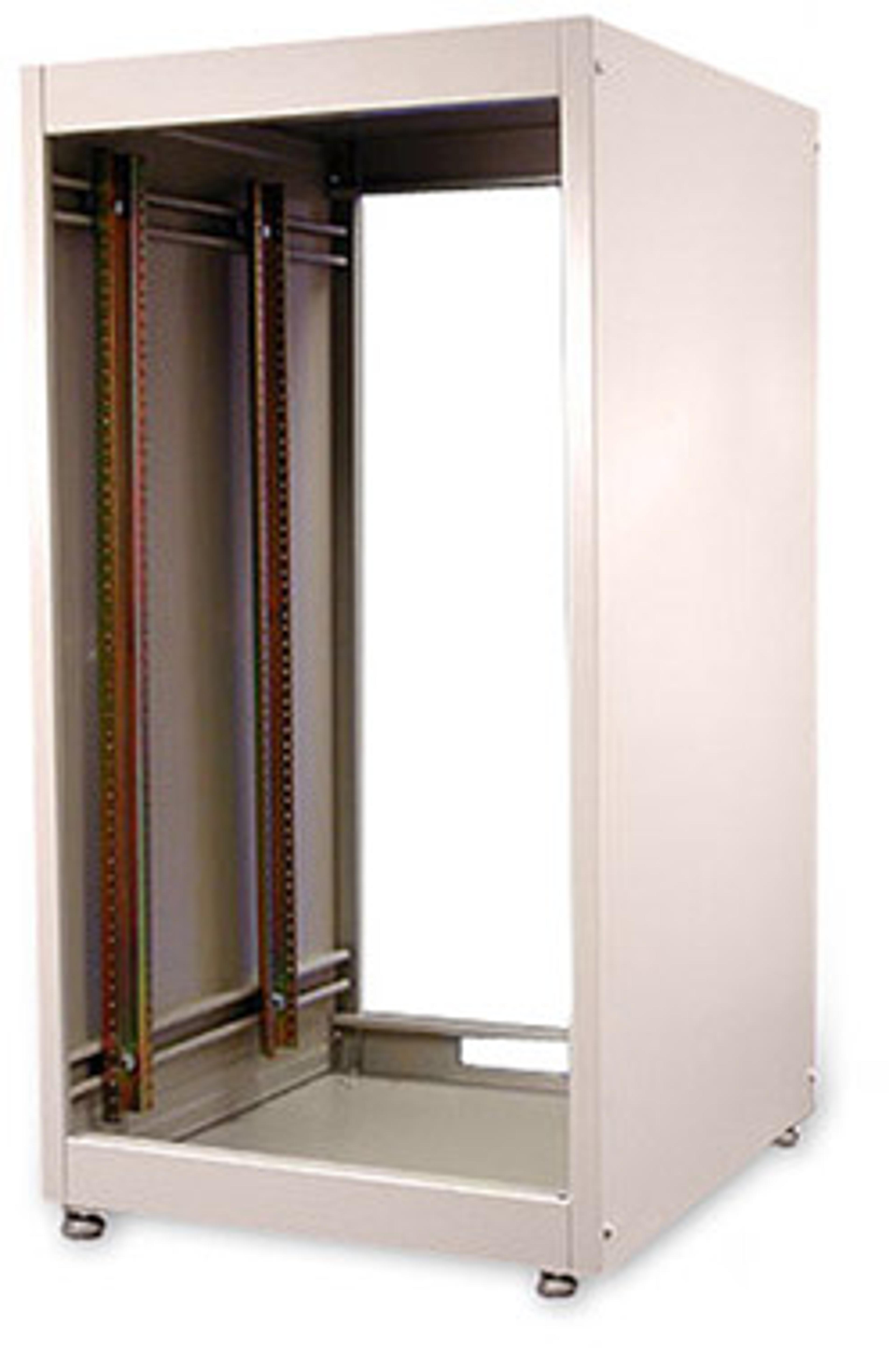

Equipment Rack 63

• Standard 19” panel width (21.34” overall)

• Usable depth of 16.5" without doors, 16" with doors (17.5" overall)

• Knockdown rack unit is shipped in a flat pack container for handling ease & protection (see below)

• Perfect for tight access areas or 1 person installations as unit is knocked down into 5 easy to handle parts (ie...2 sides, top, bottom and 4 panel rails)

• Complete with; 4 infinitely adjustable - combination rack mount rails, on E.I.A. universal spacing (5/8 - 5/8 - 1/2 inch) - drilled & tapped for 10-32 screws (see close up below) and 4 leveling feet

• Removable gland plate (over 10" long X 1.5" high opening) with knockouts on rear bottom of rack for easy cable access (see below)

• Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included)

• Heavy duty 16 gauge steel top, bottom and sides

• Rails are made of 10 gauge steel (zinc plated finish for grounding capabilities)

• Recommended maximum weight, 1,000 pounds

• Finished in rugged textured powder paint

• Stocked in Black
