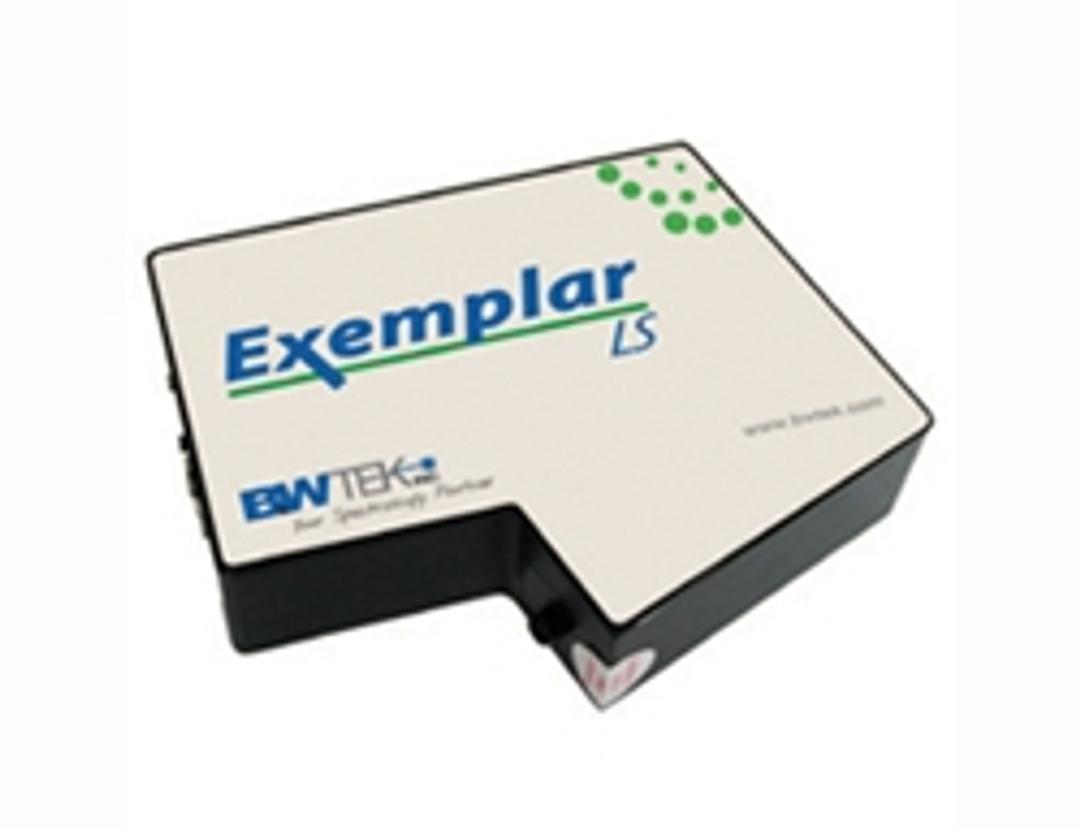

Exemplar LS ‒ Low Straylight Smart CCD Spectrometer

The Exemplar® LS is a smart CCD spectrometer optimized for low straylight by utilizing an unfolded Czerny-Turner spectrograph It features on board data processing, USB 3.0 communication, and temperature compensation. The Exemplar LS is also optimized for multi-channel operation, featuring ultra-low trigger delay and gate jitter. Additionally, the Exemplar LS features a 2048 element detector and built-in 16-bit digitizer with…

B&W Tek, Inc.

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

The Exemplar® LS is a smart CCD spectrometer optimized for low straylight by utilizing an unfolded Czerny-Turner spectrograph

It features on board data processing, USB 3.0 communication, and temperature compensation. The Exemplar LS is also optimized for multi-channel operation, featuring ultra-low trigger delay and gate jitter. Additionally, the Exemplar LS features a 2048 element detector and built-in 16-bit digitizer with greater than 2.0 MHz readout speed.

The Exemplar LS is available in two standard spectral configurations: 200nm - 400nm and 200nm – 850nm with resolutions of less than 0.4nm. Custom configurations are available for OEM applications.


Exemplar LS ‒ Low Straylight Smart CCD Spectrometer Features:

  • Smart on-board processing including averaging, smoothing, and dark compensation
  • SuperSpeed USB 3.0 transferring up to 900 spectra per second
  • Supports up to 32 devices with ultra-low trigger delay (14ns) & gate jitter (+/- 1ns)
  • Temperature Compensation for Ultra-low Thermal Drift
  • 1ms Minimum Integration Time
  • Low Straylight Spectrograph
  • < 0.4nm Spectral Resolution
  • >2.0 MHz Readout Speed
  • UV - Vis (200nm – 850nm)
