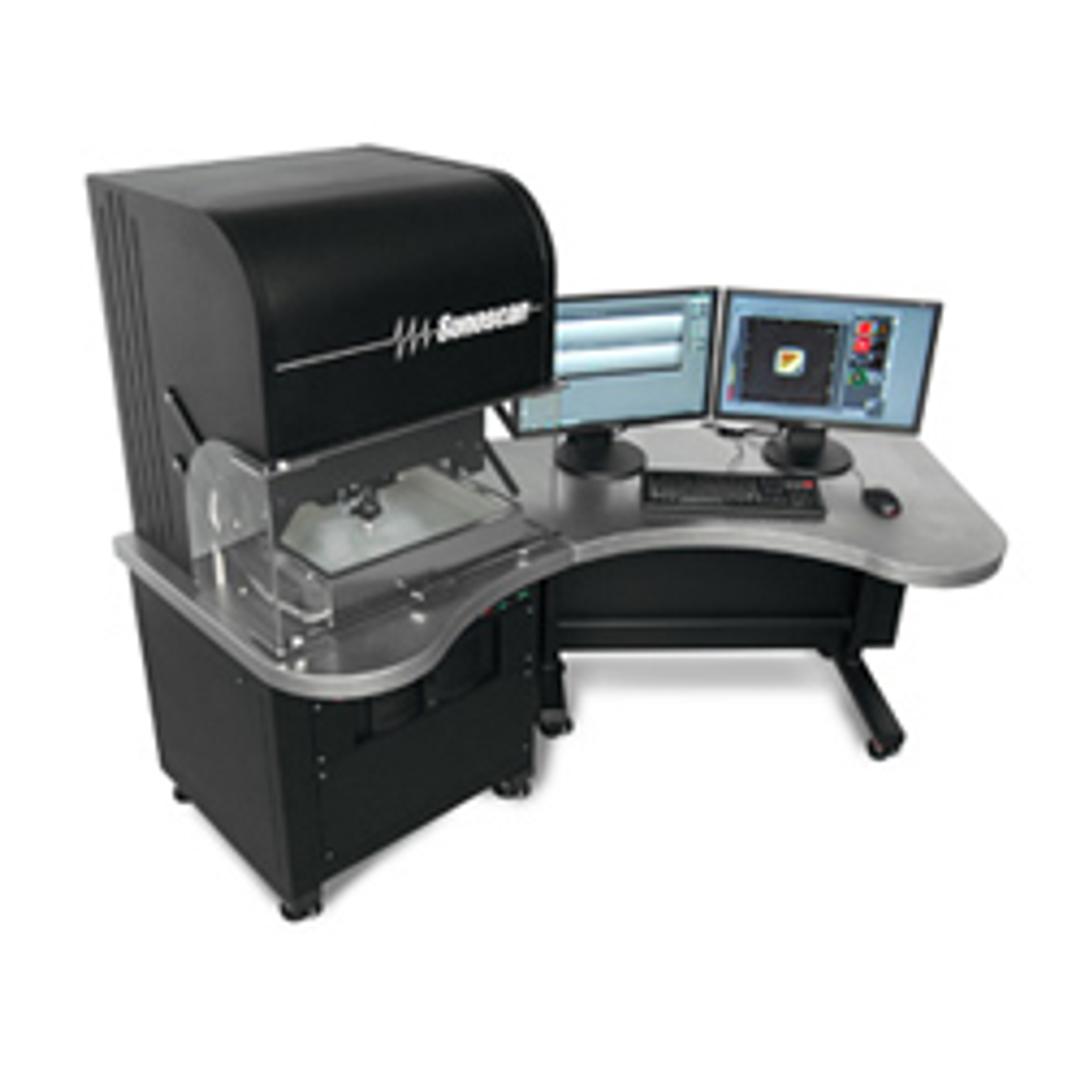

Gen6™ C-SAM®

The Gen6™ C-Mode Scanning Acoustic Microscope is the newest generation in Acoustic Microscopy Imaging (AMI) innovation. While taking the best from the Gen5™ (e.g. advanced features, aesthetics, and ergonomics), the Gen6 improves upon the rest and takes acoustic imaging to the next level.


The Gen6 delivers the broadest range of capabilities available. Whether your needs are for nondestructive failure analysis, process development, R&D, High-Rel qualification for a military application, or low/medium-volume screening, the Gen6 is the one C-SAM system that can meet all of your demands. Gen6 is perfect for a variety of applications, such as; Microelectronics, MEMS, SSL LEDs, Power Modules, Solar, High-Tech materials, etc.


Advanced Sonoscan capabilities such as PolyGate™, Virtual Rescanning Mode (VRM™), and available Frequency Domain Imaging (FDI™) add value and confidence. With its large, easy-access, illuminated scanning area, the Gen6 has the capability to efficiently scan everything from a single part, to a 300mm wafer, with its tower referenced scan and fixtures.


In addition to being packed with leading Sonoscan innovations, the Gen6 was carefully designed with the user in mind. Its ergonomic features make it comfortable and convenient to use. Its advanced applications Sonolytics™ software and new intuitive operator interface menus help maximize results, while saving operator time. Plus, its open access and illuminated tower referenced sample stage allow for easier loading and unloading of samples. The Gen6 is truly the new generation C-SAM, delivering a package of technology, ergonomics, and advanced Sonoscan-developed features that cannot be found anywhere else.
