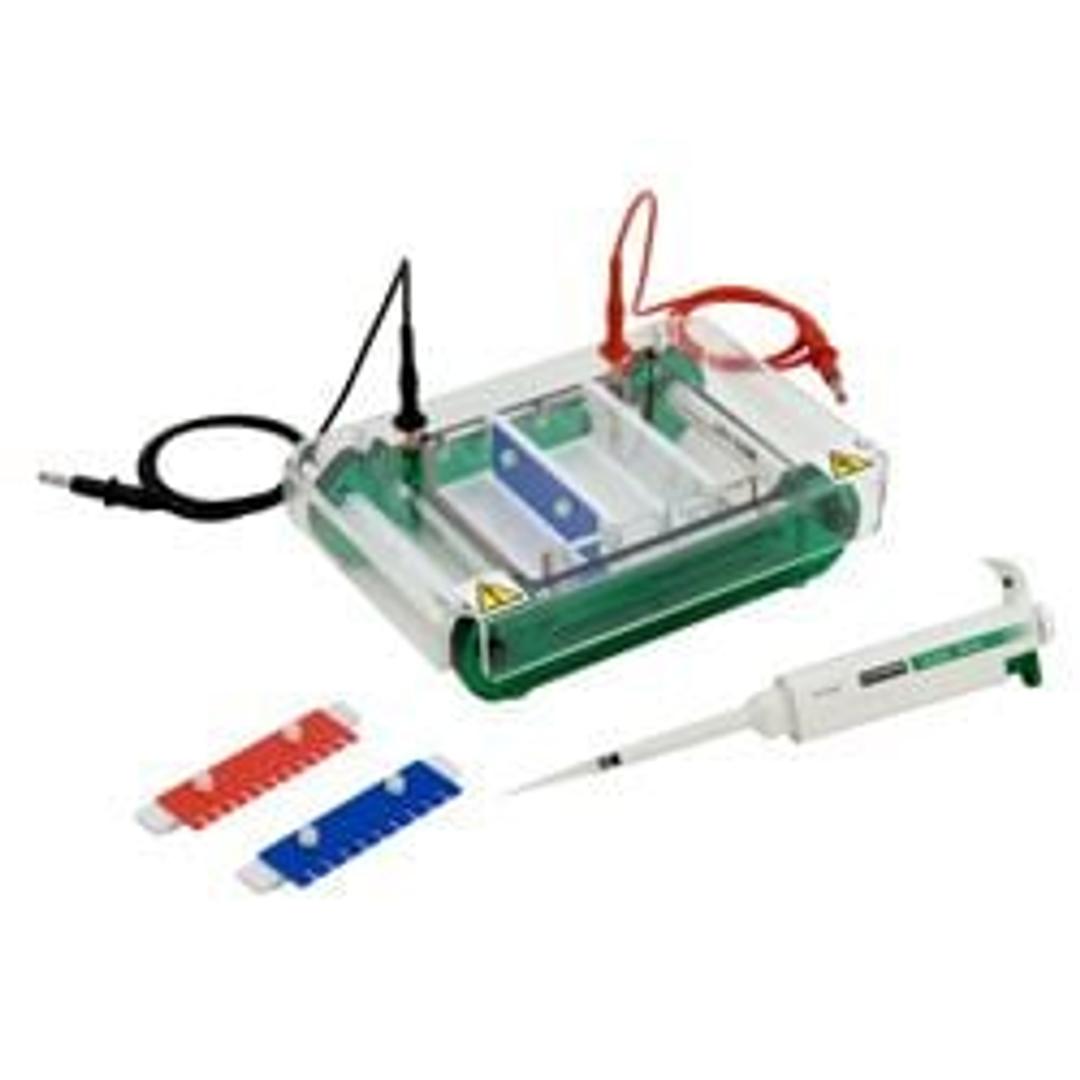

HU10 Mini-Plus Horizontal Unit

The HU10 mini-plus horizontal gel electrophoresis unit is ideal for routine preparatory and analytical electrophoresis techniques.

It has a maximum 80-sample throughput capacity and features a removable gel-casting tray with end gaskets that allow gels to be cast directly within the tank. The gel-casting tray is simply turned at 90° to the direction of electrophoresis, when the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set and is ready for loading, the gel-casting tray is then restored to its correct orientation in the direction of electrophoresis.


HU10 Mini-Plus Horizontal Unit Features:

• Four casting options - provide total flexibility in gel casting, either directly within the tank or externally when the tank is in use.
• Combs - colour-coded and heightadjustable - offer complete control over loading volume and well depth to a maximum 80-sample throughput.
• Four comb positions - at 2.5cm intervals along the tray for swift separation of multiple samples.
• Coloured loading strips - for easy well detection when loading.
• Compact tank - reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time.
• UV-transparent acrylic casting tray - allows the user to handle the gel on the transilluminator with minimum risk of exposure to hazardous ethidium bromide.
• Side handles - for safe and easy transportation around the laboratory.
