ibidi Stage Top Incubation System, with CO2 and O2 Control, for Live Cell Imaging
Easy setup directly on your microscope: perform live cell imaging in dishes, slides, or multiwell plates. The ibidi Stage Top Incubation Systems fit every standard inverted microscope and include CO 2 and O 2 control as well as actively controlled humidity. They are ideal for all live cell imaging applications and available for single slides and dishes as well as for multiwell plates.

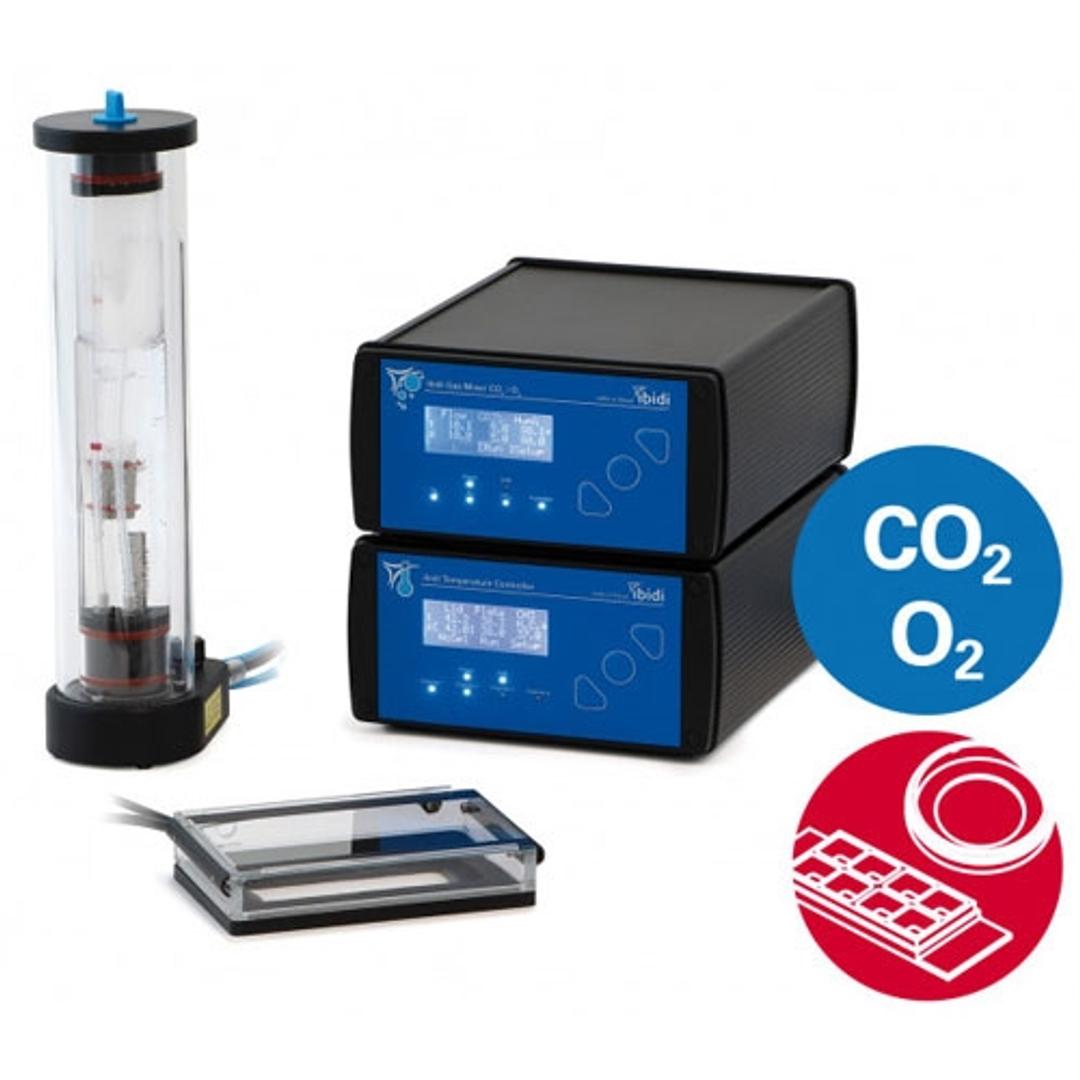

Stage Top Incubator with CO2/O2 Control

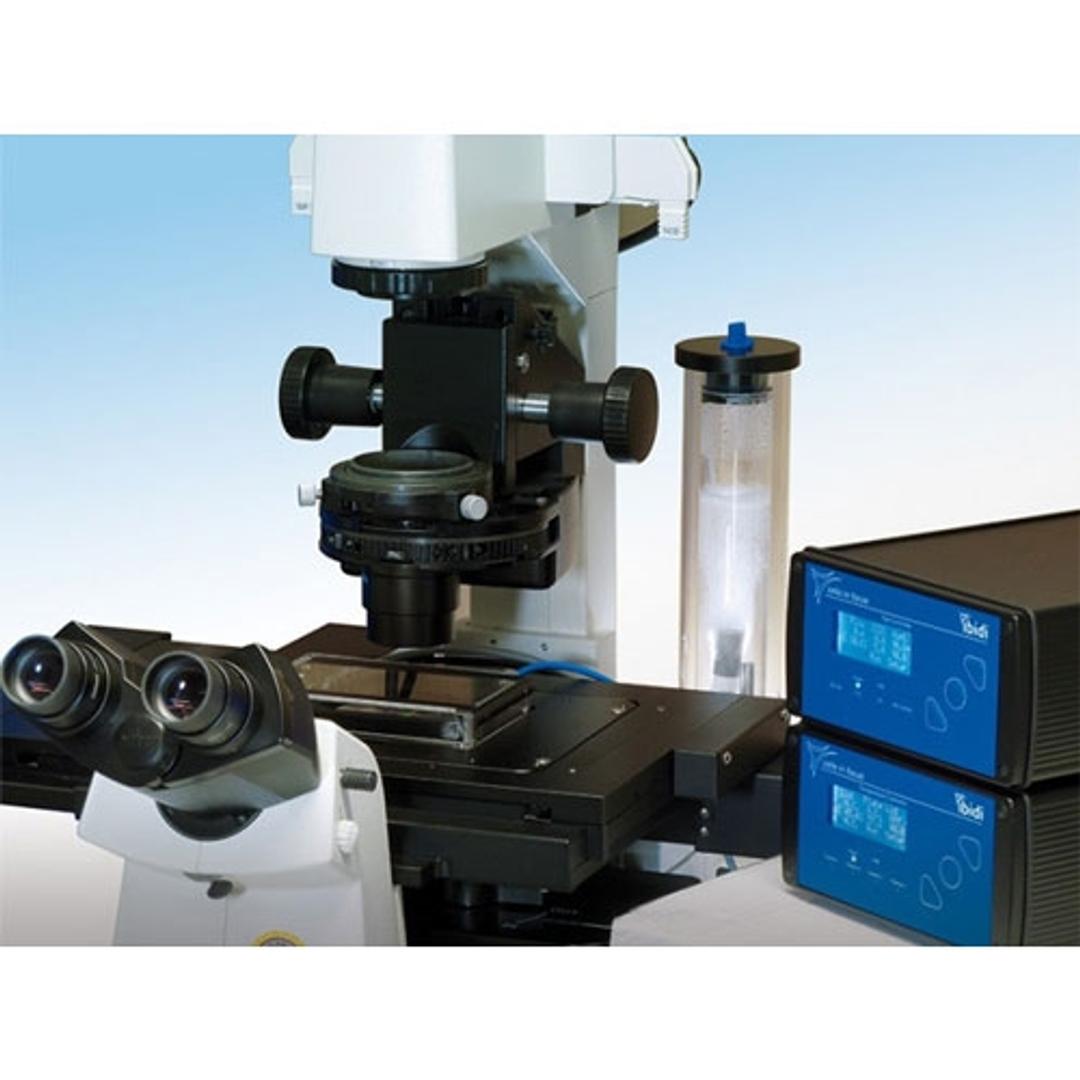

Incubation System on the Microscope
In Vivo-Like Conditions on a Microscope
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Stage Top Incubator for easy live cell imaging on every inverted microscope
- Physiologic conditions directly on the microscope
- Precise control of temperature, CO2, and O2
- Active humidity control
- Compatible with all inverted microscopes that have a multiwell plate holder or a K-Frame stage (160 mm x 110 mm)
Applications:
Live cell imaging that requires incubator conditions on the microscope, for example:
- Chemotaxis assays
- Angiogenesis assays
- Cell migration assays
- Wound healing assays
- Proliferation assays
- Cell culture under flow
High-resolution imaging applications that require extra focus stability, for example:
- TIRF
- Confocal microscopy
- DIC microscopy
ibidi’s Patented Humidity Control:
Cells react very sensitively to changes in medium components, such as salts and nutrients. Any evaporation from the cell culture vessels increases the substance concentration in the medium in an undefined way. To create reproducible experimental conditions, evaporation—caused by too low humidity—from cell culture vessels during live cell imaging experiments should be absolutely avoided.
The ibidi Humidity Control ensures a constant and very high relative humidity (RH) level inside the ibidi Stage Top Incubator—identical to the conditions in standard cell culture incubators. This unique and patent-protected technology actively humidifies the gas mixture in a fast and reliable way before it enters the Stage Top Incubator.
Live Cell Imaging: Establish in Vivo-Like Conditions on the Microscope
Cells react sensitively to changes in their environment. Factors such as temperature, humidity, and CO2/O2 levels significantly influence the outcome of cell culture assays. It is therefore crucial to precisely maintain the optimal conditions throughout the whole live cell imaging experiment.
The ibidi Stage Top Incubation Systems are available for one slide/dish (Universal Fit) and for multiwell plates (K-Frame). They allow for the accurate and reliable control of temperature, CO2 and O2 concentration, and relative humidity during short-term and long-term live cell imaging assays on any inverted microscope.

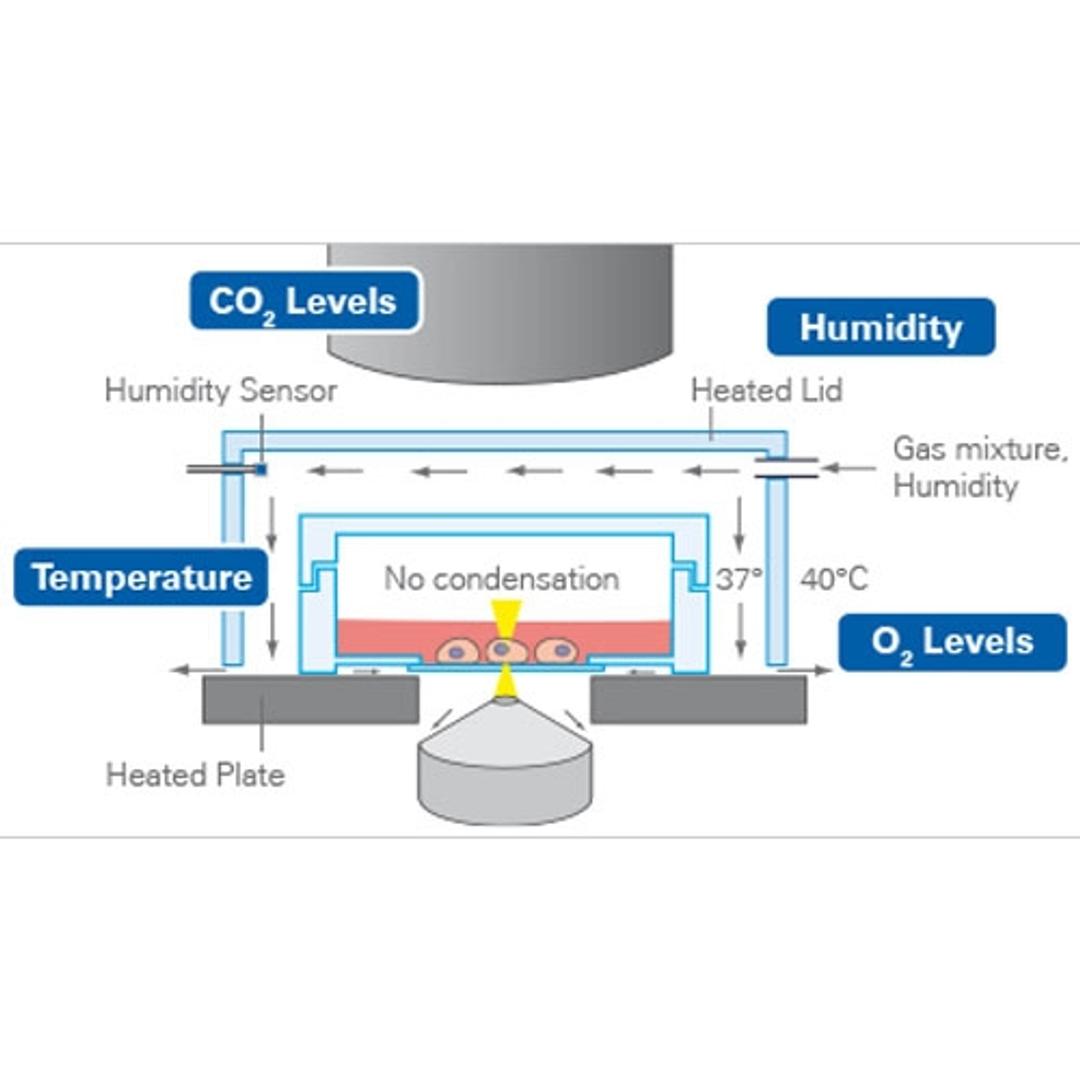

Brilliant Images Without Condensation
The Heated Lid of the ibidi Heating System reliably prevents condensation, which can reduce the imaging quality during live cell microscopy.
By heating the lid to a temperature higher than the plate, a vertical temperature gradient is created. This gradient, plus the humidity control, prevent lid condensation of the cell culture dish. The required temperature of the cell environment is constantly maintained.
