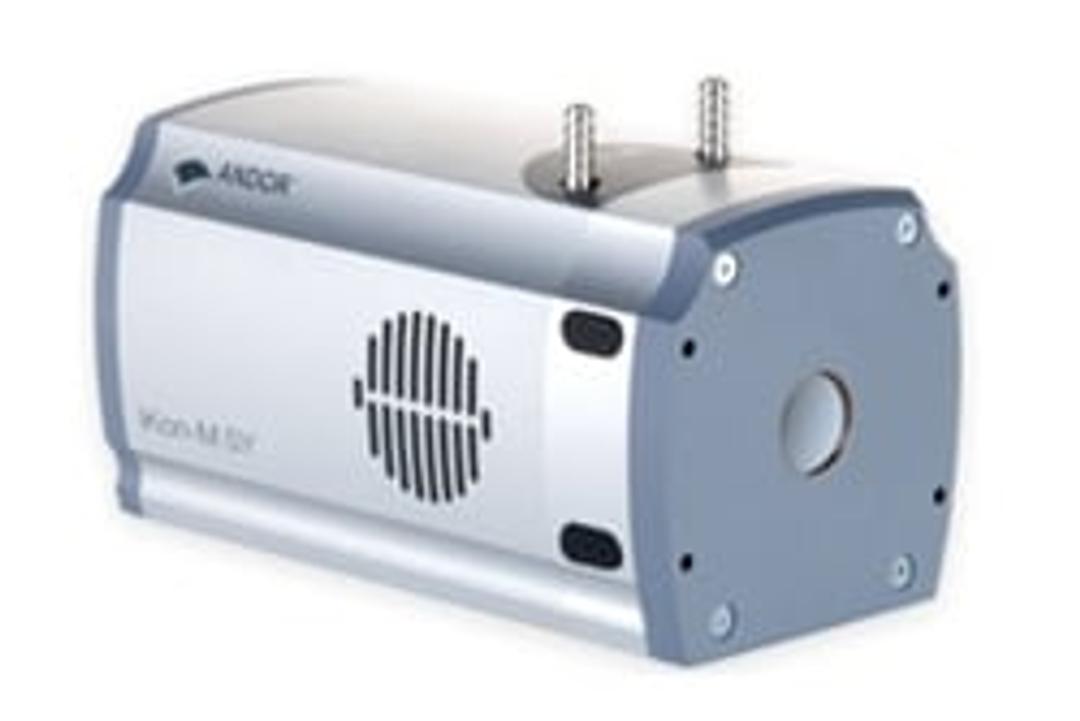

iKon-M SY

Andor’s standalone USB 2.0 iKon-M SY 934 series features a high-QE, back-illuminated sensor for direct X-ray detection. A convenient Berylium foil window blocks visible wavelengths with minimal ‘Beam Hardening’ of X-ray energies giving a direct detection energy range from 20keV.This 1024 x 1024 sensor array with 13 x 13 μm pixels offers high dynamic range and high spatial resolution. Seamless software selection of a range of…

Request Pricing
Oxford Instruments Andor

Receive your quote directly from the manufacturer.

Ease of Use
After Sales Service
Value for Money
Write your own review

Andor’s standalone USB 2.0 iKon-M SY 934 series features a high-QE, back-illuminated sensor for direct X-ray detection.

A convenient Berylium foil window blocks visible wavelengths with minimal ‘Beam Hardening’ of X-ray energies giving a direct detection energy range from < 2.5 keV to > 20keV.

This 1024 x 1024 sensor array with 13 x 13 μm pixels offers high dynamic range and high spatial resolution. Seamless software selection of a range of kHz and Multi-MHz readout speeds provide exceptionally low readout noise and faster frame rates respectively.

Variable readout rates enable data readout at up to 5 Megahertz, through the plug and play USB interface.

The camera maintains cooling options down to -100°C, resulting in negligible dark current and provides unrivalled performance for imaging applications. The camera comes with Andor’s UltraVac™ technology providing a worry free 5 year vacuum warranty as standard.


iKon-M SY Features:

  • UltraVac™ - 5 Year Warranty. Proprietary and proven vacuum process, critical for sustained vacuum integrity, sensor protection and unequalled cooling, year after year.
  • 'Standalone’ Be Window - 200 µm Berylium window as standard
  • 13 x 13 µm pixel size - Optimal balance of dynamic range and resolution
  • Ultra-low noise readout - Intelligent low-noise electronics offer the most ‘silent’ system noise available
  • Multi-Megahertz pixel readout - High frame rates achievable (5 MHz in visualization mode, 50 kHz for the highest sensitivity and signal-to-noise ratio)
  • USB 2.0 connection - USB plug and play – no controller box
  • Enhanced baseline clamp - Quantitative accuracy of dynamic measurements.
  • Cropped sensor mode - Specialized acquisition mode for continuous imaging with fast temporal resolution
  • Integrated in EPICS - Platform is fully integrated into the EPICS control software
