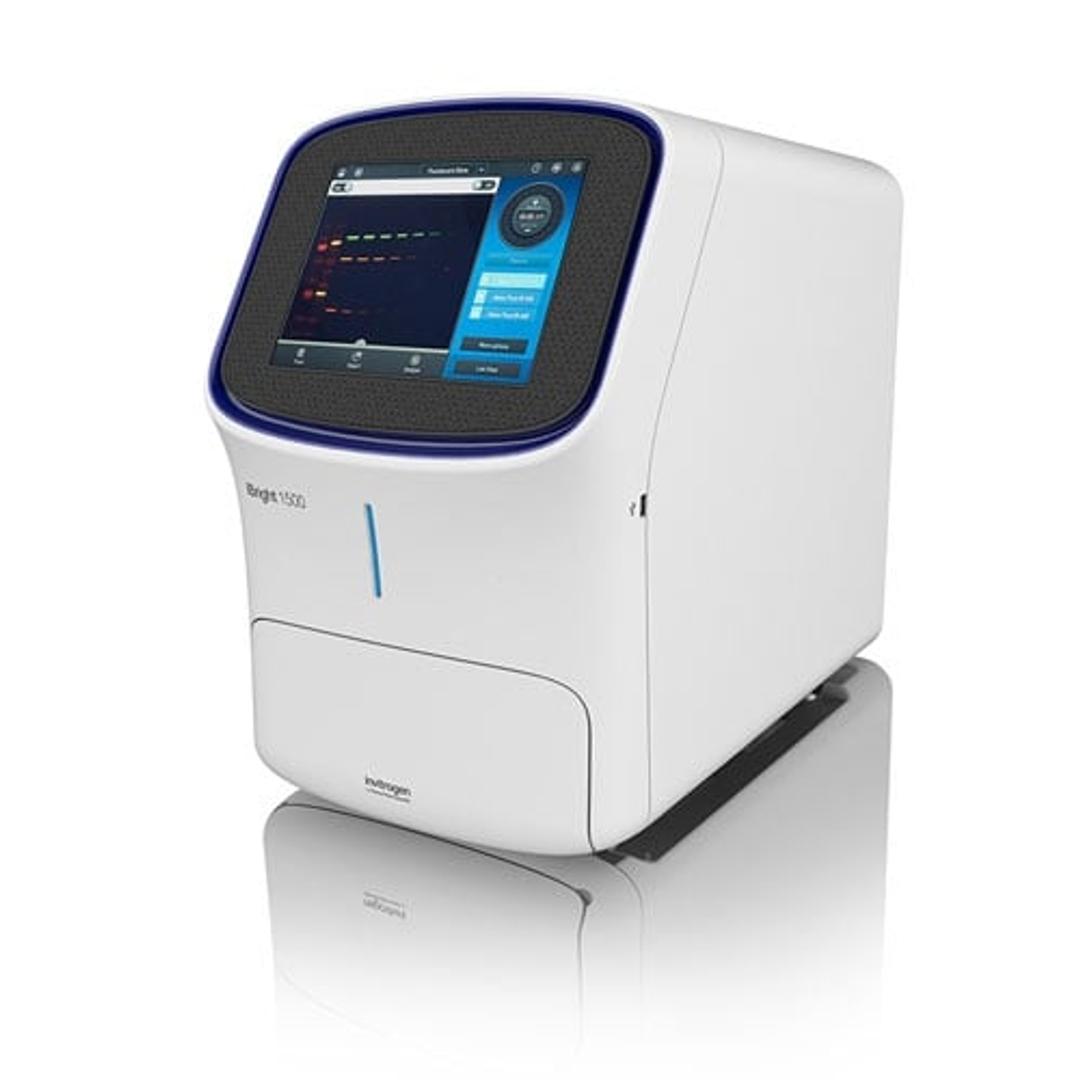

Invitrogen™ iBright™ FL1500 Imaging System
The Invitrogen™ iBright™ FL1500 Imaging System is the premier model of the iBright Imaging Systems family, offering maximum application support including fluorescent western blot imaging with up to 4 fluorophores at a time.
Protein blot imaging system
This machine is very reliable and generates reproducible results, sensitive and saves money on antibodies.
Review Date: 29 Sept 2022 | Thermo Fisher Scientific
Western blotting imaging analysis
Really good instrument that can both analyze western blotting gel and membranes using fluorescence and chemoluminescence, even at the same time! Analysis of the protein quantification is made easier and can be done using the total protein method. The iBright can also be used to read nucleic acid gel and also can be use for cloning, possibility to select one specific band directly on the machine. No computer attached made it an instrument that can be used for long time without being scared of updating the computer.
Review Date: 26 Mar 2021 | Thermo Fisher Scientific
Experience an easier time capturing and analyzing data from gels and western blots with Invitrogen™ iBright™ Imaging Systems. Designed with a streamlined, intuitive interface and workflows, iBright Imaging Systems are easy to use for researchers of all experience levels.
There are three models in the iBright Imaging Systems family: The base model Invitrogen™ iBright™ CL750 Imaging System, the mid-level model Invitrogen™ iBright™ CL1500 Imaging System, and the premier Invitrogen™ iBright™ FL1500 Imaging System.
The iBright FL1500 Imaging System has five imaging modes to support data capture from colorimetric-stained protein gels, fluorescent-stained protein gels, fluorescent-stained nucleic acid gels, chemiluminescent western blots, colorimetric stained membranes, colorimetric western blots, fluorescent western blots, and more.
Features of the iBright FL1500 Imaging System:
- 5 fluorescence channels, permitting up to 4-color fluorescent western blot multiplexing—expand the possibilities for studying multiple proteins in a single blot without the need to strip and reprobe
- 9.1 MP cooled CCD camera—high sensitivity and dynamic range to help enable the detection of subtle differences in samples
- Smart Exposure technology—provides rapid determination of optimal exposure time to help minimize the need to repeat exposures to acquire the desired signal
- Advanced automated features—automatic sample rotation, automatic zoom, automatic focus, and automatic onboard data analysis provide a smooth imaging experience
- Simple interface—clear layout of functions and features combined with a 12.1-inch capacitive touchscreen for a smooth imaging experience
- 22.5 x 18.0-cm field of view—large field of view for high-throughput imaging (image up to four mini or two midi blots at a time)
- Green LED-based transilluminator—effectively excite popular DNA dyes such as ethidium bromide and SYBR Green dyes with an alternative to UV-based transilluminators
- Flexible connectivity—export captured images via ethernet connection, Wi-Fi (with optional accessory), USB, or directly to our Connect cloud-based platform
- Multiple data analysis workflows—perform molecular weight estimation, densitometry, relative quantitation, and normalization via our on-instrument analysis software, or for more convenience and in-depth image adjustment and data analysis capabilities, we offer stand-alone Invitrogen™ iBright™ Analysis Software available in both desktop and cloud-based versions
- Compliance support—offered with a 21 CFR Part 11 compliance support software package to set up and control security, audit, and e-signature settings
