Large Format Motorised Stages

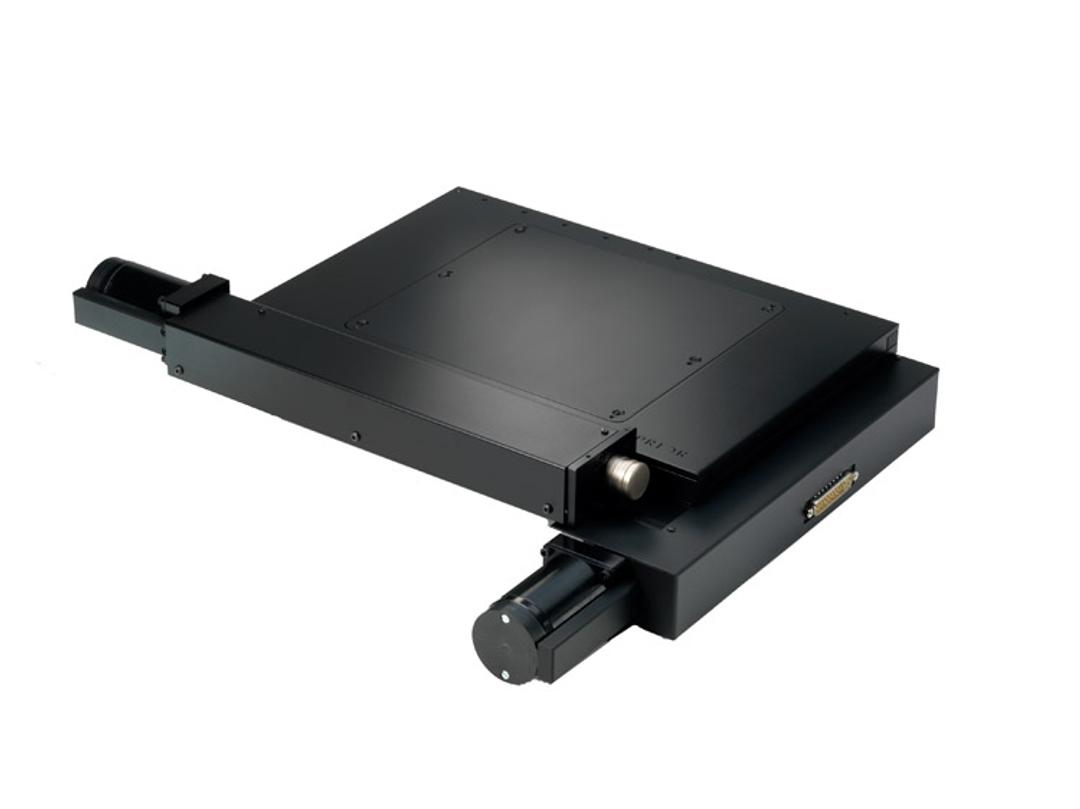

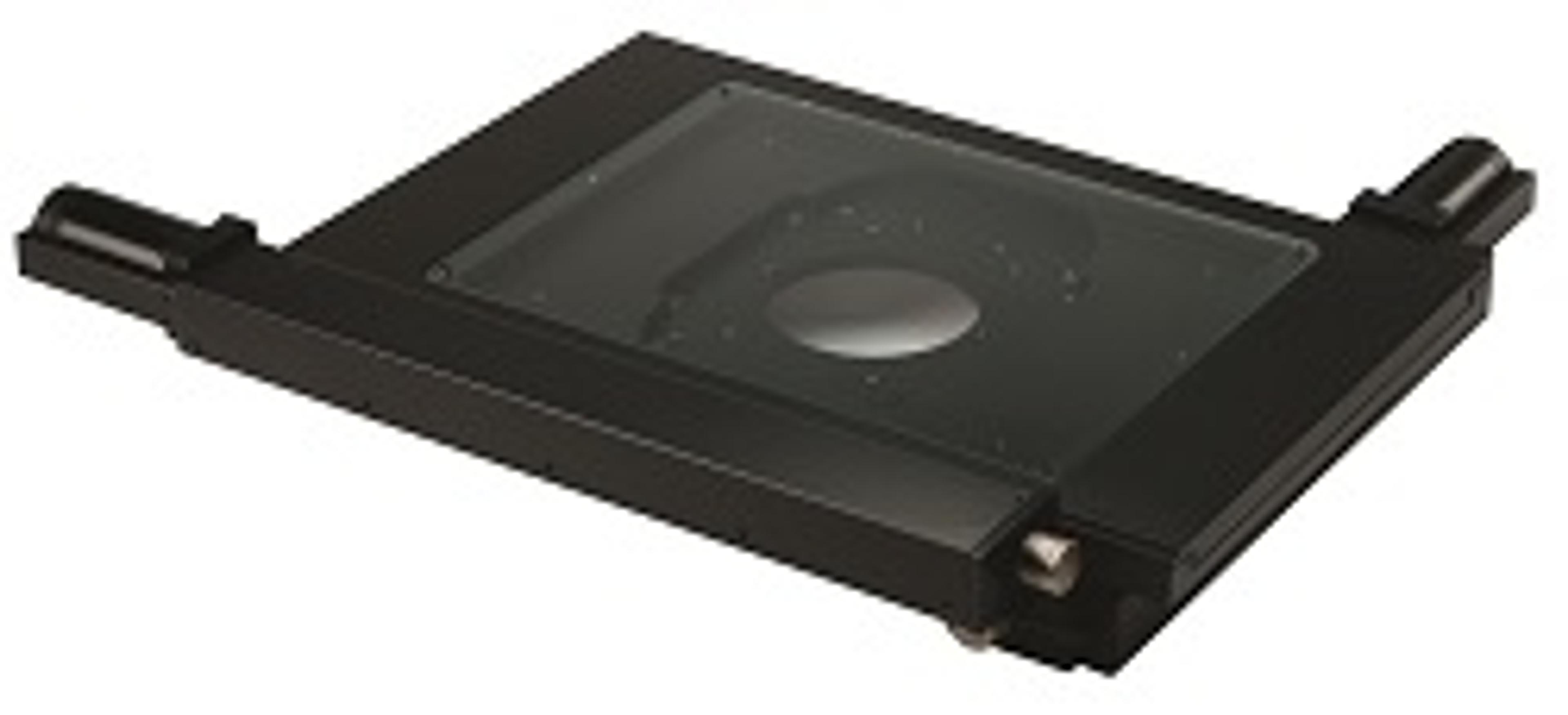

Large format motorised stage for upright microscopes
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The range of large format stages from Prior Scientific offers end users a powerful combination of high precision, convenience and a large format area for users of upright microscopes – ideal for imaging large tissue sections or other biological samples.
Using a motorised stage increases precision and allows the possibility of automation. The stages can accept linear encoders to further enhance precision . An S-shaped acceleration curve ensures smooth movement, reducing disruption to samples and patented Intelligent Scanning technology assures the accuracy of the stage. The stages can accept either a glass or aluminium plate.
FEATURES:
- Large travel sizes of either 154 x 154 mm, 256 x 256 mm or 302 x 302 mm
- Repeatability: -0.7 µm (154 x 154 mm stage)
- -0.4/0.3 µm (256 x 215 mm stage)
- 6/2 µm (302 x 302 mm stage)
- Minimum step size: 0.04
- Ball Screw: 2 mm
- Motor Type: 200 stepper motor
- Encoders: Option of 0.1 µm
- Controlled by the ProScan® system
