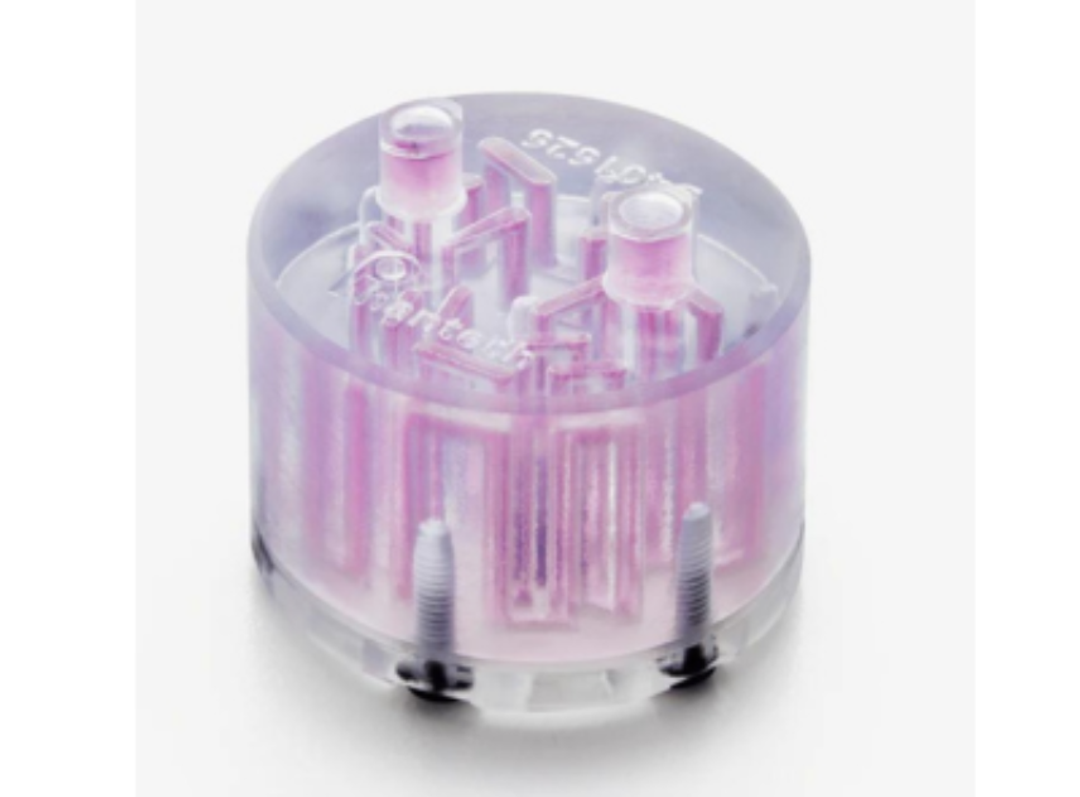

Micro Derenzo Pattern Phantoms

ScinticaPT-DERENZ0

"Derenzo" phantoms are used to characterize an imaging system's resolution by measuring the FWHM of hole patterns with varying diameters and spacing. Holes within a size group are spaced at exactly 2D (twice the diameter) apart. Our Derenzo phantoms feature six different hole sizes arranged in triangles around the center of phantom.

Scintica

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

"Derenzo" phantoms are used to characterize an imaging system's resolution by measuring the FWHM of hole patterns with varying diameters and spacing. Holes within a size group are spaced at exactly 2D (twice the diameter) apart. Our Derenzo phantoms feature six different hole sizes arranged in triangles around the center of phantom. These phantoms also feature our patented Linear-Filling Technology, which greatly reduces the volume required to fill the phantoms, ensures even filling (no bubbles), and reduces the radiation exposure to the handler of the phantom. This is all while improving image quality by reducing noise.

  • Patented linear filling technology​
  • Easier to fill with less than 1 minute on average. Videos are provided for step-by-step guidance
